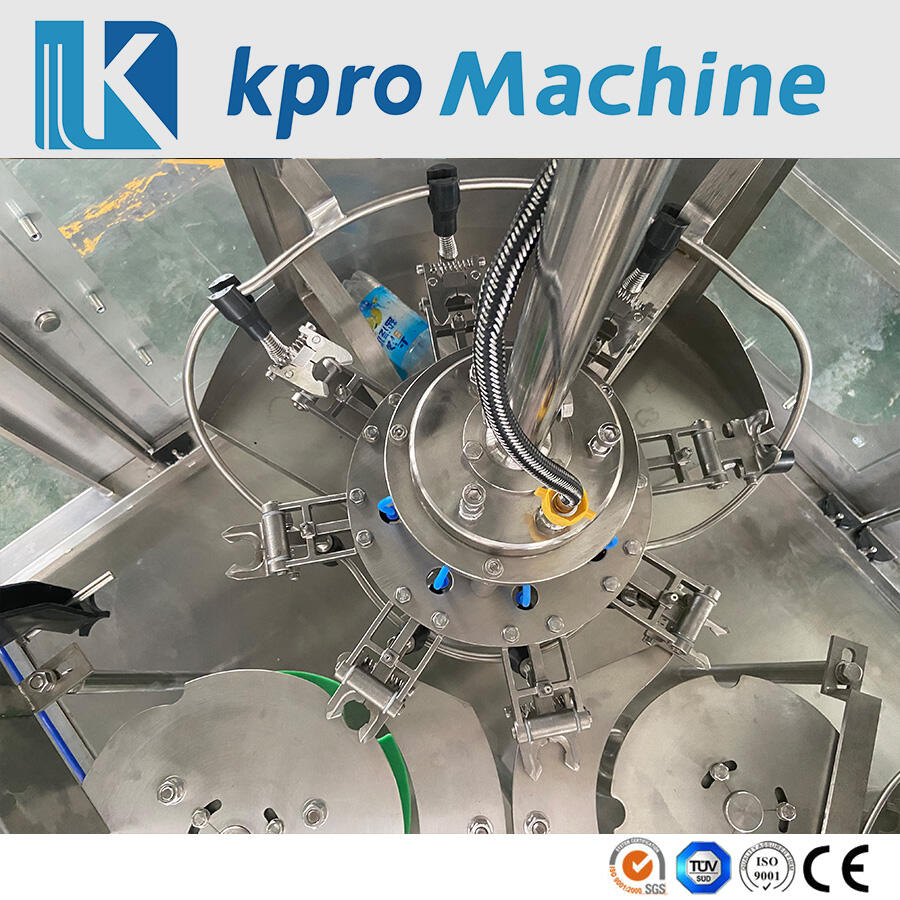

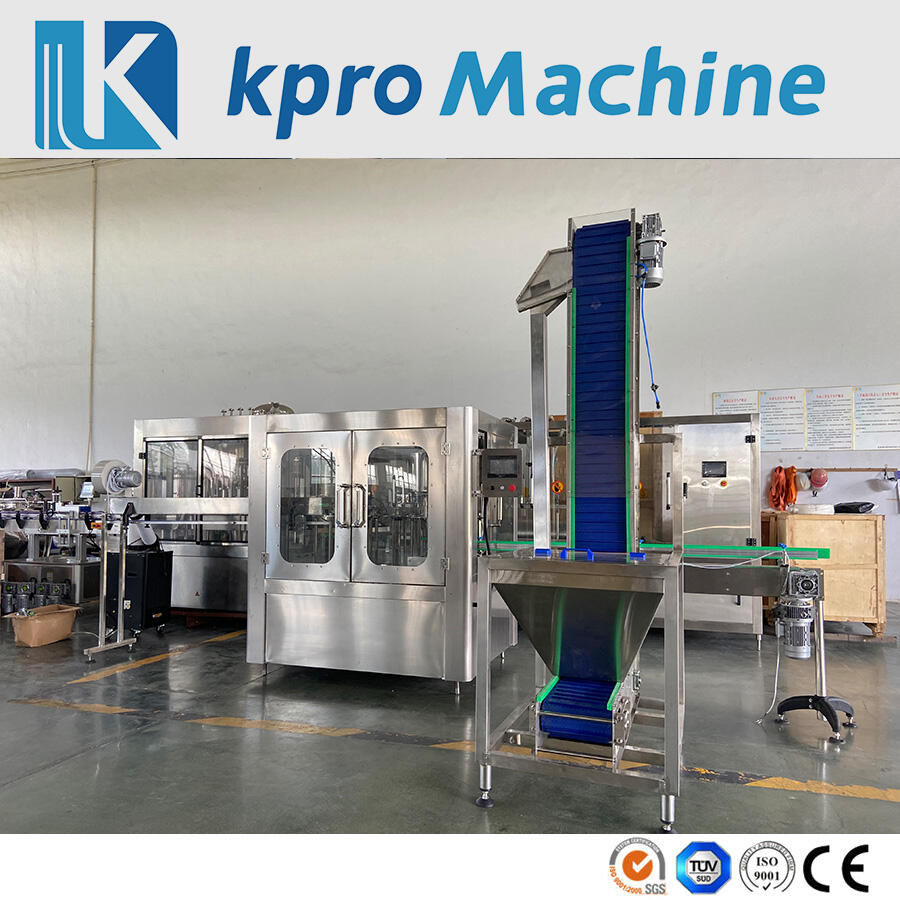

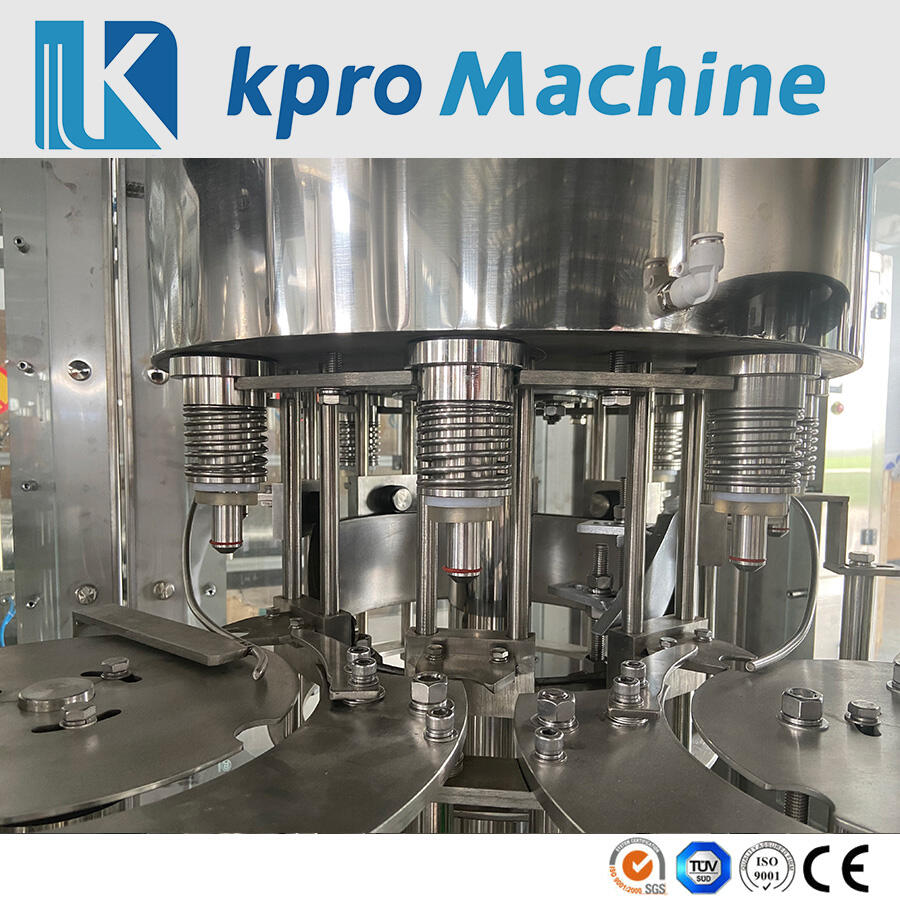

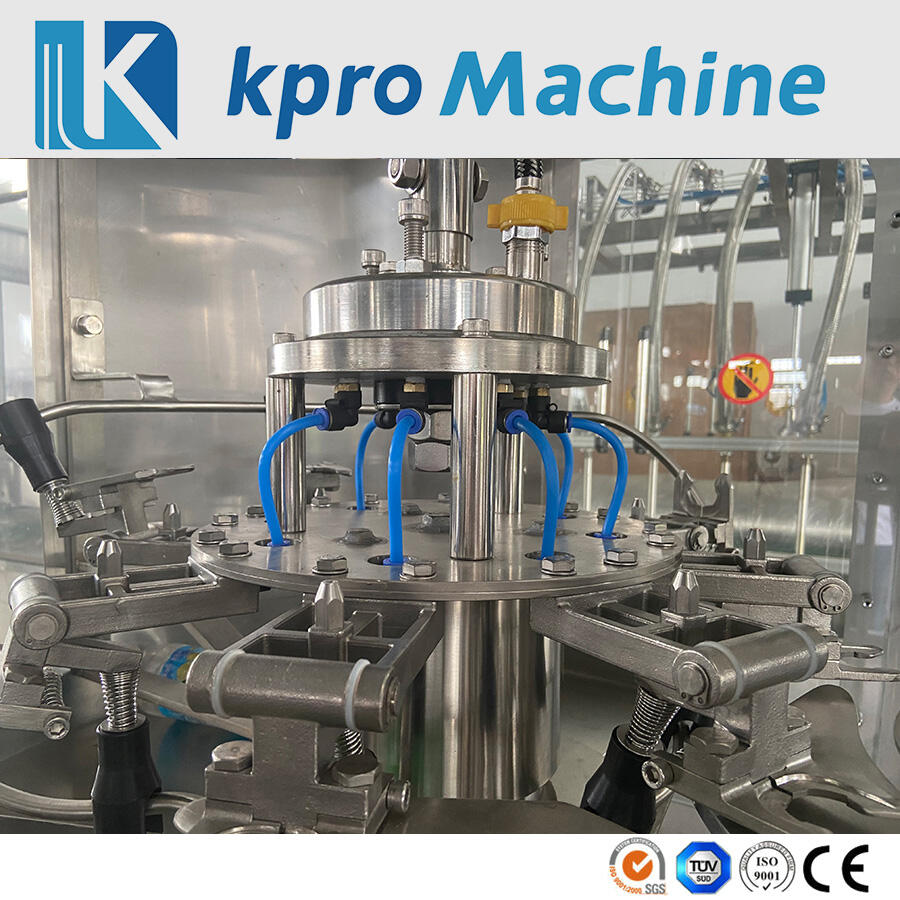

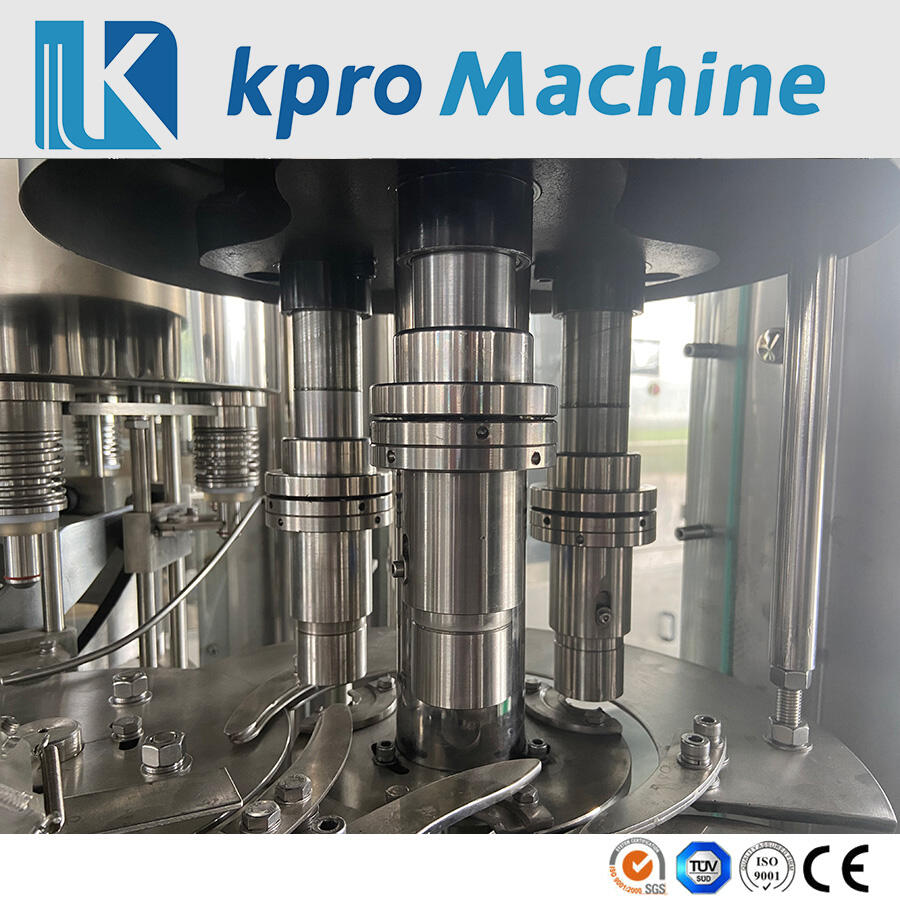

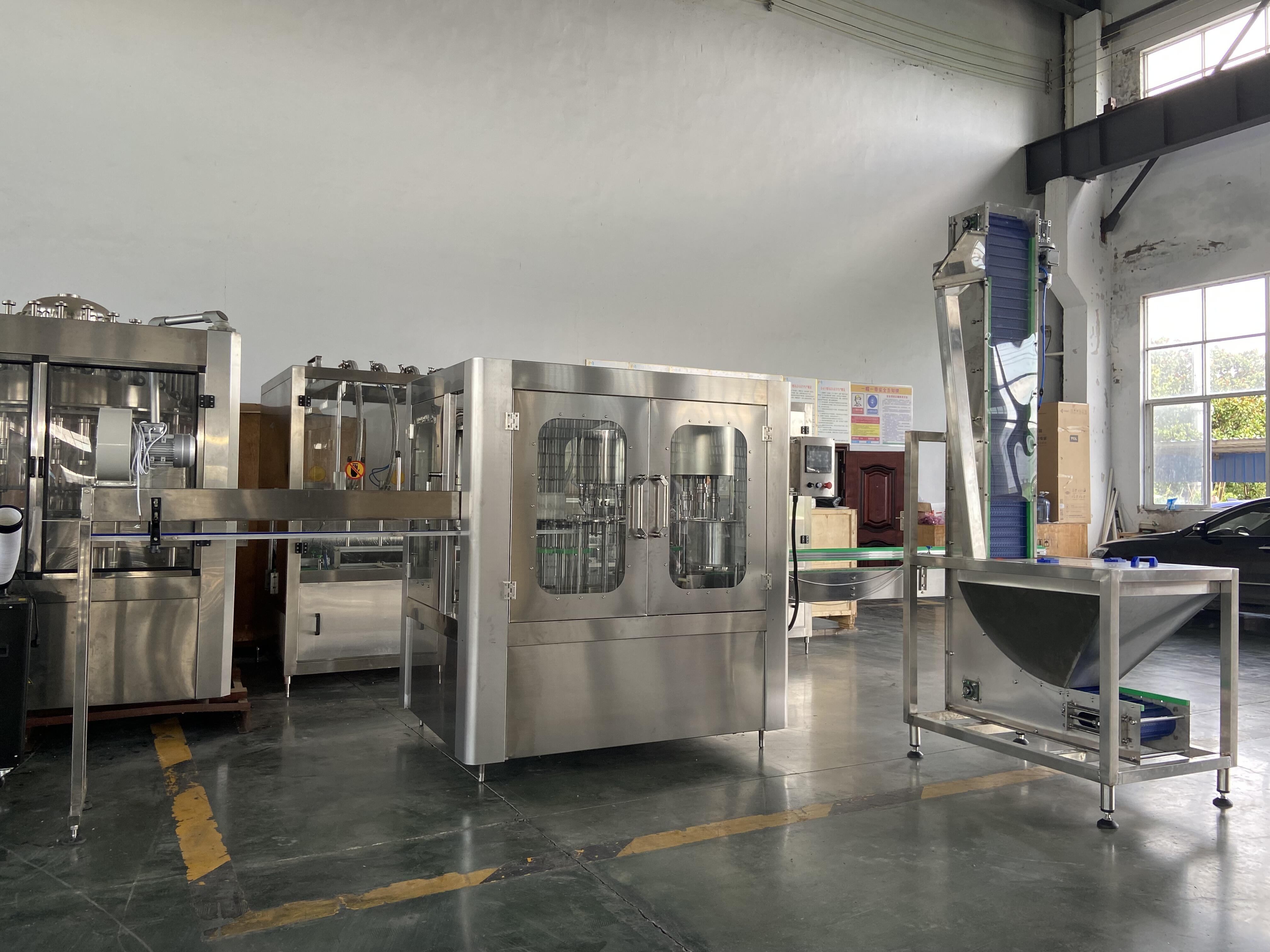

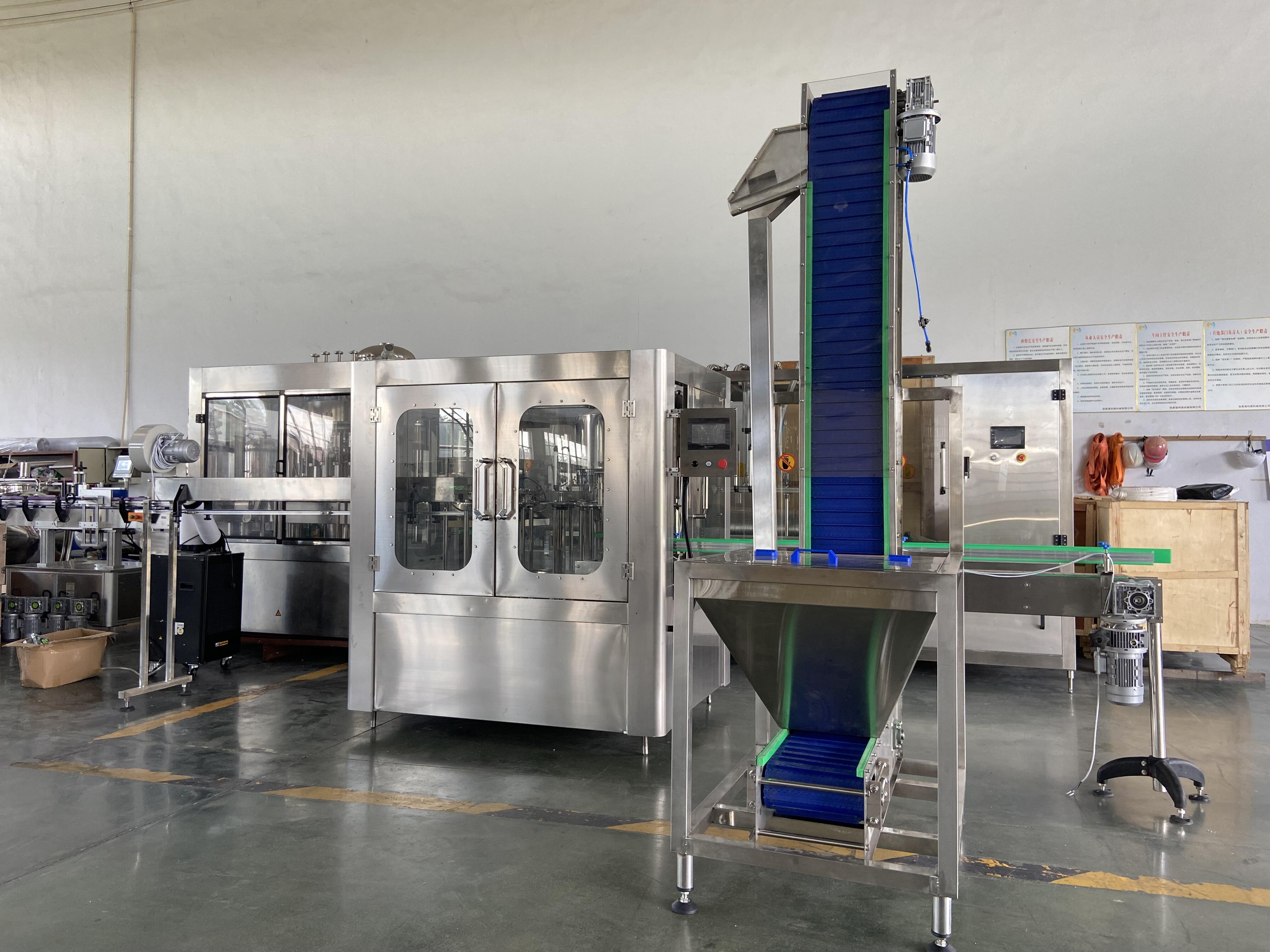

The filling machine is used to produce bottled mineral water, purified water, alcoholic beverage and other non-gas beverage. The filling machine adopts the bottleneck transmission technology to realize automatic bottle washing, filling, capping and other processes with a high degree of automation. The filling machine is suitable for the filling production of 200-2000 ml PET bottled water. It is automatically controlled according to the height of the material water level, and the process is fully automated.

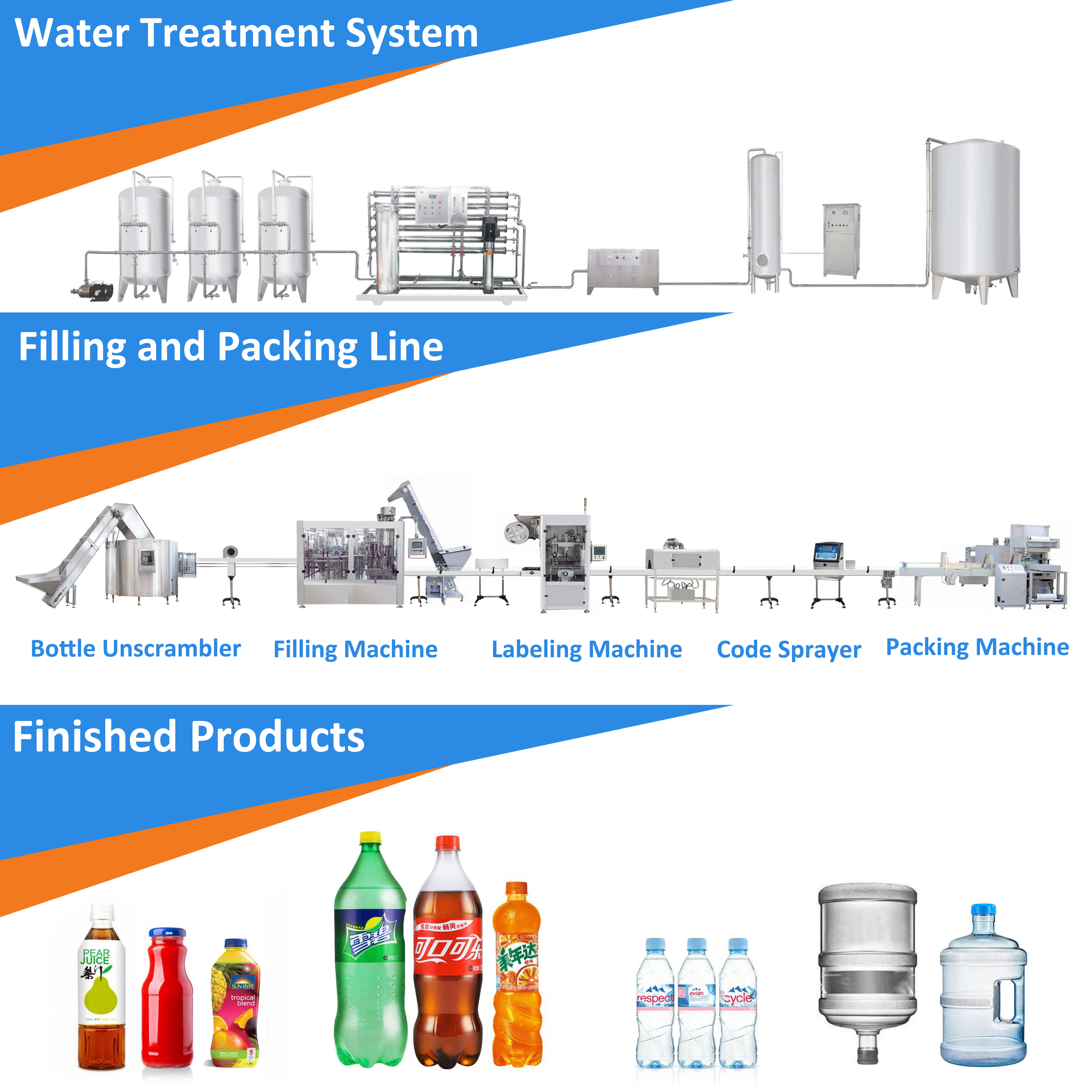

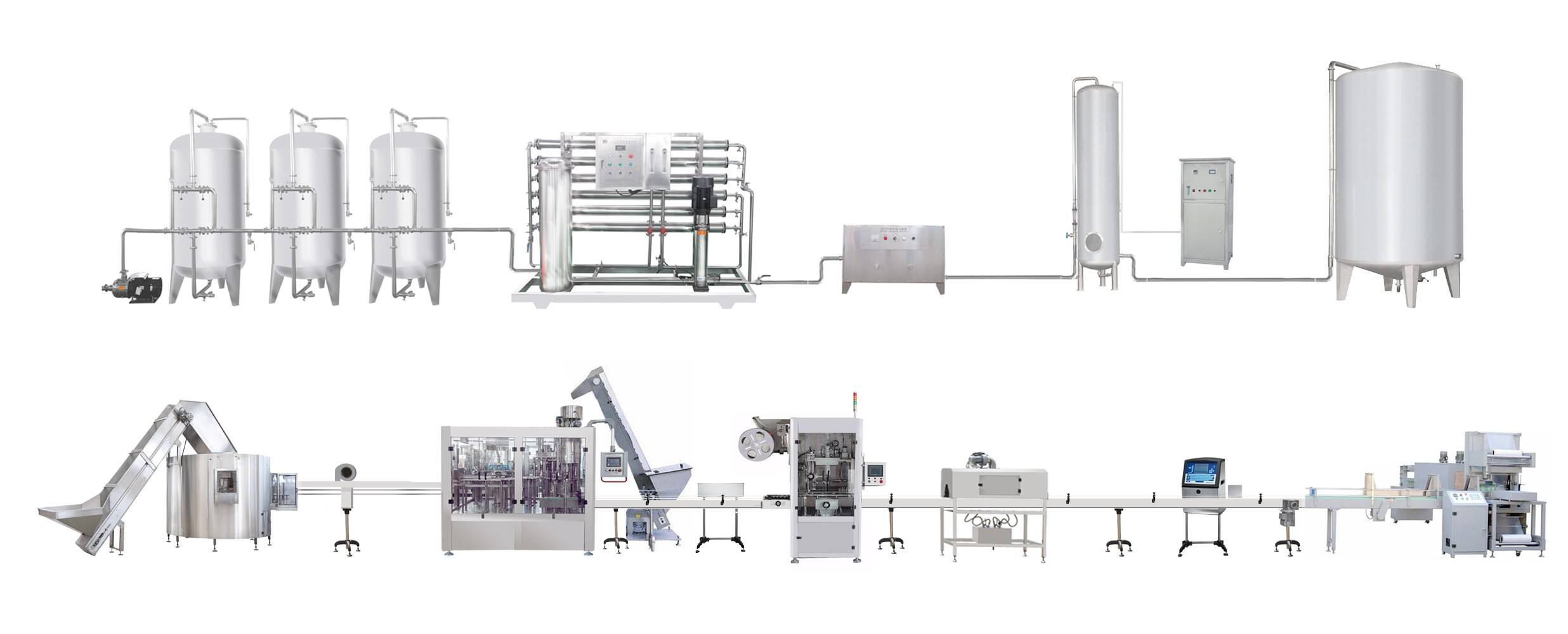

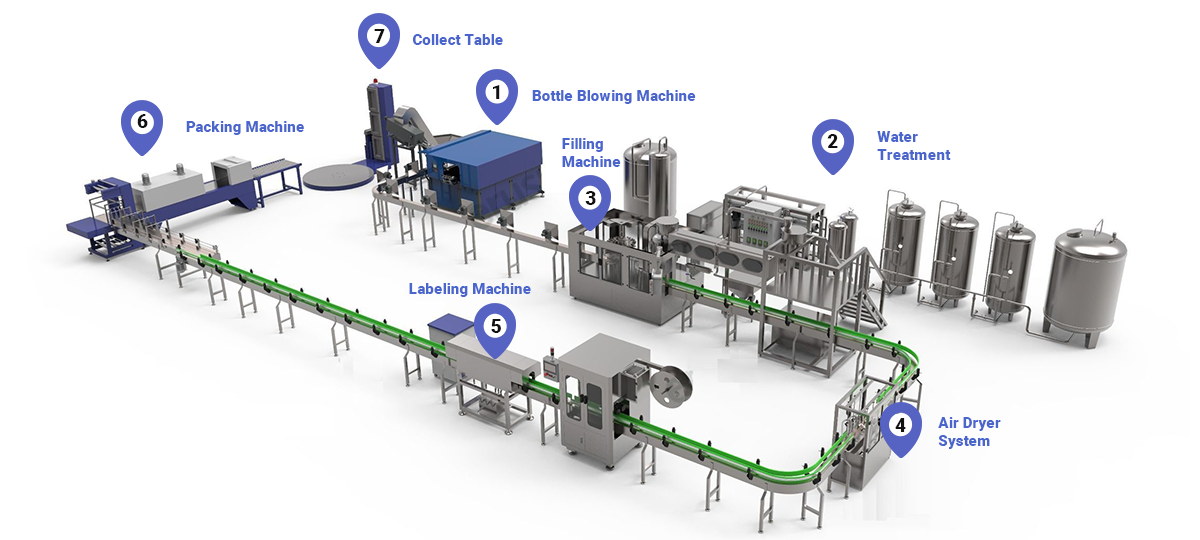

Water treatment system - RO system
Raw water tank→Water pump→Silica sand filter→Active carbon filter→Sodium ion exchanger → Precision filter→ Reverse Osmosis→UV-Sterilizer→Ozone Sterilizer →Finished Water tank
Filling and Packing Line

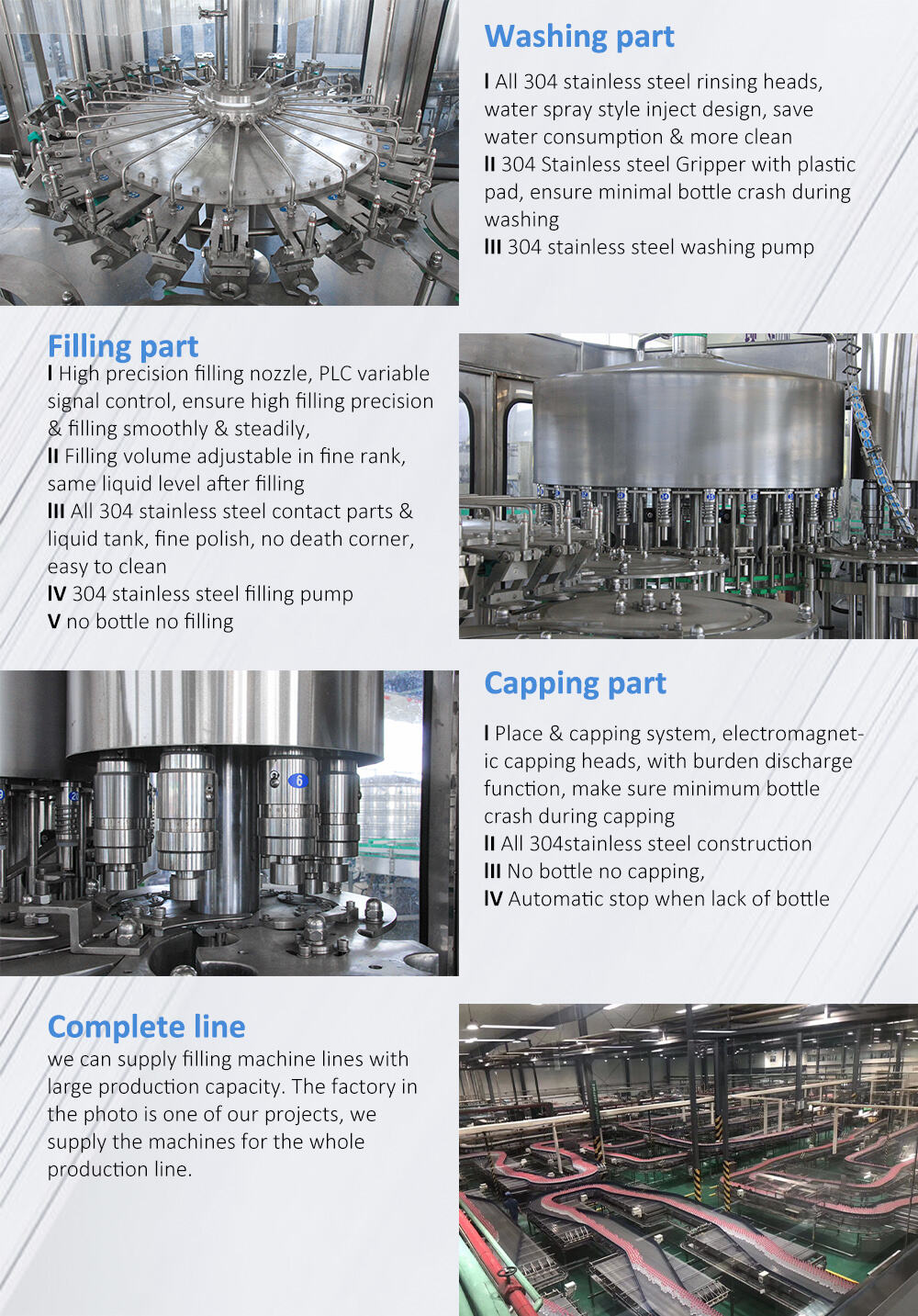

Washing,Filling,Capping → Conveyor →Light checker→ Labeling machine→Code sprayer→PE film packing machine→Stock
Bottle Making Machine
PET preforms → Bottle blow molding machine → Finished Bottles
1) The overall appearance is comfortable, and the window-type structure can be used to keep an eye on the movement of the machine. If there is a problem, the machine can be stopped and checked in time.
2) PLC controller, simple and easy to operate, designed for foreign friends, allowing customers to easily navigate.
3) The whole machine material is made of stainless steel 304/316, which is very strong and guarantees the quality.
4) High filling accuracy and small error, ensuring efficiency while ensuring efficiency.
5)Three-in-one filling, the finished product is short.
6) Fully automatic production, freeing hands, reducing labor required for production, saving costs and improving efficiency.
|
Model |
CGF8-8-3 |
CGF14-12-5 |
CGF18-18-6 |
CGF24-24-8 |
CGF32-32-10 |
CGF40-40-12 |
|
number of rinsing head |
8 |
14 |
18 |
24 |
32 |
40 |
|
number of filling head |
8 |
12 |
18 |
24 |
32 |
40 |
|
number of capping head |
3 |
4 |
6 |
8 |
10 |
12 |
|
rated production capacity(500ml)(BPH) |
1000-2000 |
3000-5000 |
6000-8000 |
8000-12000 |
12000-16000 |
16000-20000 |
|
installed capacity(KW) |
3 |
3.5 |
4 |
4.8 |
7.6 |
8.3 |
|
overall size(mm) L*W*H |
1900*1420*2000 |
2200*1600*2300 |
2450*1900*2300 |
2750*2180*2400 |
4000*2300*2300 |
4550*2650*2300 |
1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
2. Do you have any technical supports with your Plastic Bottle Water Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.
