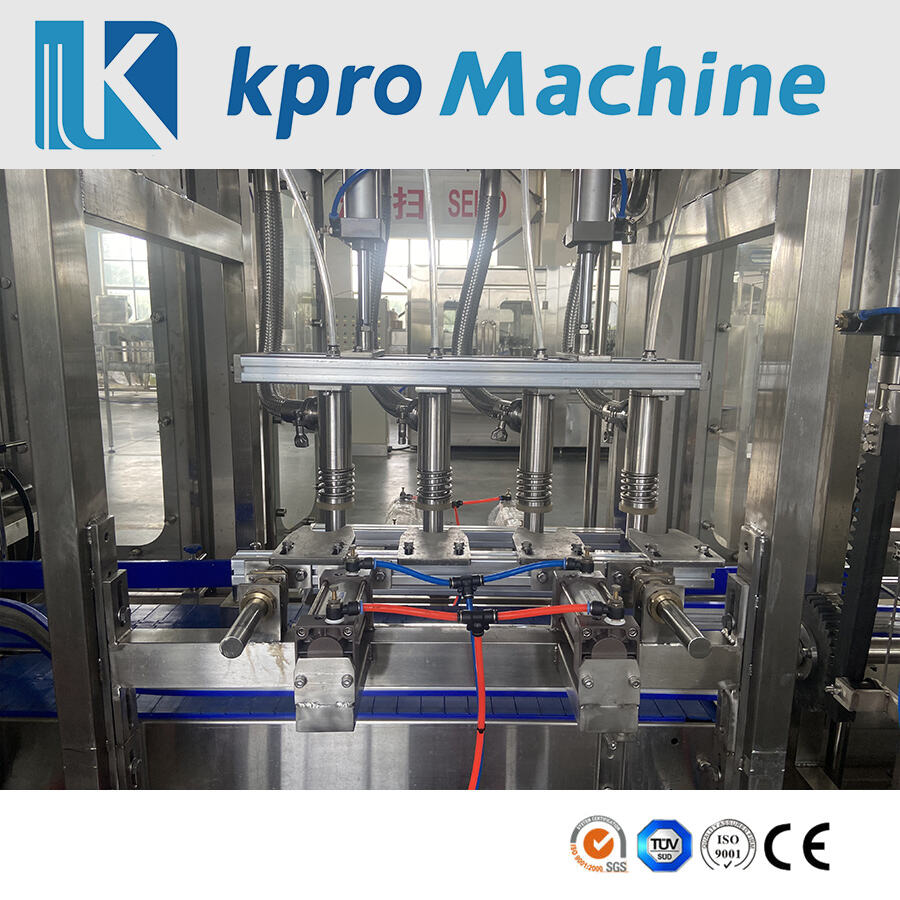

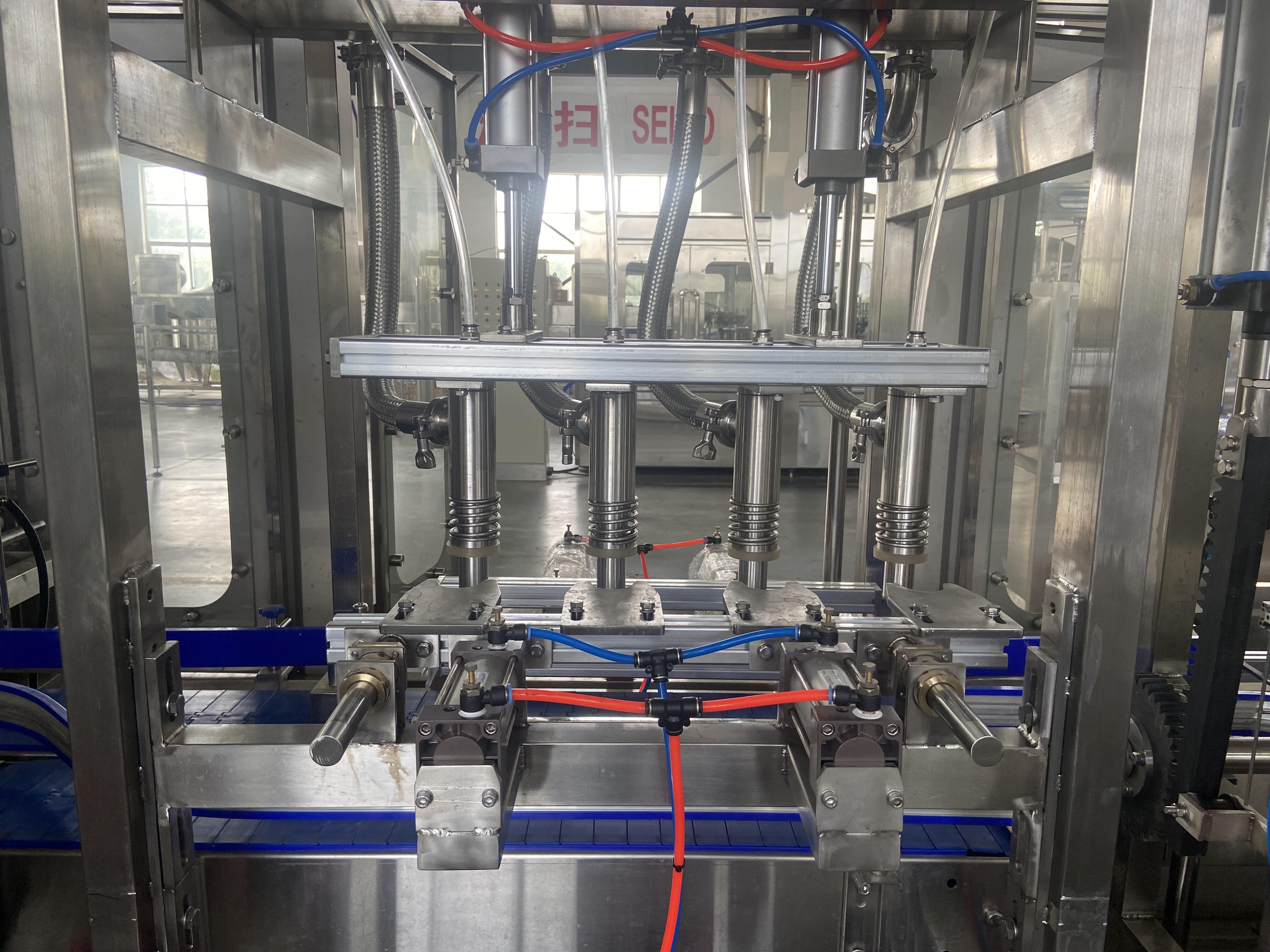

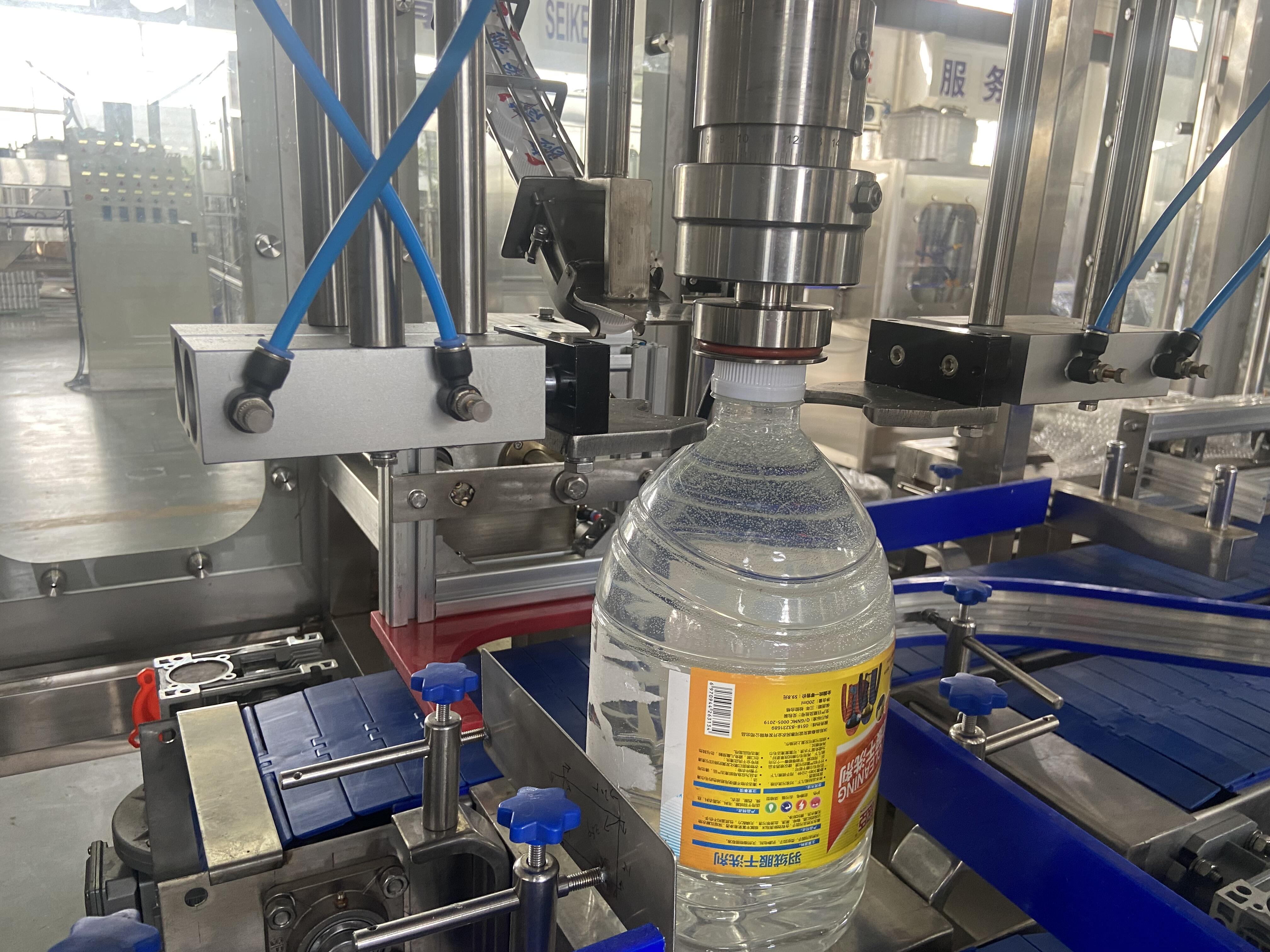

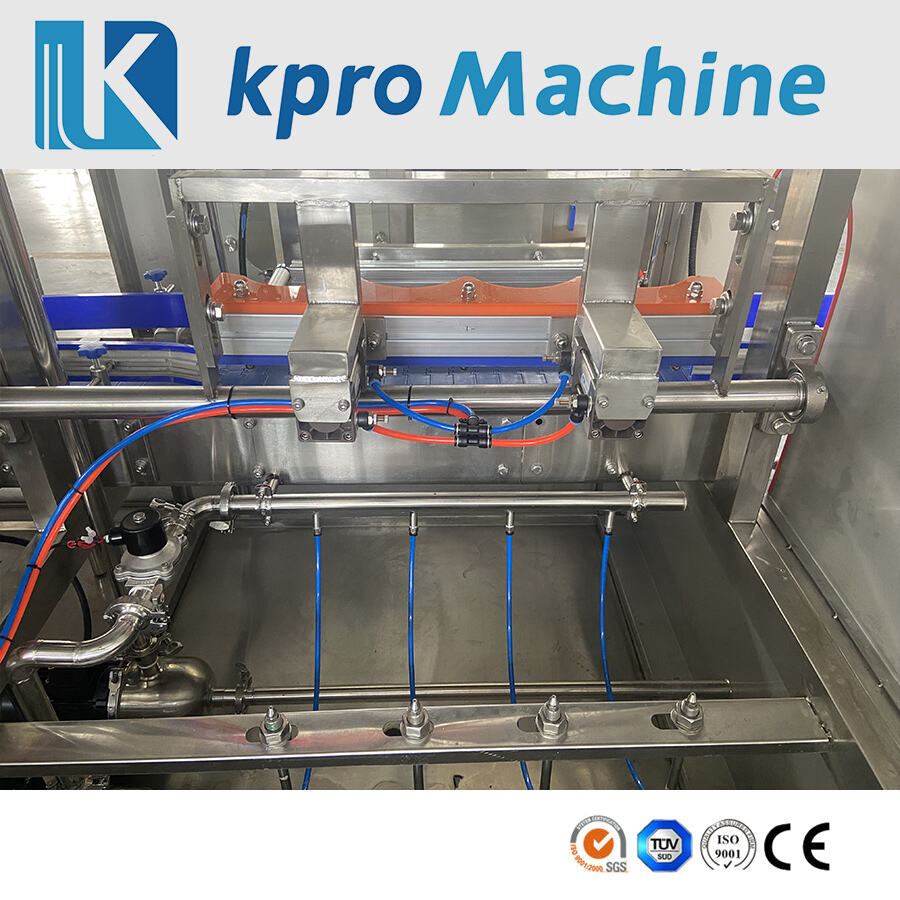

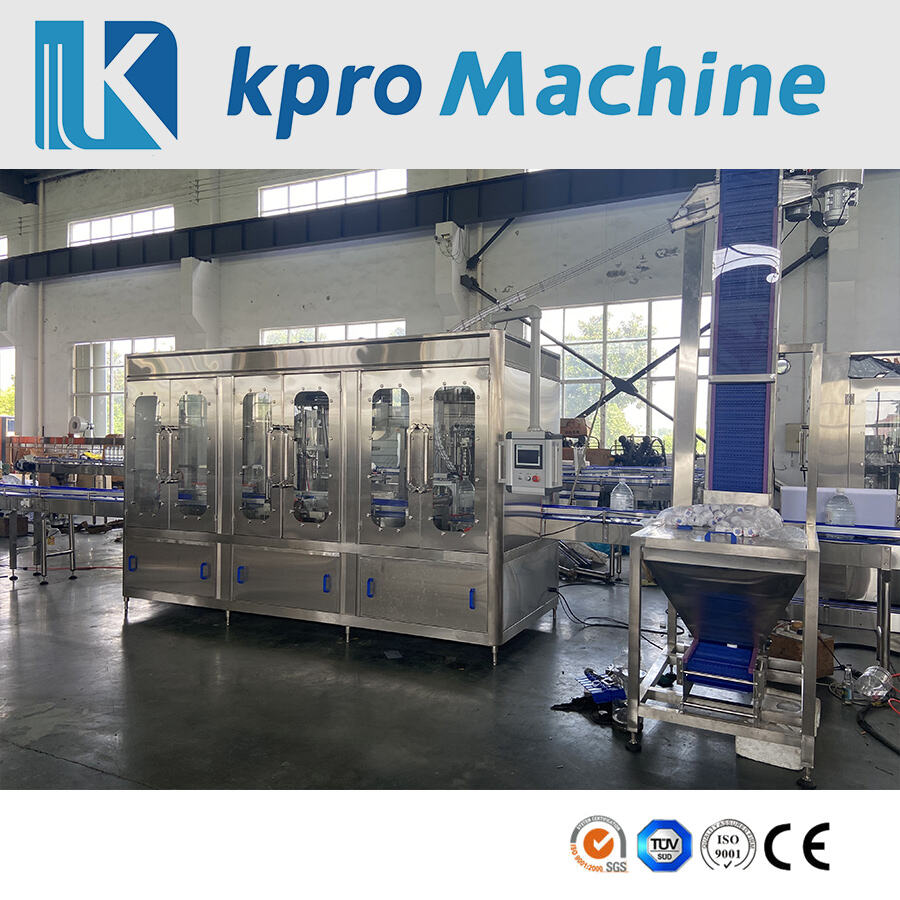

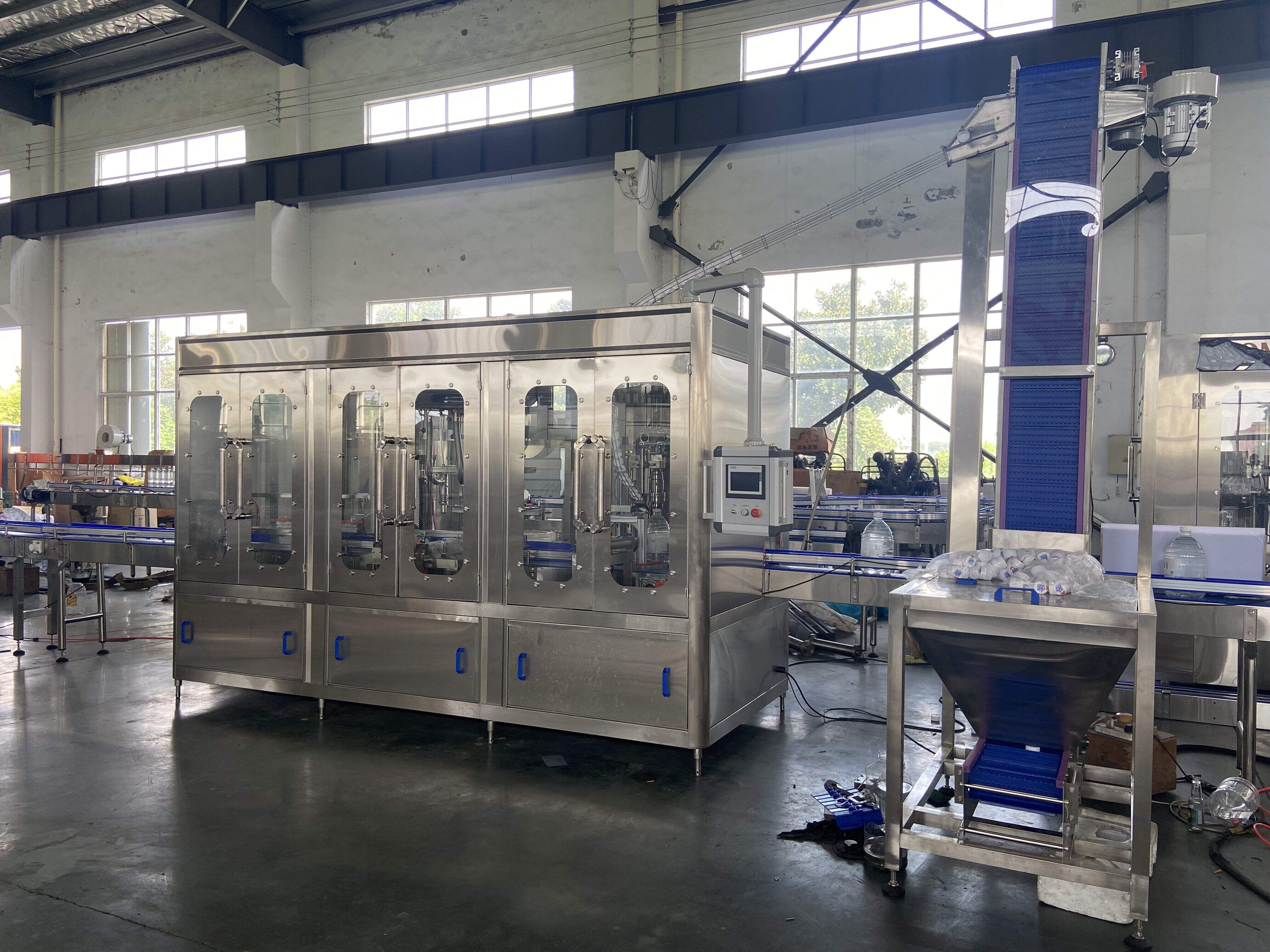

Washing, Filling and Sealing 3 in 1 Monoblock Drink Water Filling Machine For PET Bottle
This XGF Wash-filling-capping 3-in-1 unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

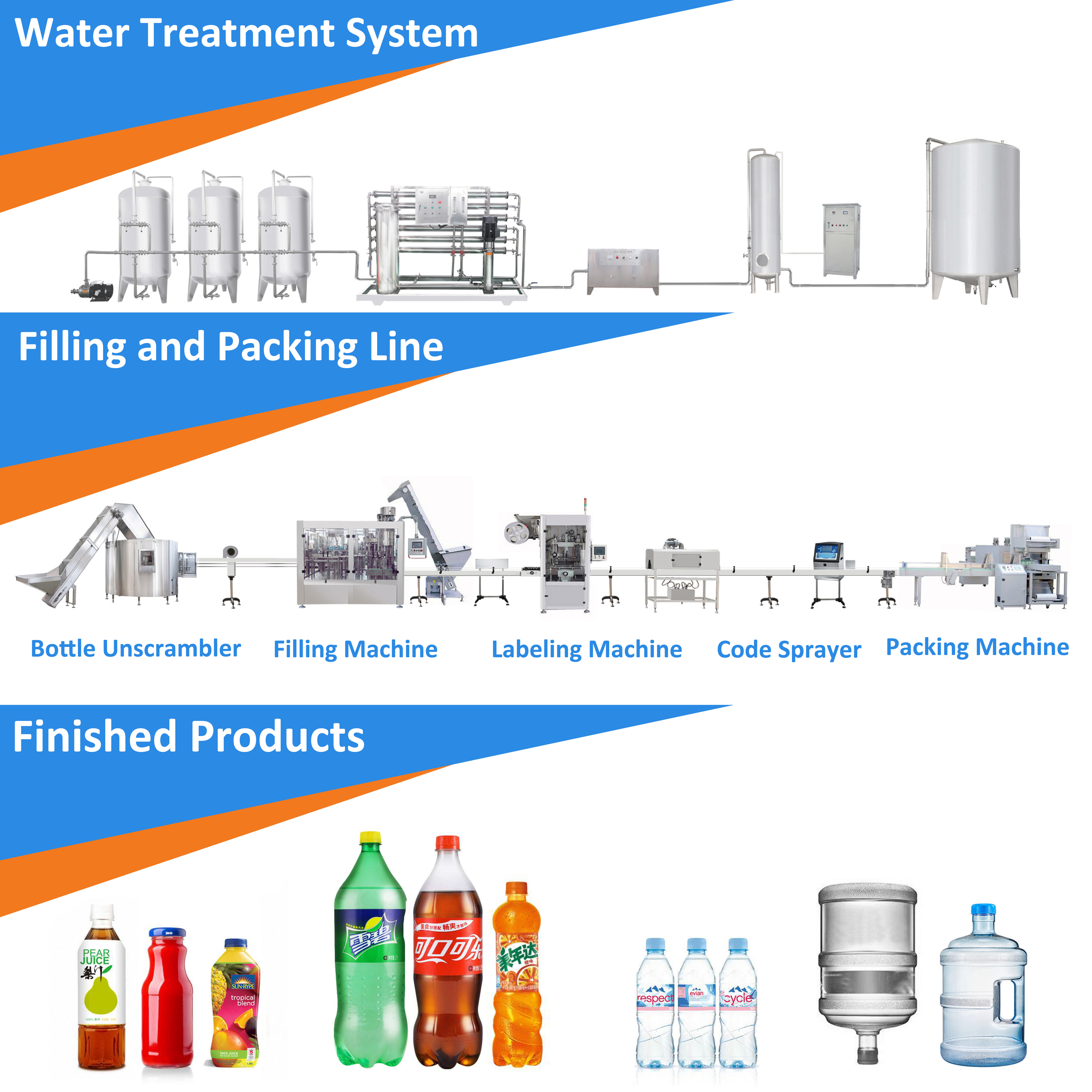

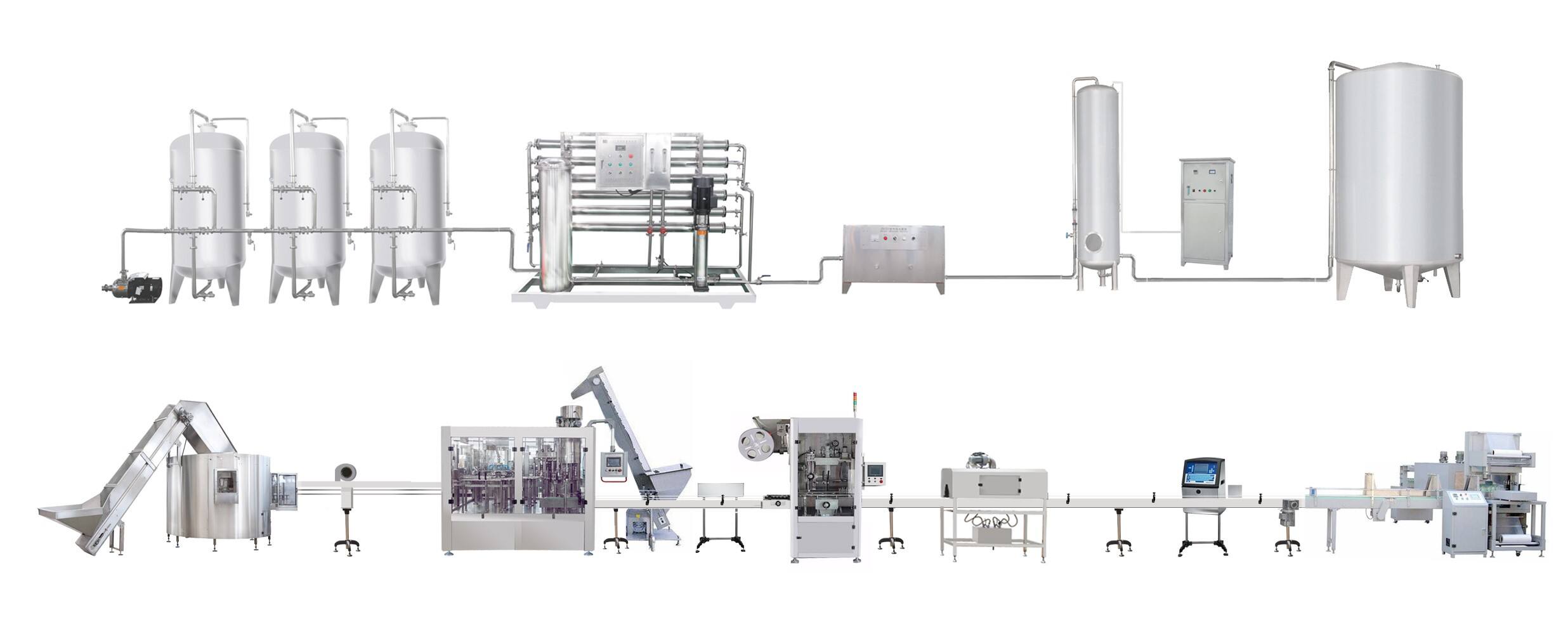

Water treatment system - RO system
Raw water tank→Water pump→Silica sand filter→Active carbon filter→Sodium ion exchanger → Precision filter→ Reverse Osmosis→UV-Sterilizer→Ozone Sterilizer →Finished Water tank

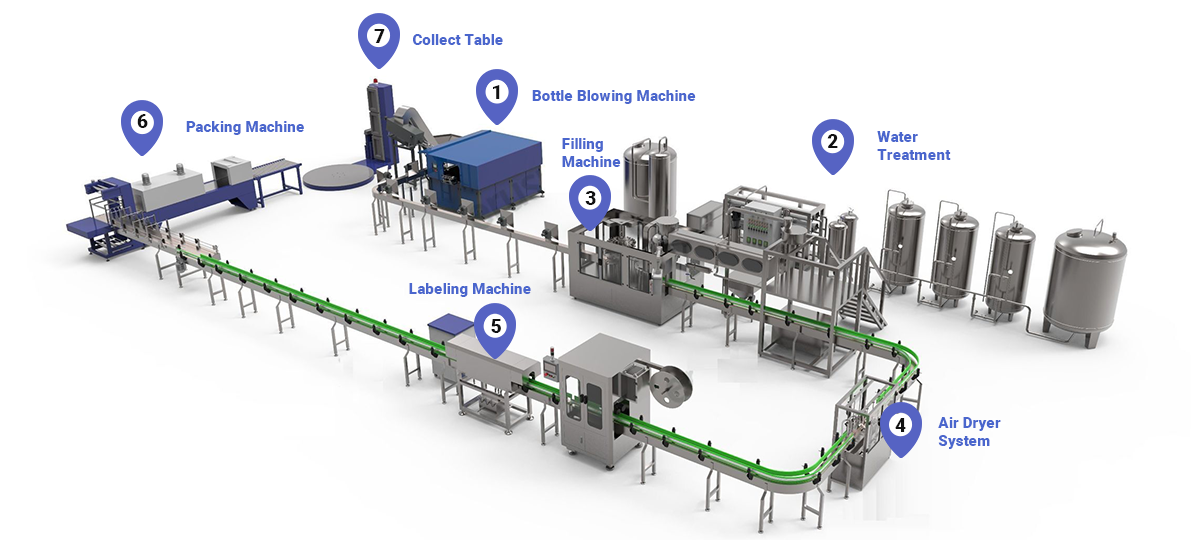

Filling and Packing Line
Washing,Filling,Capping → Conveyor →Light checker→ Labeling machine→Code sprayer→PE film packing machine→Stock
Bottle Making Machine
PET preforms → Bottle blow molding machine → Finished Bottles
1) The overall appearance is comfortable, and the window-type structure can be used to keep an eye on the movement of the machine. If there is a problem, the machine can be stopped and checked in time.
2) PLC controller, simple and easy to operate, designed for foreign friends, allowing customers to easily navigate.
3) The whole machine material is made of stainless steel 304/316, which is very strong and guarantees the quality.
4) High filling accuracy and small error, ensuring efficiency while ensuring efficiency.
5)Three-in-one filling, the finished product is short.
6) Fully automatic production, freeing hands, reducing labor required for production, saving costs and improving efficiency.
2025 NEW Mineral Water Pure Water Filling Machine
|
Model |
XGF4-4-1 |
XGF8-8-1 |
XGF9-9-4 |
XGF12-12-6 |
|
Capacity(5 Liter) |
500BPH |
1000BPH |
2000BPH |
3000BPH |
|
Washing Heads |
4 |
8 |
9 |
12 |
|
Filling Heads |
4 |
8 |
9 |
12 |
|
Capping Heads |
1 |
1 |
4 |
6 |
|
Suitable Bottle |
PET Bottle ,Plastic Bottle |
|||
|
Capacity of Bottle |
5-10L |
|||
|
Suitable Cap |
Plastic Screw Cap |
|||
|
Weight |
2500kg |
3000kg |
4000kg |
5000kg |
|
Main Motor Power |
3kw |
4kw |
5kw |
6.5kw |
Main parts
|
S.N. |
Name |
Remark |
|
1 |

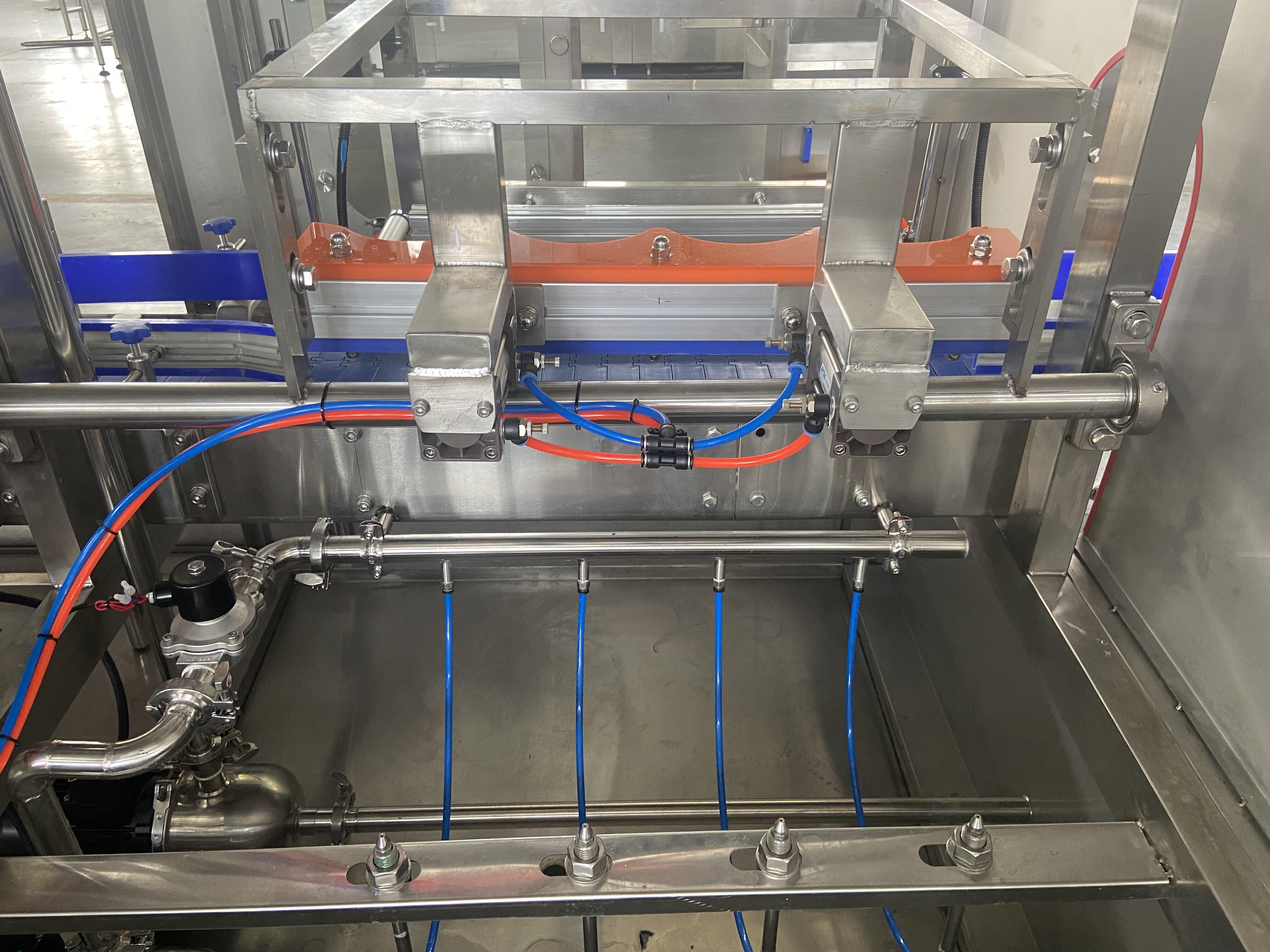

Washing head with bottle neck hanging |
Made by our factory |
|
2 |
Filling valve |
Made by our factory |
|
3 |

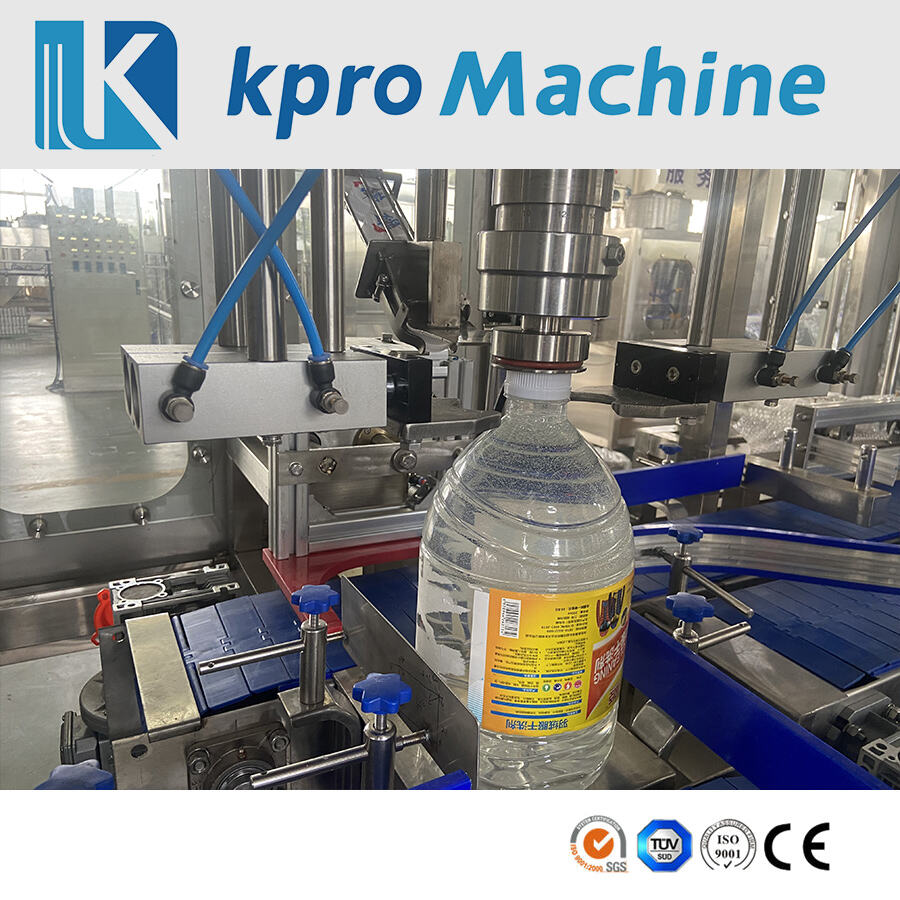

Sealing head |
Made by our factory |
|
4 |
Touch screen |
Siemens |
|
5 |
Transducer |
Delixi |
|
6 |
PLC |
Siemens |
|
7 |
Approach switch |
Autonics |
|
8 |
Light fiber switc |
Autonics |
|
9 |
Pneumatic elements |
Airtac |
1. Where is your factory?

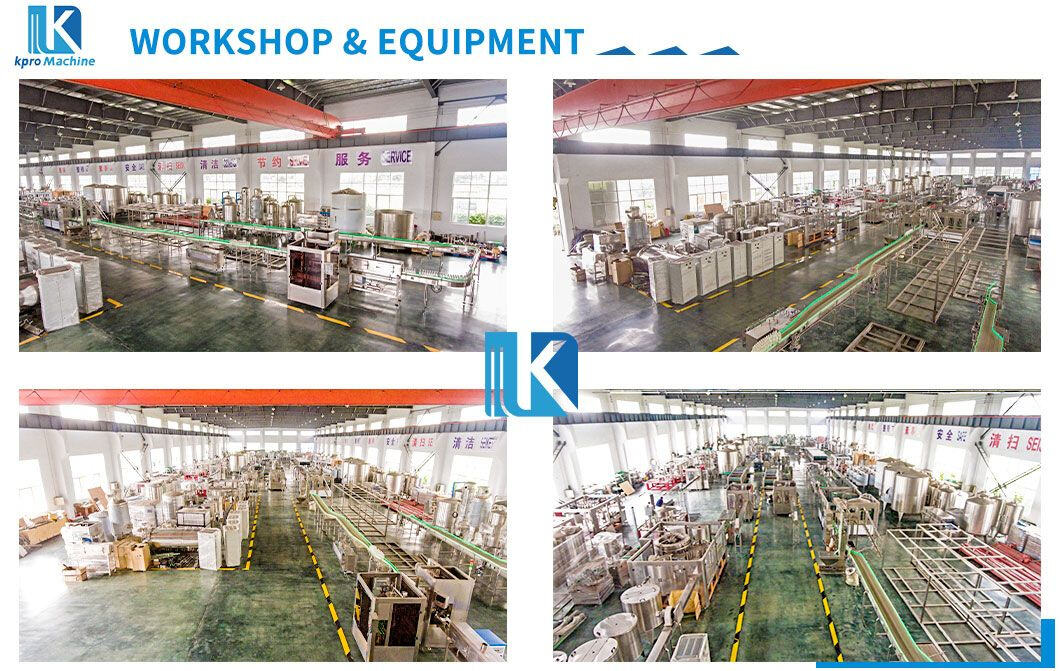

Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
2. Do you have any technical supports with your Plastic Bottle Water Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.
