Our machine can be used to produce bottled mineral water, purified water, alcoholic beverage and other non-gas Liquid.

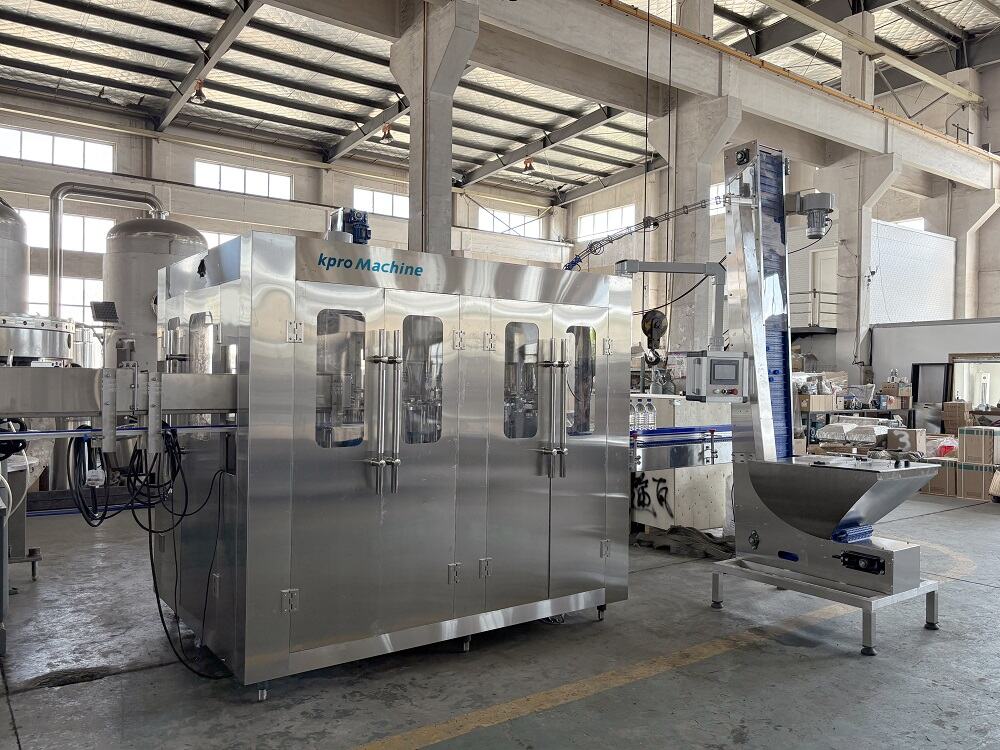

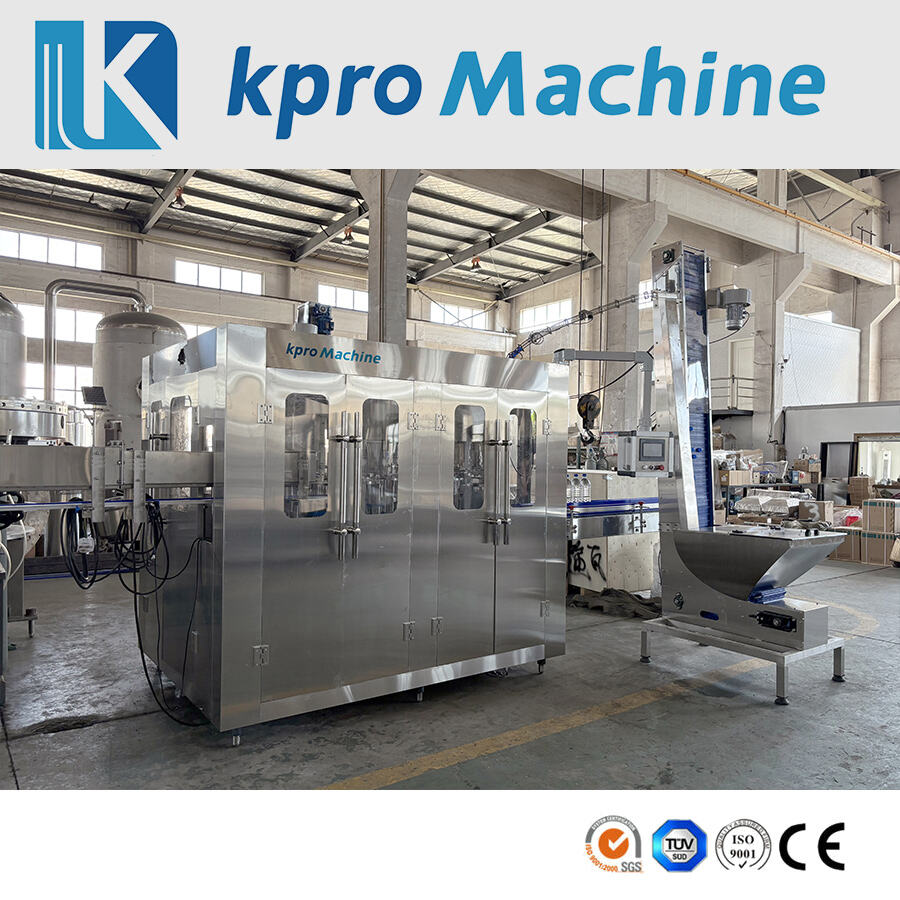

This Complete Water Bottling Plant Machine can be applied to all kinds of plastic machine such as PET, PE. Bottles size can vary from 200ml-2000ml meanwhile few changeover is needed. Different models can satisfy various requirement of output from 1000 bottles/hour to 24000 bottles/hour.
This model of filling machine is designed for the low/middle capacity and small factory. It takes low buying cost, low water and electricity consumption and few space occupation into consideration at the beginning.

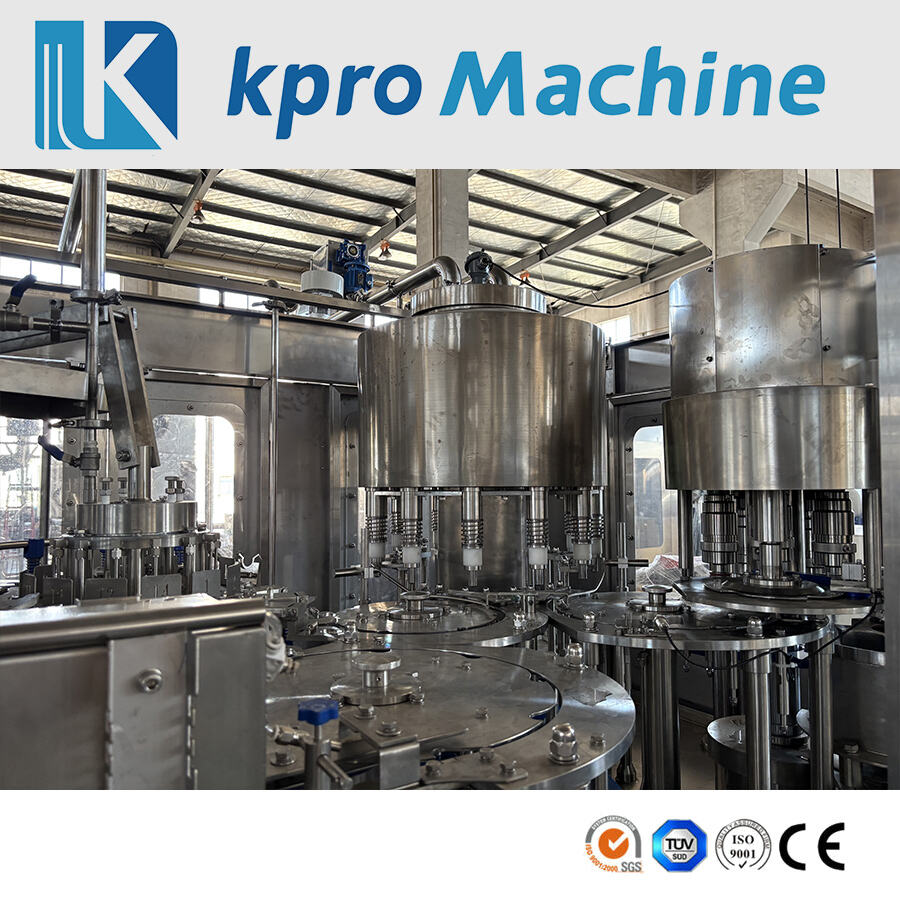

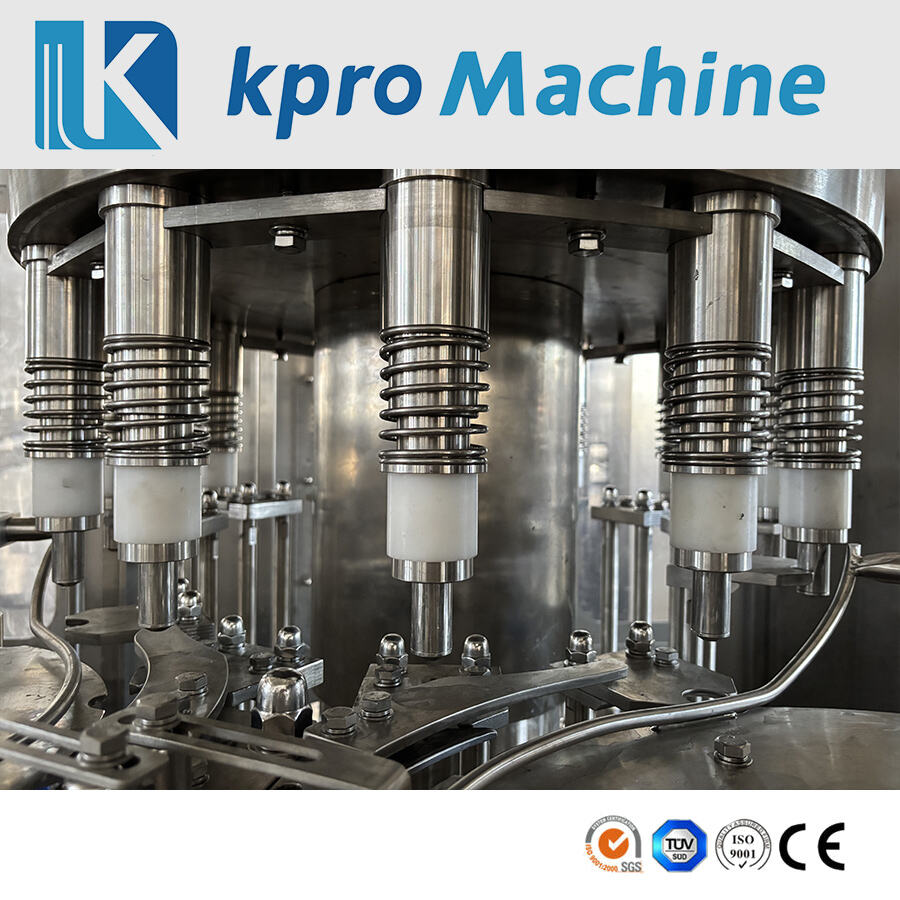

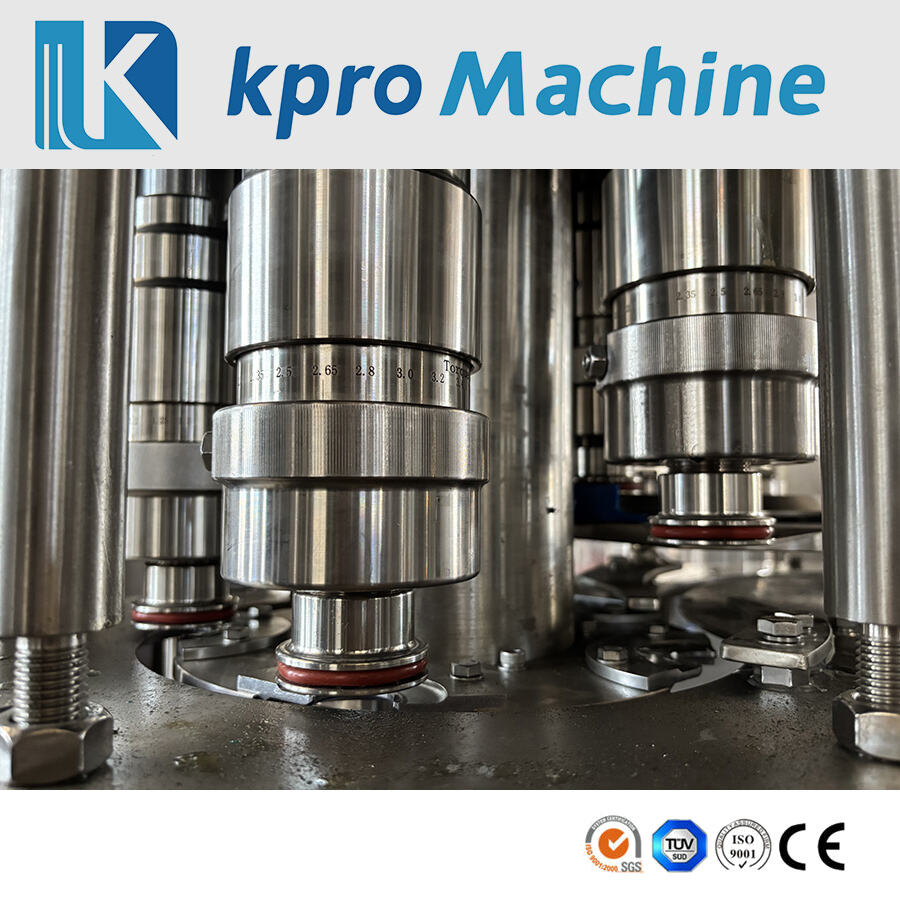

At the same time it can perfectly complete the function of washing, filling and capping. It improves the sanitary conditions and simplifies the maintenance compared with the last generation water filling machine.The equipment is fitted with advanced Mitsubishi PLC to control the operation and cooperated by frequency converter of the main motor.it makes the operation more stable and reliable.the photoelectric sensor is used to detect operating conditions of each section,which makes the operation of this equipment highly automatic and convenient.
Water treatment system - RO system
Raw water tank→Water pump→Silica sand filter→Active carbon filter→Sodium ion exchanger → Precision filter→ Reverse Osmosis→UV-Sterilizer→Ozone Sterilizer →Finished Water tank
Filling and Packing Line

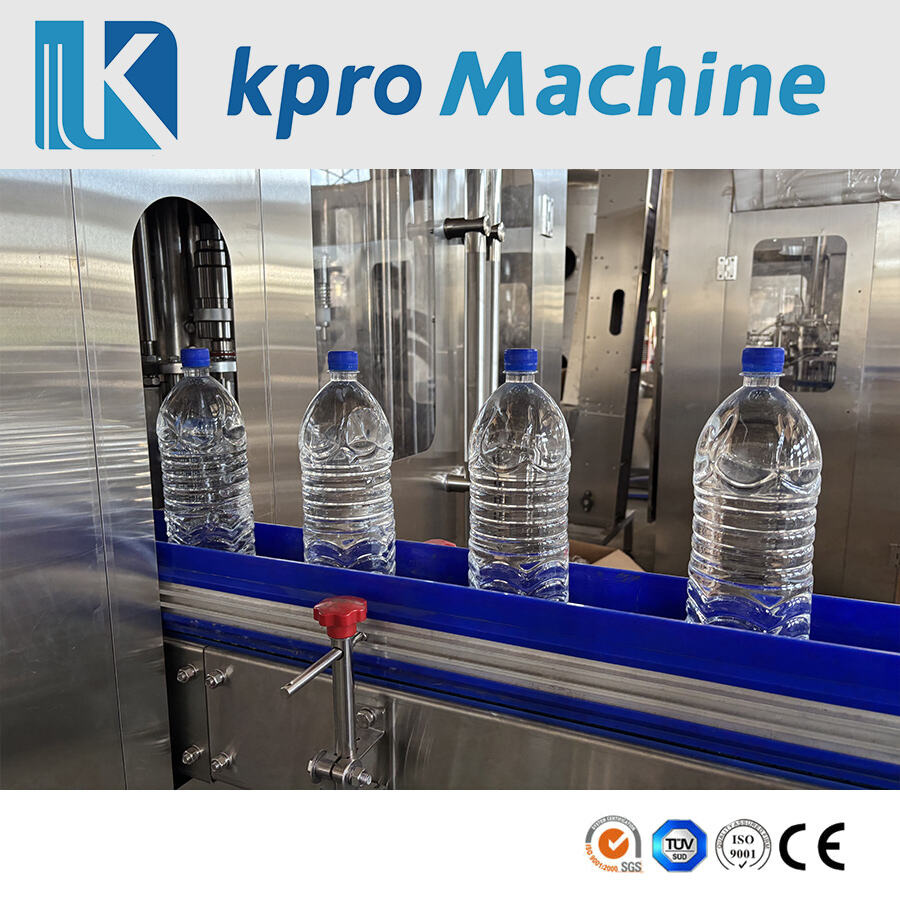

Washing,Filling,Capping → Conveyor →Light checker→ Labeling machine→Code sprayer→PE film packing machine→Stock
Bottle Making Machine
PET preforms → Bottle blow molding machine → Finished Bottles
1) The overall appearance is comfortable, and the window-type structure can be used to keep an eye on the movement of the machine. If there is a problem, the machine can be stopped and checked in time.
2) PLC controller, simple and easy to operate, designed for foreign friends, allowing customers to easily navigate.
3) The whole machine material is made of stainless steel 304/316, which is very strong and guarantees the quality.
4) High filling accuracy and small error, ensuring efficiency while ensuring efficiency.
5)Three-in-one filling, the finished product is short.
6) Fully automatic production, freeing hands, reducing labor required for production, saving costs and improving efficiency.
|
Model |
CGF8-8-3 |
CGF14-12-5 |
CGF18-18-6 |
CGF24-24-8 |
CGF32-32-10 |
CGF40-40-12 |
|
number of rinsing head |
8 |
14 |
18 |
24 |
32 |
40 |
|
number of filling head |
8 |
12 |
18 |
24 |
32 |
40 |
|
number of capping head |
3 |
4 |
6 |
8 |
10 |
12 |
|
rated production capacity(500ml)(BPH) |
1000-2000 |
3000-5000 |
6000-8000 |
8000-12000 |
12000-16000 |
16000-20000 |
|
installed capacity(KW) |
3 |
3.5 |
4 |
4.8 |
7.6 |
8.3 |
|
overall size(mm) L*W*H |
1900*1420*2000 |
2200*1600*2300 |
2450*1900*2300 |
2750*2180*2400 |
4000*2300*2300 |
4550*2650*2300 |
