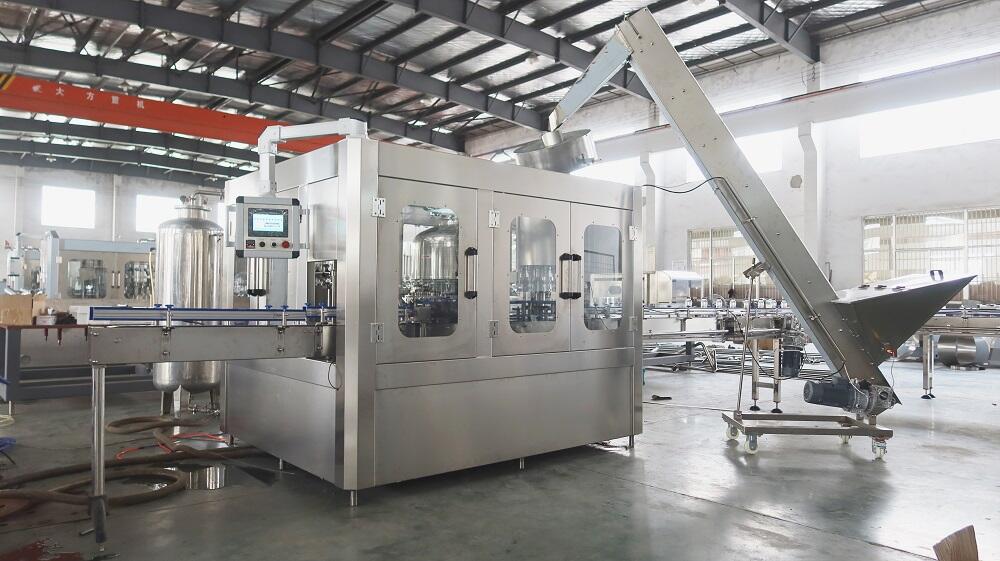

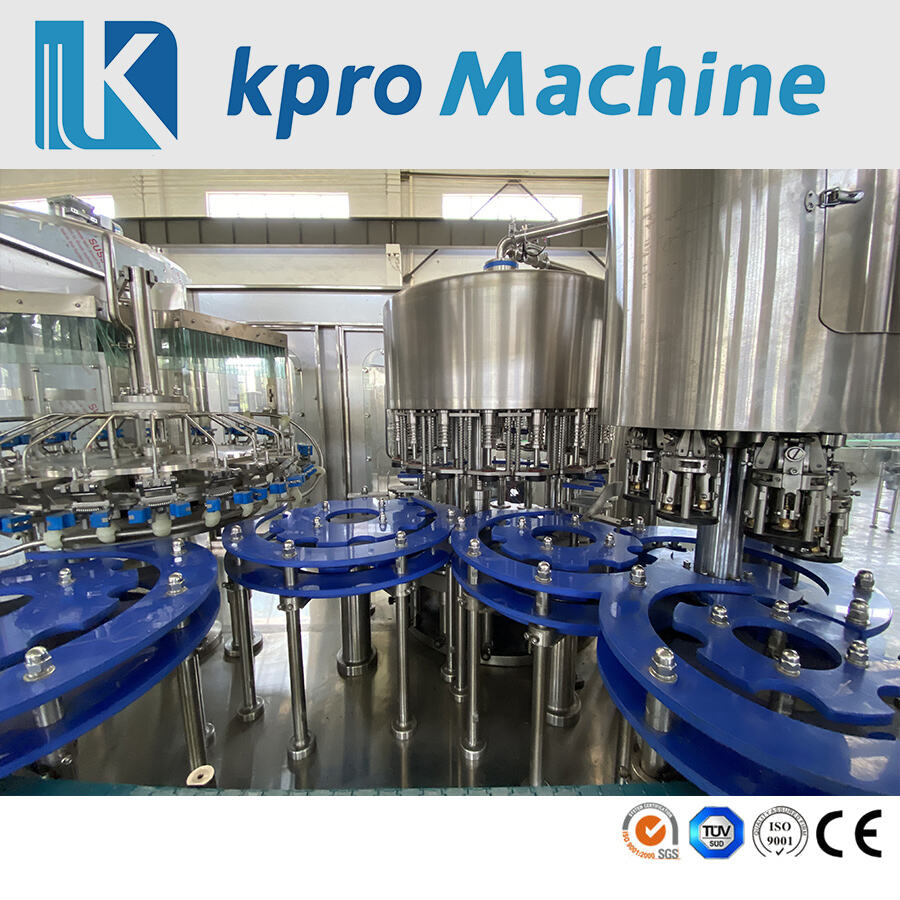

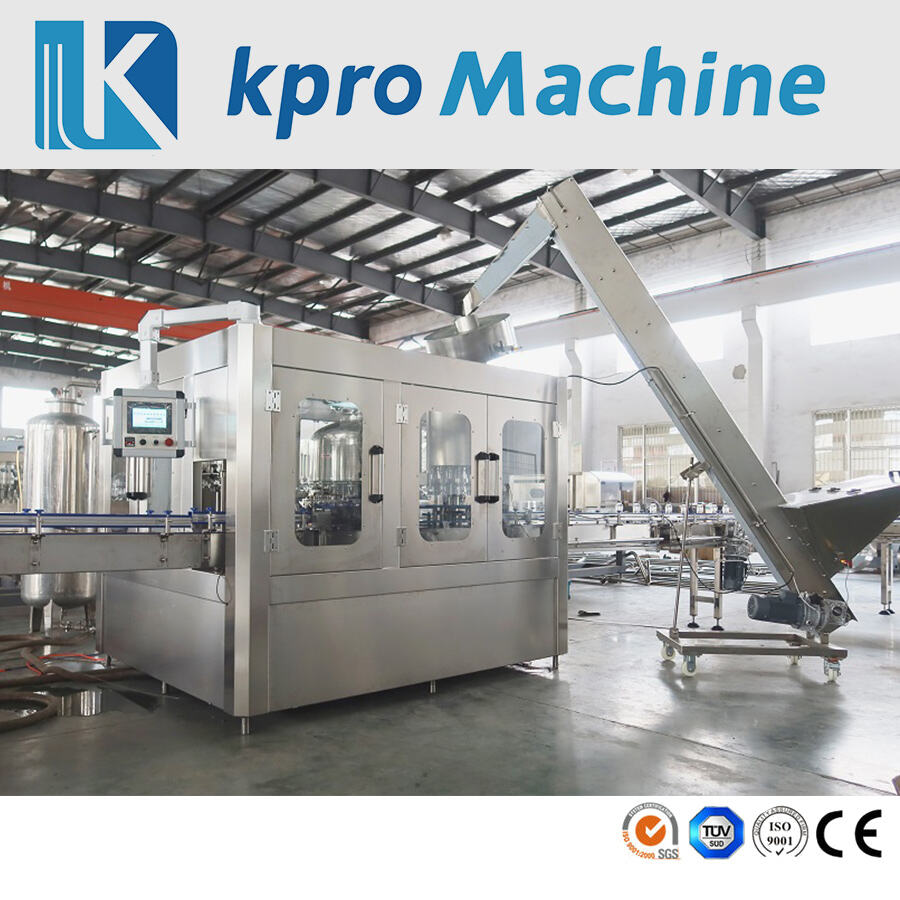

BGF Series 3-in-1 filling machine, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Different models can satisfy various requirements of output from 2000B/H to 24000B/H.

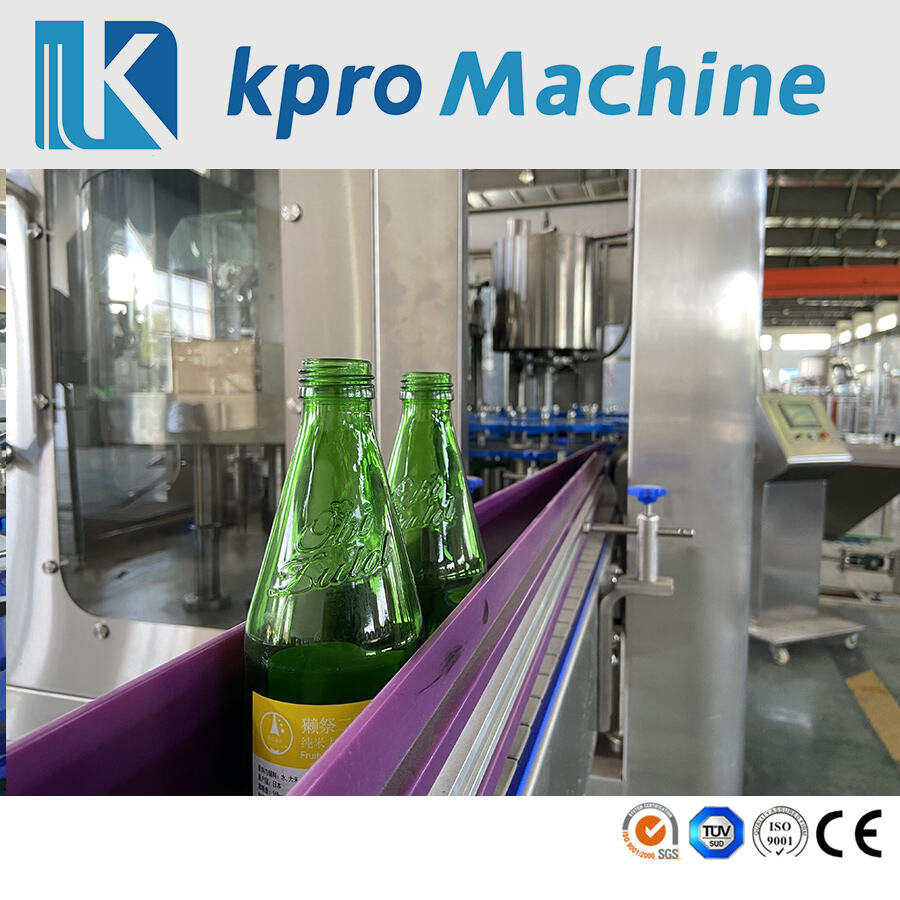

The whole process is automatic ,suitable for glass bottle filling mineral water and pure water/juice/csd beverage.
Filling way using the gravity or micro pressure filling ,make the speed faster and more stable,so compared with the same model our machine output is higher and more efficient.
The machine adopts advanced Mitsubishi programmable controller(PLC) to control the machine adopts advanced automatically, interworking with inverter with inverter running more stable and reliable the photoelectric sensor detect all part running state with high degree of automation, exasperation.
1) The overall appearance is comfortable, and the window-type structure can be used to keep an eye on the movement of the machine. If there is a problem, the machine can be stopped and checked in time.
2) PLC controller, simple and easy to operate, designed for foreign friends, allowing customers to easily navigate.
3) The whole machine material is made of stainless steel 304/316, which is very strong and guarantees the quality.
4) High filling accuracy and small error, ensuring efficiency while ensuring efficiency.
5)Three-in-one filling, the finished product is short.
6) Fully automatic production, freeing hands, reducing labor required for production, saving costs and improving efficiency.
|
Model |
BGF14-12-4 |
BGF16-16-5 |
BGF18-18-6 |
BGF24-24-8 |
BGF32-32-10 |
BGF40-40-12 |
|
Number of rinsing head |
14 |
16 |
18 |
24 |
32 |
40 |
|
Number of filling head |
12 |
16 |
18 |
24 |
32 |
40 |
|
Number of capping head |
4 |
5 |
6 |
8 |
10 |
12 |
|
Rated production capacity(500ml) |
2000bph |
3000bph |
4000bph |
6000bph |
10000bph |
15000bph |
|
Installed capacity(KW) |
3.2 |
3.6 |
4 |
4.8 |
7.6 |
8.3 |
|
Overall size(LxWxH,mm) |
2100*1800*2400 |
2200*1900*2400 |
2450*1900*2400 |
2750*2250*2400 |
4000*2300*2400 |
4550*2650*2400 |
Main parts
|
S.N. |
Name |
Remark |
|
1 |
Washing head with bottle neck hanging |
Made by our factory |
|
2 |

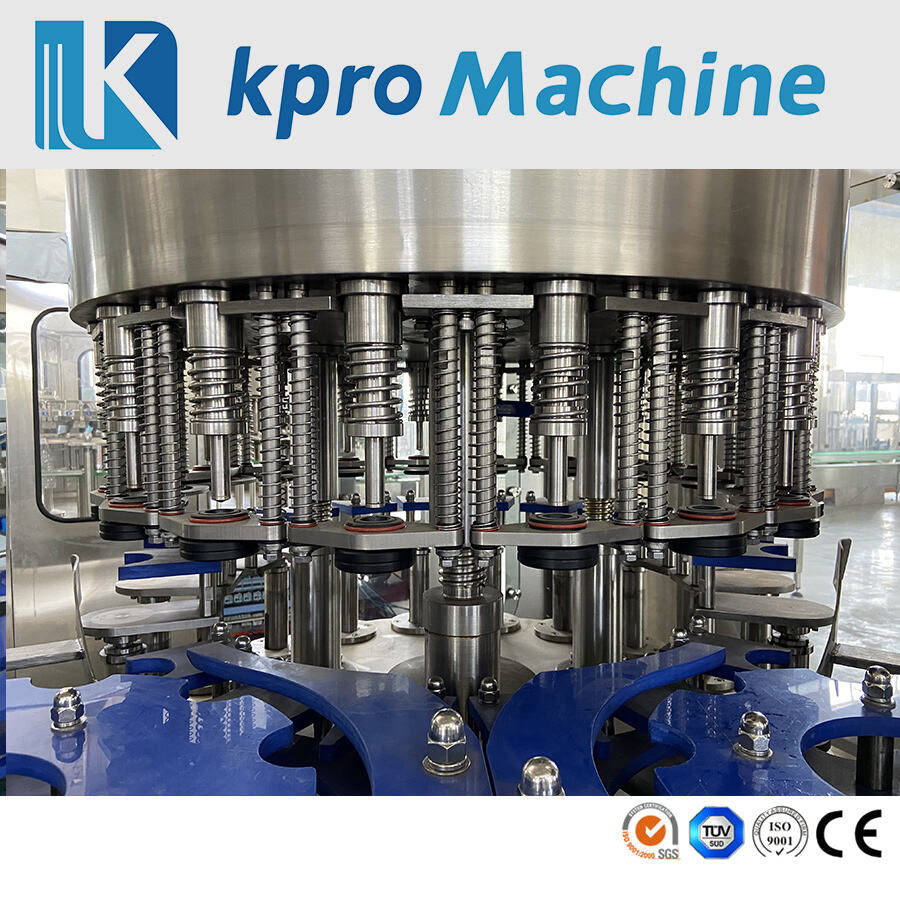

Filling valve |
Made by our factory |
|
3 |

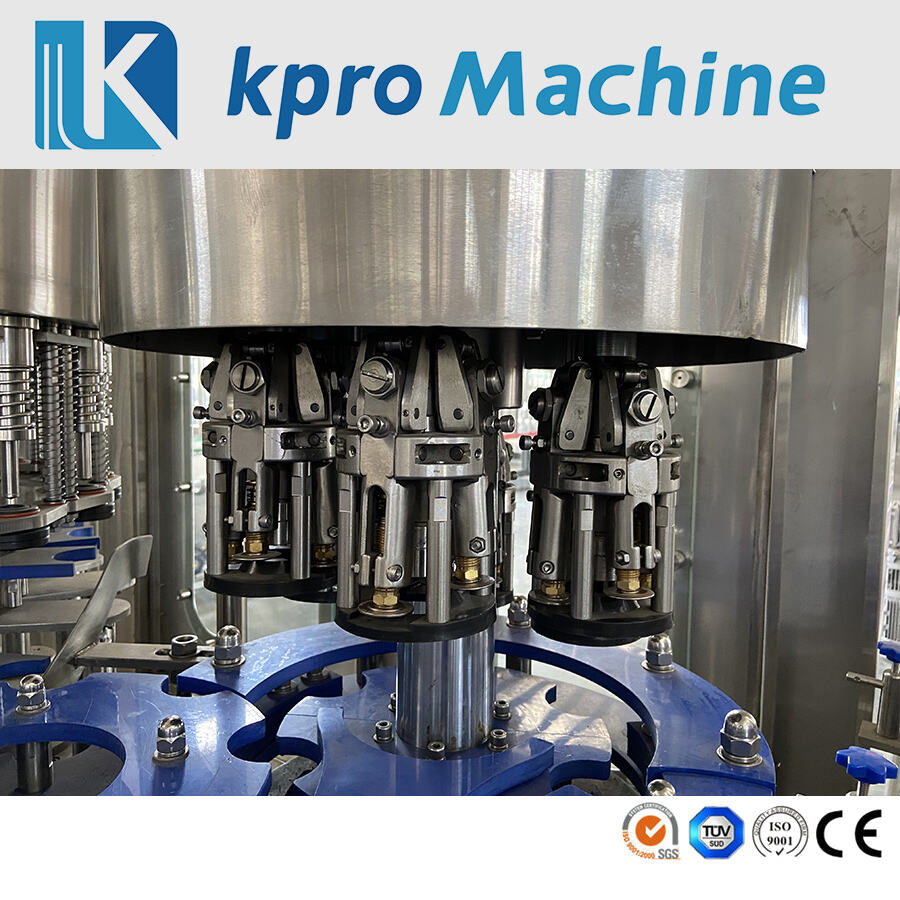

Sealing head |
Made by our factory |
|
4 |
Touch screen |
Siemens |
|
5 |
Transducer |
Delixi |
|
6 |
PLC |
Siemens |
|
7 |
Approach switch |
Autonics |
|
8 |
Light fiber switc |
Autonics |
|
9 |
Pneumatic elements |
Airtac |
1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
2. Do you have any technical supports with your Glass Bottle Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.
