CAN FILLING MACHINE

6000cph 330ml Small Aluminum Can Sparkling Water Carbonated Soft Drinks Filling Canning Machine

Product Description

The machine is advanced filling and sealing equipment, it's designed on the basis of absorbing domestic and foreign advanced technology. It is mainly used in filling and sealing carbonated beverages like soft drinks, cola, sparkling wine, etc. It has such advantages as advanced construction, stable working, convenient operation, and repair & maintenance, transducer control as well as high production efficiency. It is the ideal equipment for mid-scale & small-scale beverage factory.

If you also want to use the same machine to fill non-carbonated drinks is available. Through change the isobaric pressure filling valves to normal pressure filling valves then it will be suitable for filling non-carbonated beverages such as energy drink , cold brew coffee, herbal tea and so on.

canning machine1.jpgcanning machine2.jpgcanning machine3.jpg

We provide the complete Can filling and package solution ,from can depalletizer ,can rinsing machine ,can filling & sealing monoblock machine ,leakage check,liquid nitrogen dosing machine ,pasteurizer tunnel ,blow dryer ,carton package ,film package system ,which is widely used for the beverage ,beer ,Juice industry and so on.

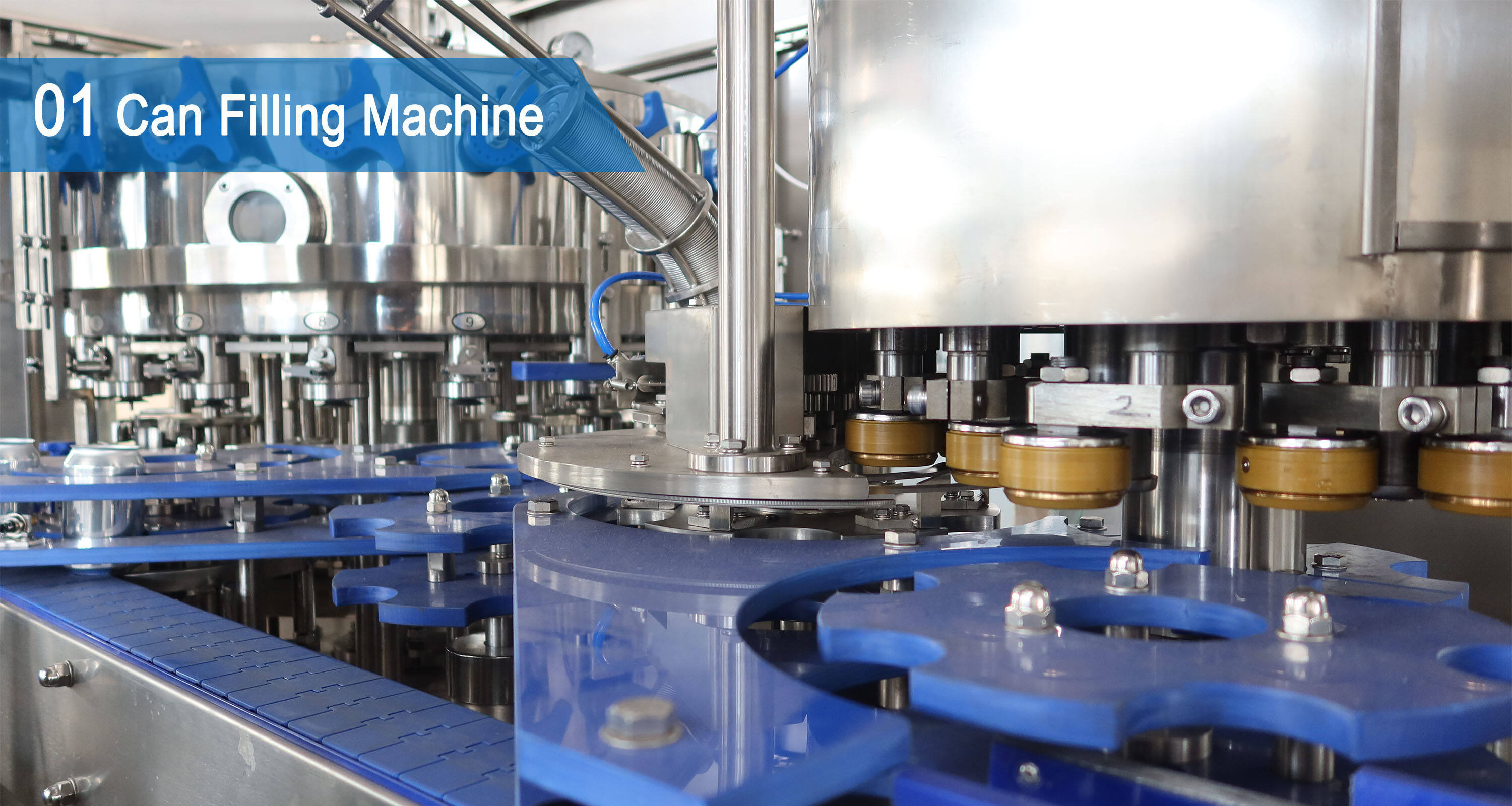

canning machine4.jpg

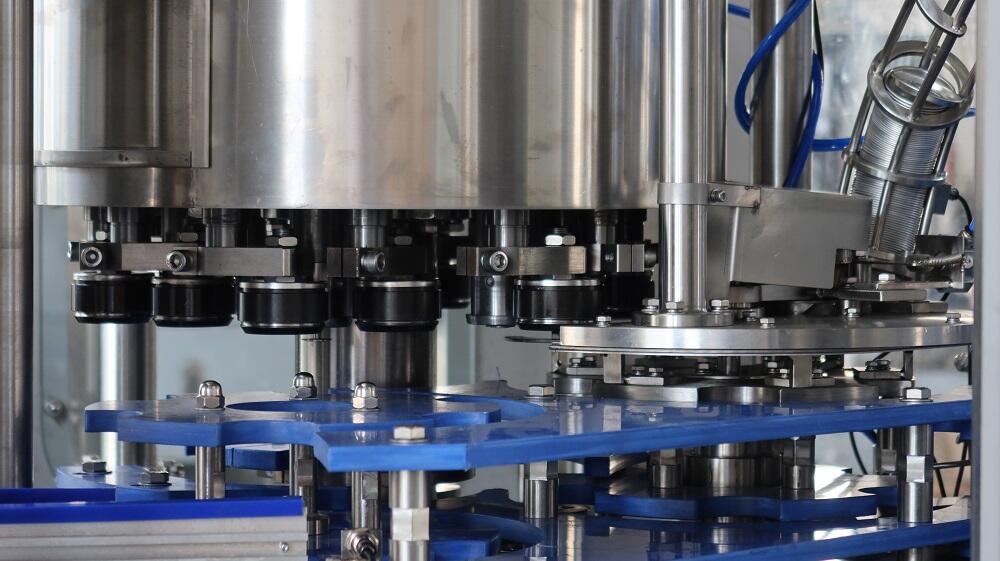

canning machine-filling part.JPG canning machine-drop lid part.JPG canning machine-seaming part.JPG

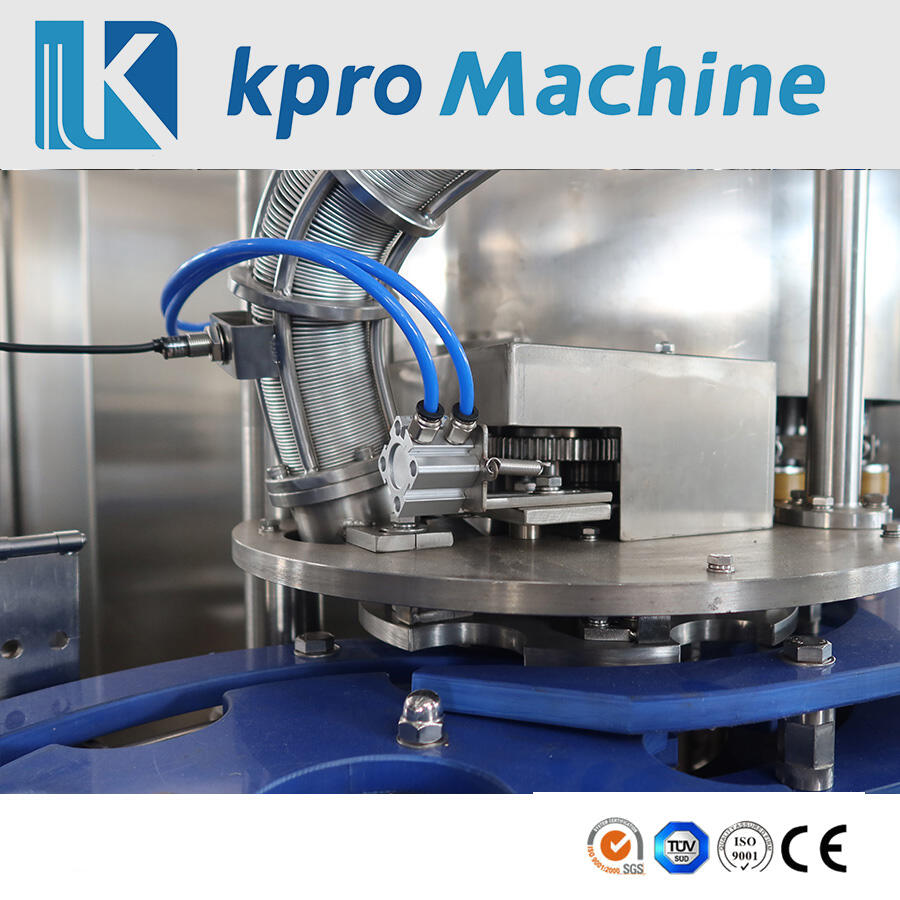

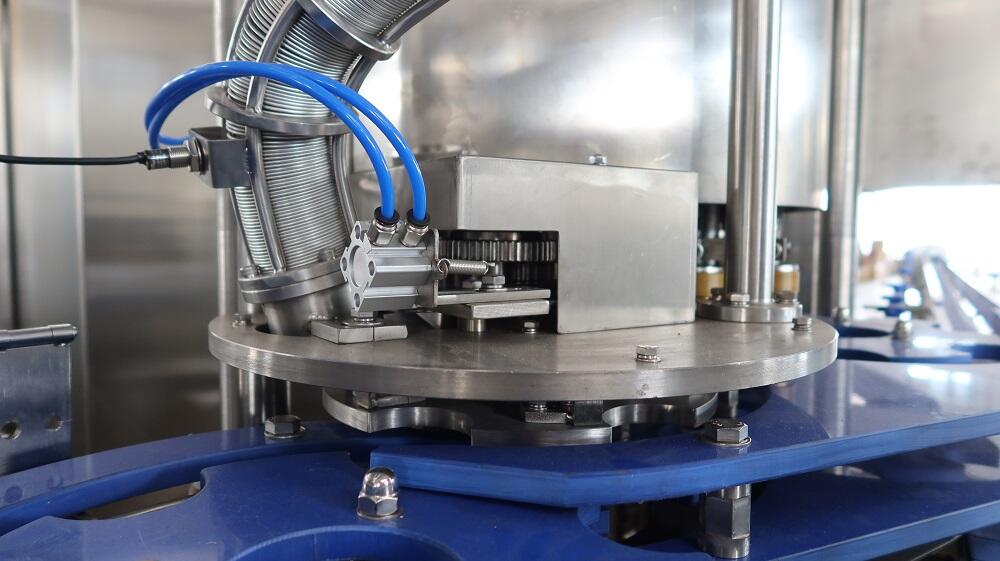

Filling Part Drop Lid Part Seaming Part

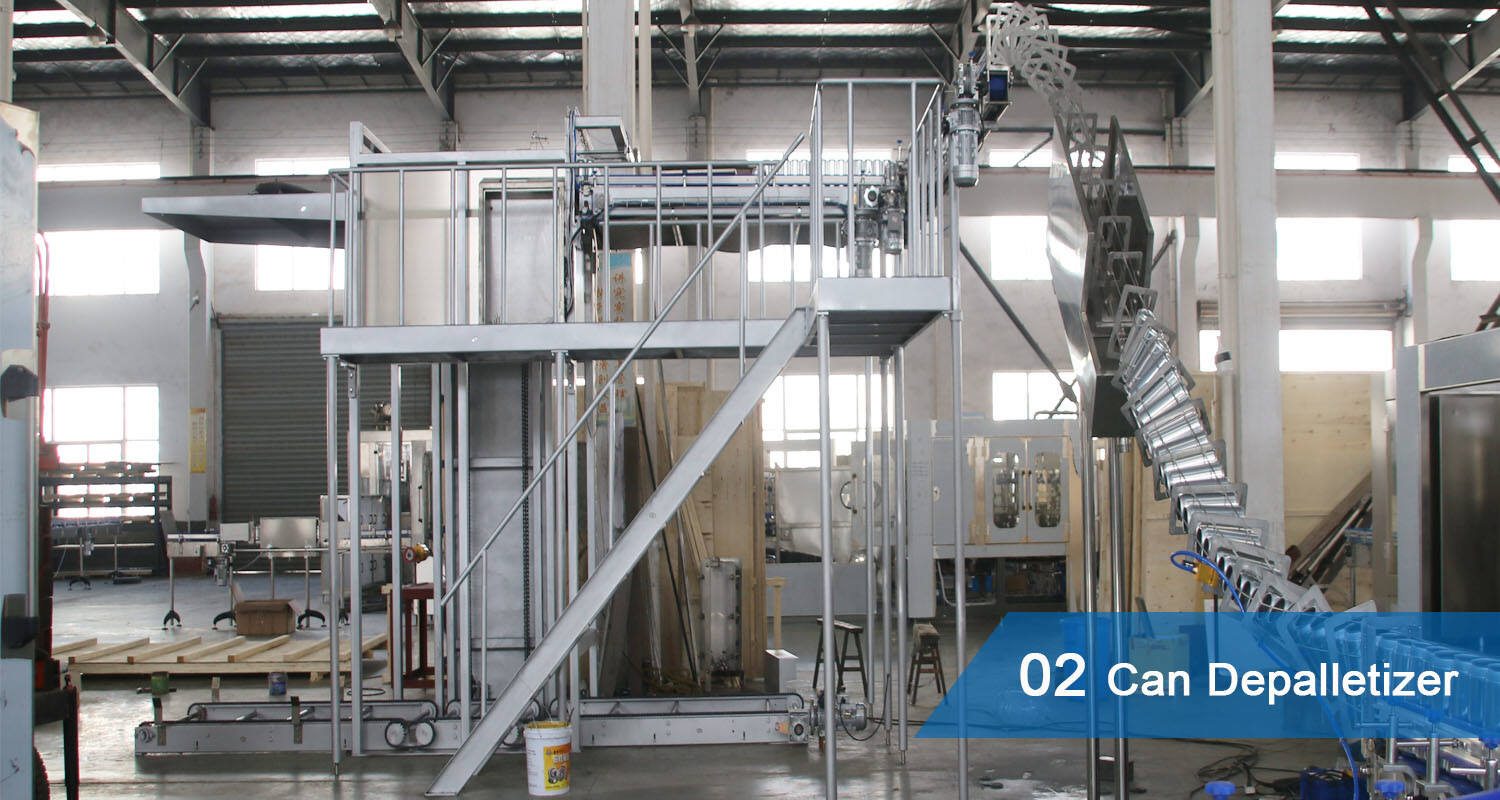

Can Depalletizer

Put the pallet on the plate, and push to the net conveyors from upper to downside. Then conveyors will transport empty can to the washing machine. Instead of manpower place can, it saves a lot of workers.

canning machine5.jpg
canning machine6.jpg

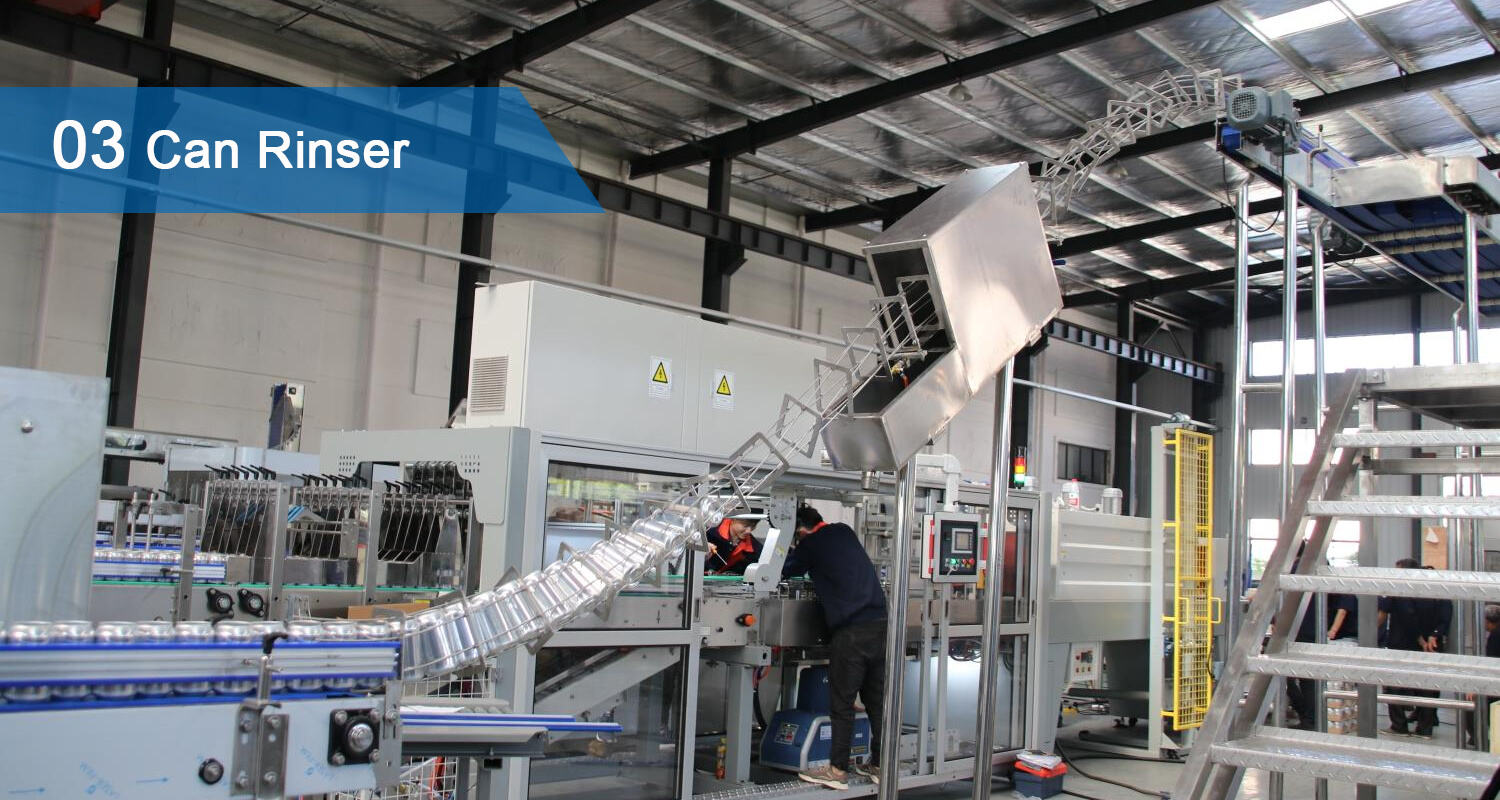

Can Rinser

Function : washing can inside and outside dust . All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.

Technical Parameter

Model

DGF12-4

DGF18-6

DGF24-6

DGF32-8

DGF40-10

Capacity (310ml)

3000CPH

5000CPH

7000CPH

10000CPH

12000CPH

Application

Beer, carbonated drinks, cold coffee, sparkling water, cider, soda water, herbal tea, non-carbonated drinks etc

Packing Material

Aluminum cans,Tin cans,PET cans etc

Filling Range

130ml, 250ml, 330ml, 355ml, 500ml, 12oz, 16oz, 1L and so on (0.1-1L)

Filling type

Isobaric filling / Normal pressure filling

Power (Kw)

0.75

3.7

3.7

4.2

6.5

Diamension (M)

1.8*1.3*2.3

2.3*1.4*2.3

2.58*1.7*1.9

2.8*1.7*1.95

4.8*2.3*2.5

Weight (Kg)

1800

2500

3000

3800

5000

More information

main products.jpgAbout us.jpgworkshop equipment.jpgcertificates.jpgexhibitions.jpgour customers.jpgour partners.jpgpackaging shipping.jpg

FAQ

1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.


2. Do you have any technical supports with your Aluminum Canning Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.


3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.
