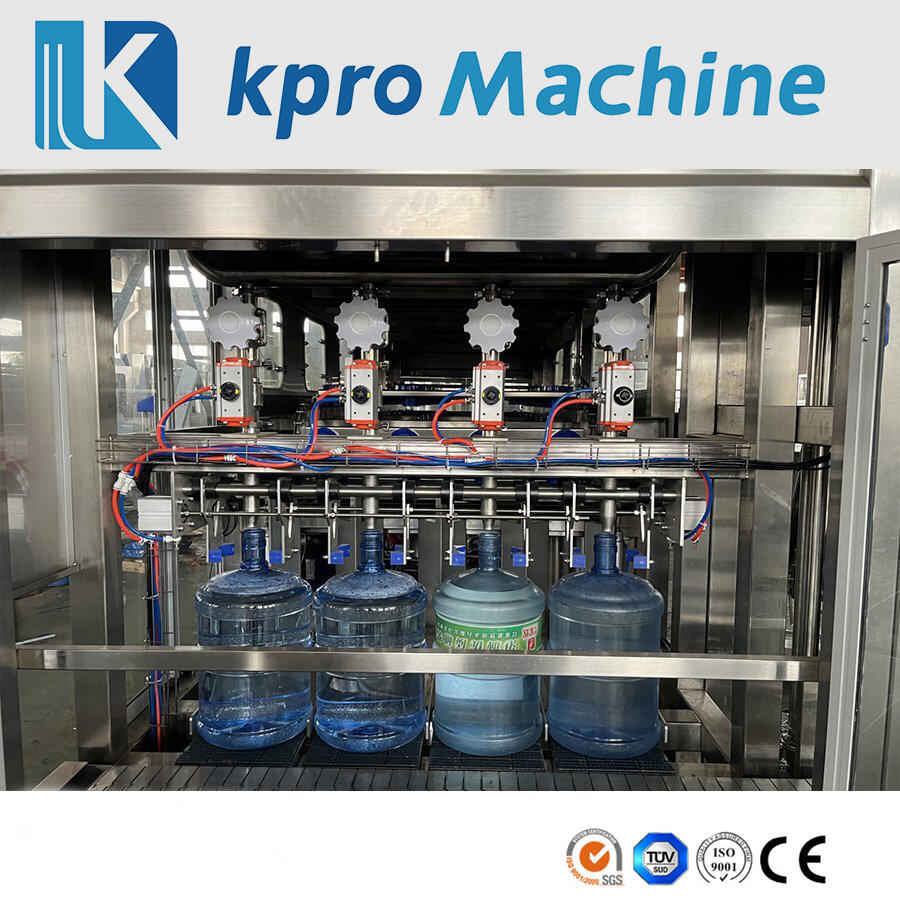

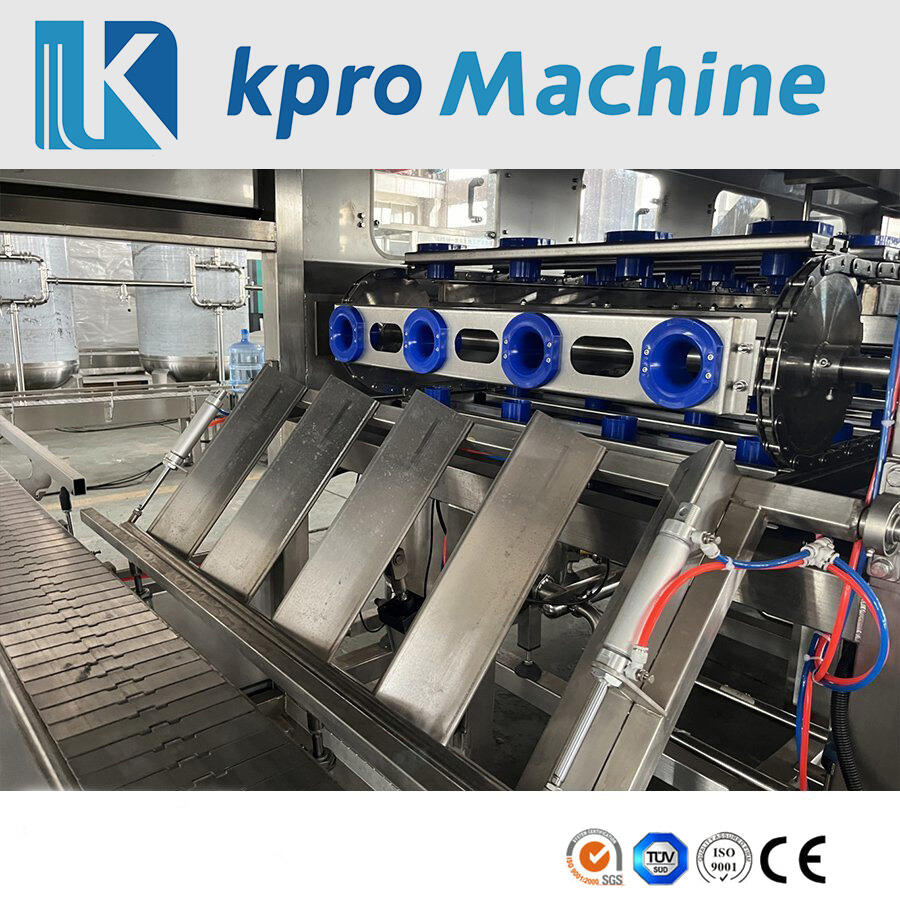

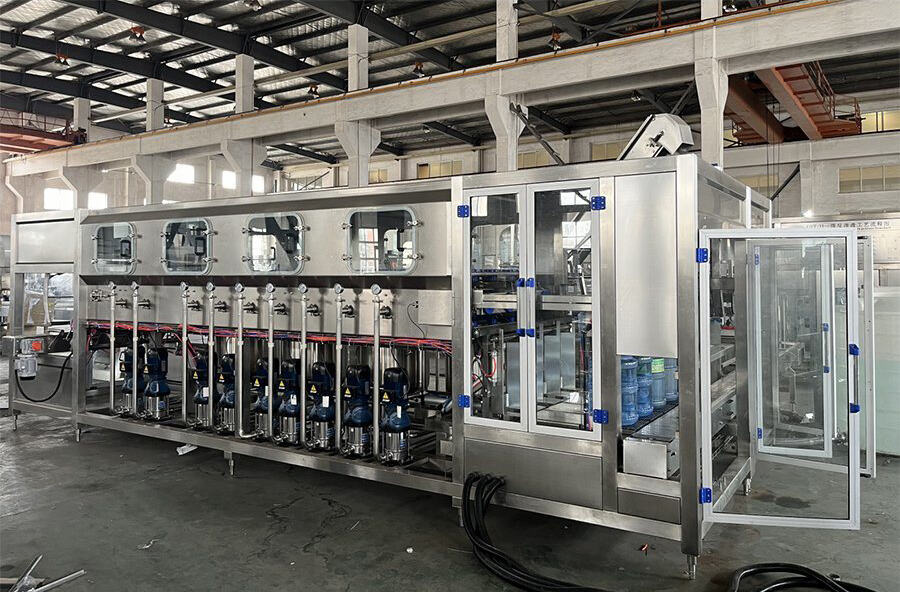

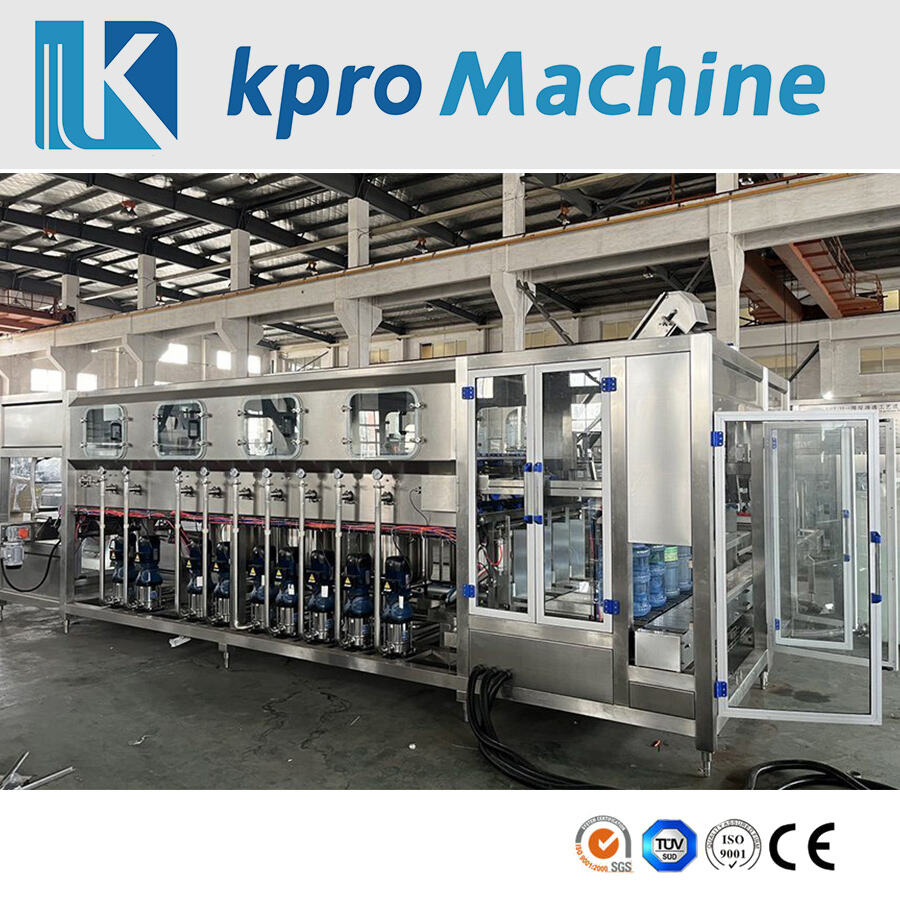

QGF-series barrel filling line as the central equipment is specially designed for 5 gallons barreled drinking water production line, which is ideal for production of mineral water, distilled water and purified water. the use of high quality stainless steel guarantees its high-performance resistance of corrosion and easiness of cleaning. With major electrical components coming from famous international brand, combined with interior and exterior spray nozzles for cleaning barrels provided by know-how expertise . The compact design, high efficiency, accurate and sensitive response and high automation level to ensure its stability and reliability as an integrated (machine, electricity and compressed air ) full-automatic barrel filling line.

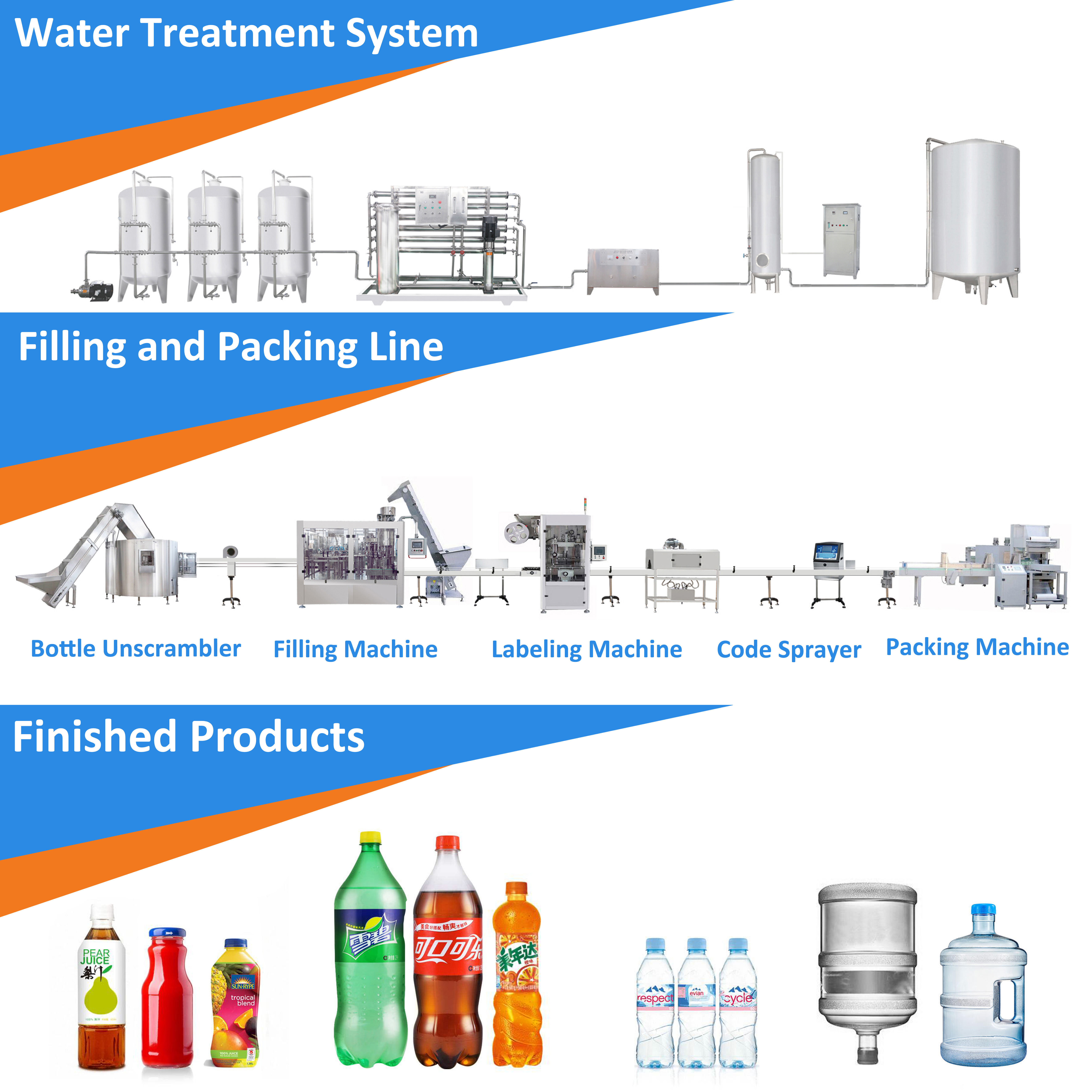

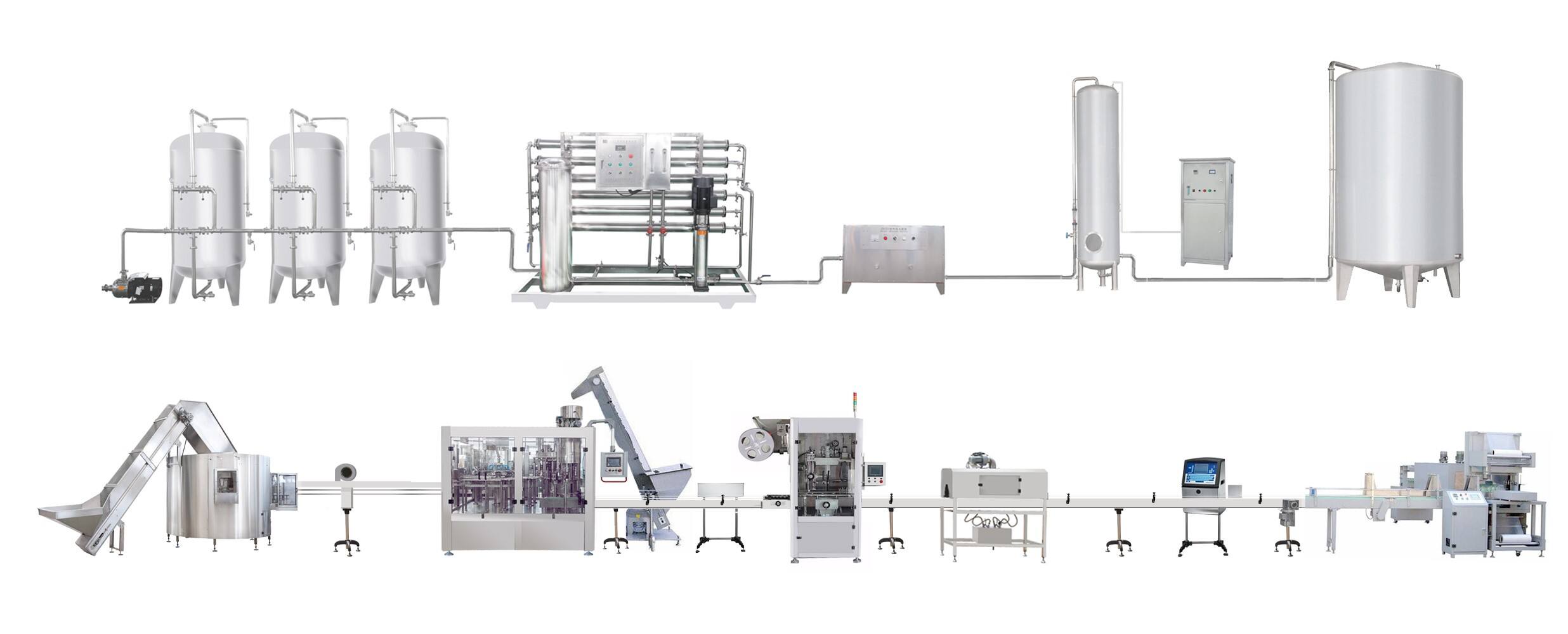

Water treatment system - RO system
Raw water tank→Water pump→Silica sand filter→Active carbon filter→Sodium ion exchanger → Precision filter→ Reverse Osmosis→UV-Sterilizer→Ozone Sterilizer →Finished Water tank

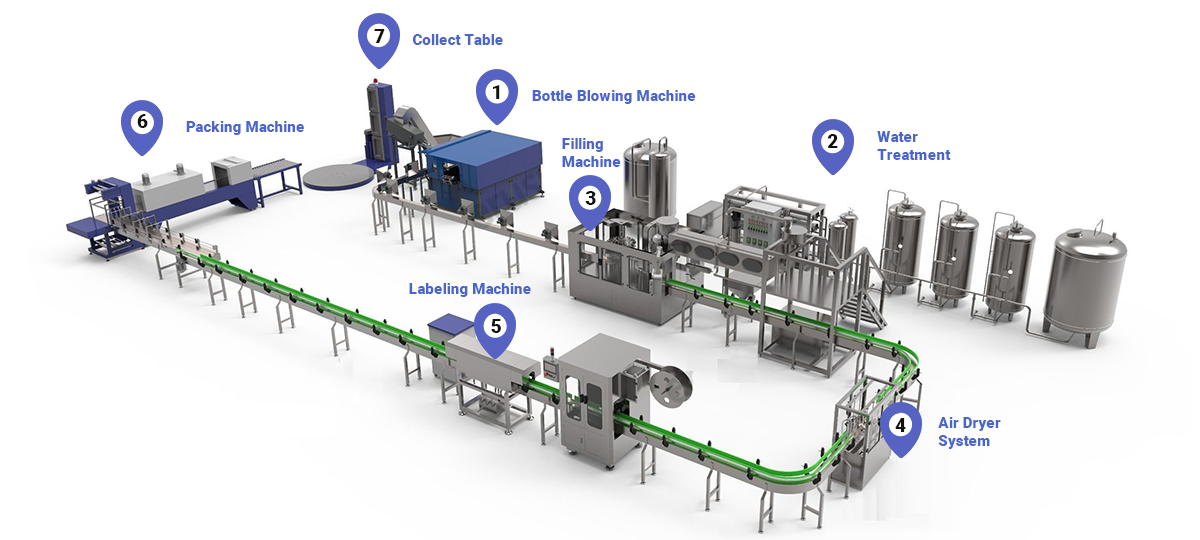

Filling and Packing Line
Washing,Filling,Capping → Conveyor →Light checker→ Labeling machine→Code sprayer→PE film packing machine→Stock
Bottle Making Machine
PET preforms → Bottle blow molding machine → Finished Bottles
1. QGF type auto barreled water production line is specially used in 3 gallon5 gallon barreled water producing.
2. The complete line has washer\filler\capper three function in one body, it is the ideal equipment for pure water, mineral water.
3. Total line is made by SUS304.
4. The main electric parts use Japanese Mitsubishi, Omron and so on.
5. The air pressure system adopts Taiwan Airtac brand product.
6. This machine has features as compact structure, low floor area, high efficiency.5 Gallon barreled production line is popular in South American.
|
Model |
QGF-100 |
QGF-200 |
QGF-300 |
QGF-450 |
QGF-600 |
QGF-900 |
QGF-1200 |
|
Number of filling head |
1 |
2 |
3 |
4 |
4 |
6 |
8 |
|
Volume(L) |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
|
Barrel size(mm) |
Φ270x490 |
Φ270x490 |
Φ270x490 |
Φ270x490 |
Φ270x490 |
Φ270x490 |
Φ270x490 |
|
Capacity(b/h) |
100 |
200 |
300 |
450 |
600 |
900 |
1200 |
|
Gas pressure(Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.6 |
0.6 |
|
Gas consumption(m3/min) |
0.37 |
0.37 |
0.6 |
0.8 |
1 |
1 |
1.8 |
|
Motor power(kw) |
1.38 |
1.75 |
3.8 |
3.8 |
7.8 |
9.75 |
13.5 |
|
Rated voltage(v) |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
|
Weight(kg) |
680 |
800 |
1500 |
2100 |
3000 |
3500 |
4500 |
|
S.N. |
Name |
Remark |
|
1 |
Washing head with bottle neck hanging |
Made by our factory |
|
2 |
Filling valve |
Made by our factory |
|
3 |
Sealing head |
Made by our factory |
|
4 |
Touch screen |
Siemens |
|
5 |
Transducer |
Delixi |
|
6 |
PLC |
Siemens |
|
7 |
Approach switch |
Autonics |
|
8 |
Light fiber switc |
Autonics |
|
9 |
Pneumatic elements |
Airtac |
1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
2. Do you have any technical supports with your Plastic Bottle Water Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.
