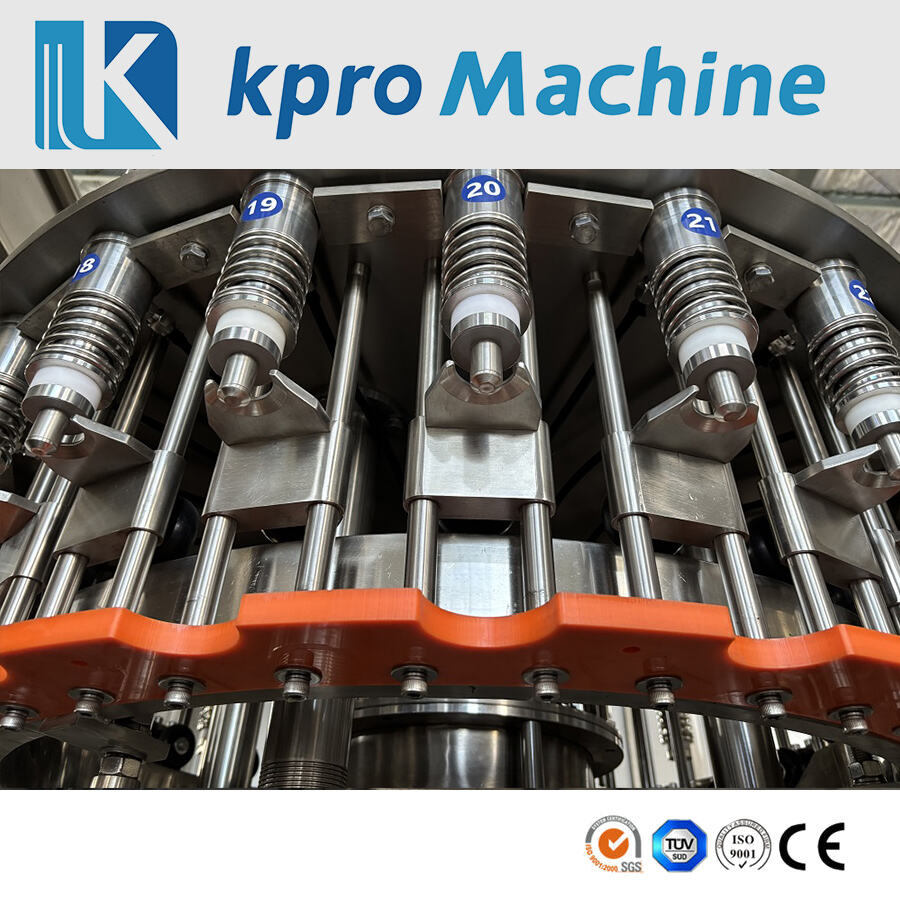

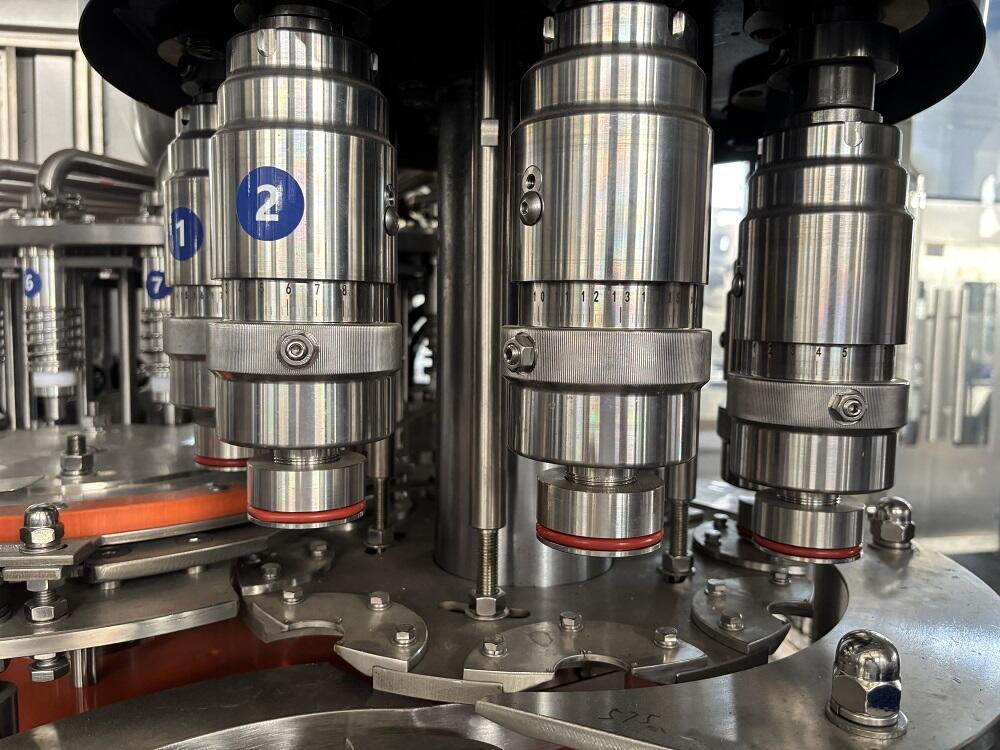

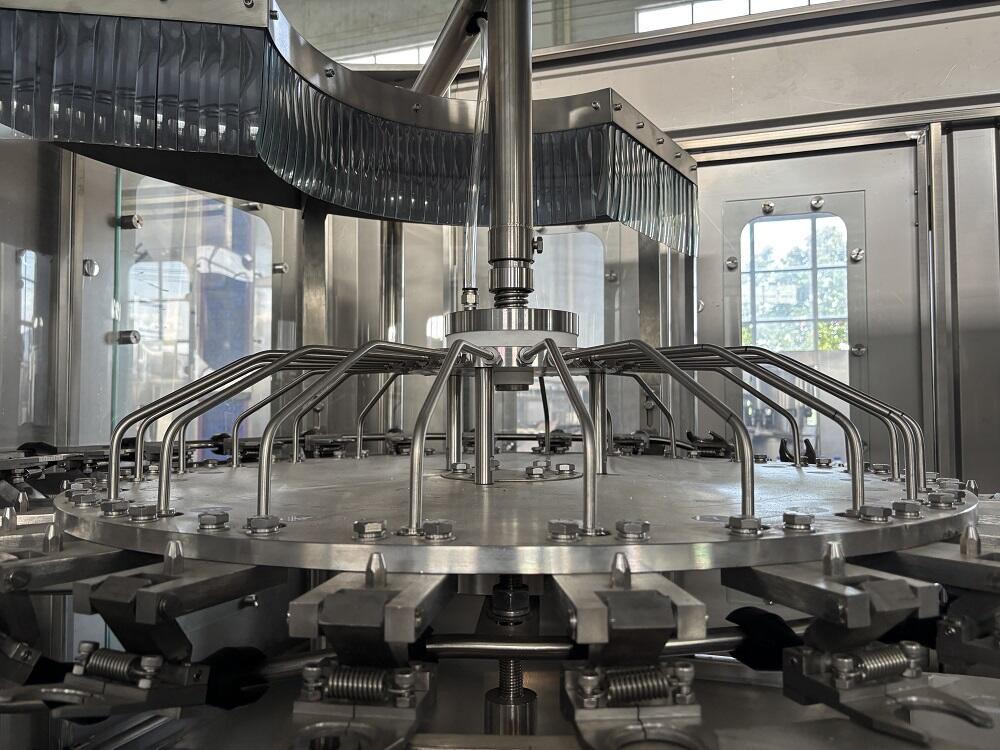

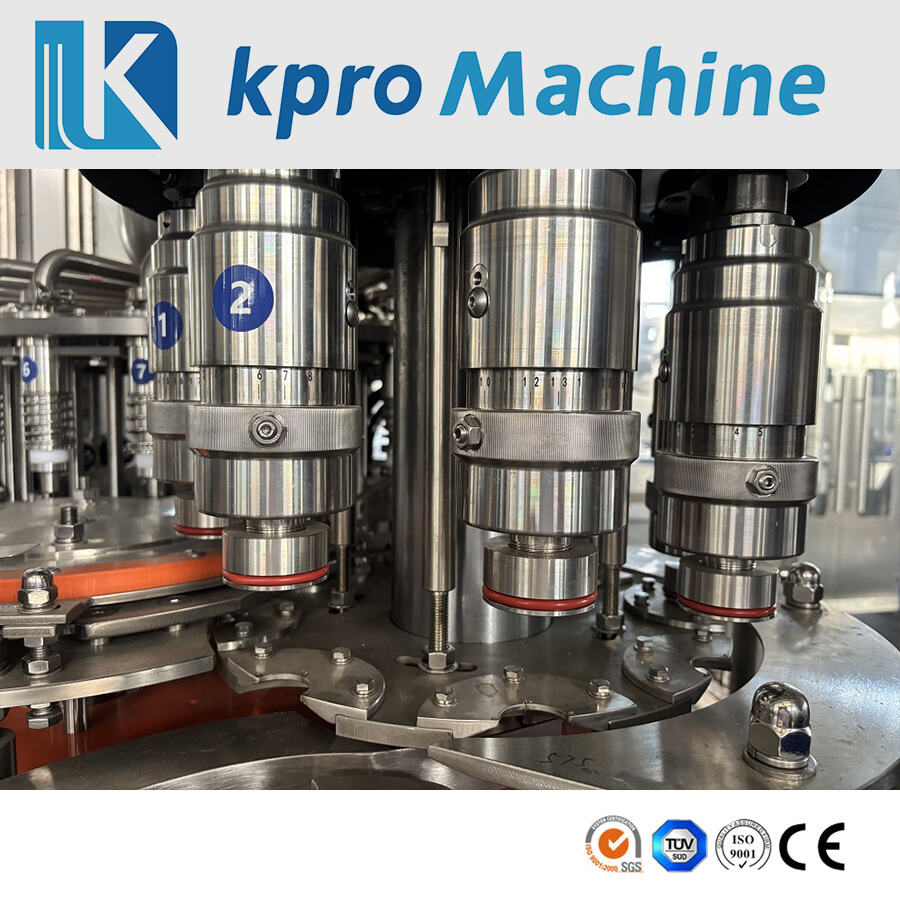

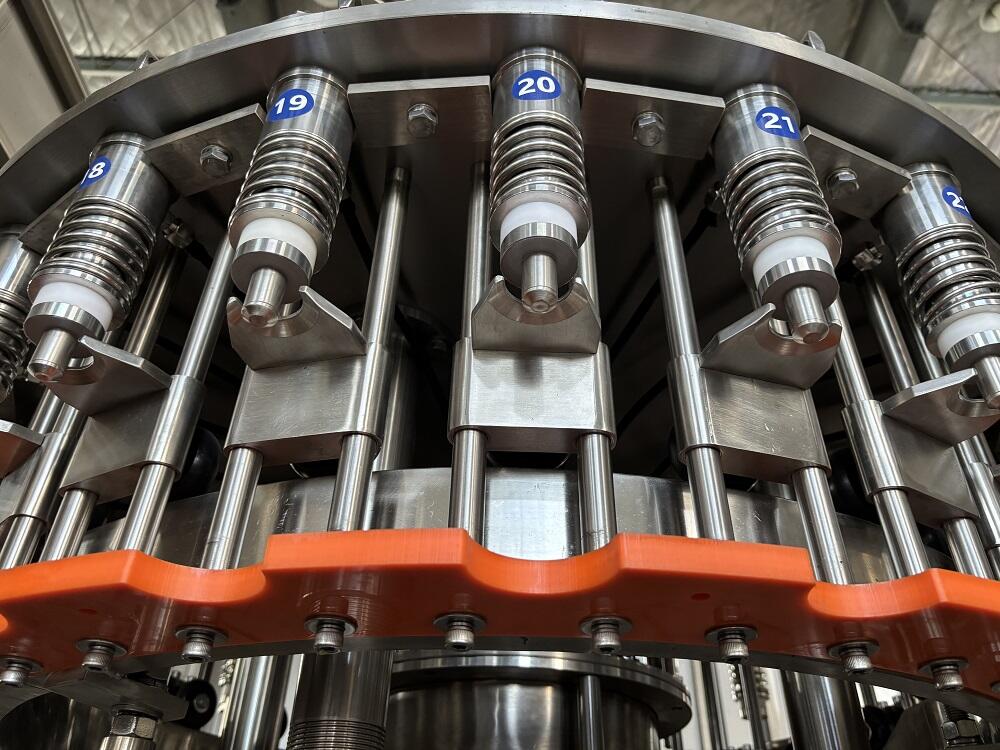

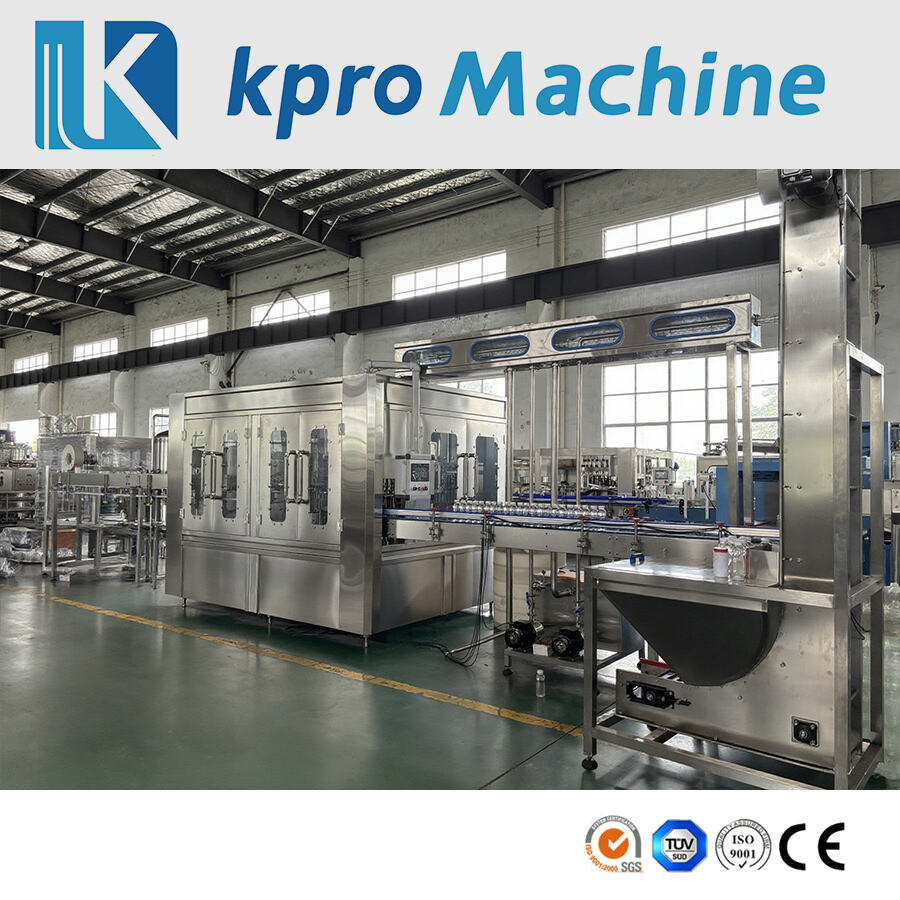

This juice filling machine is used to fill all kinds of fresh fruit, such as apple juice, mango juice, orange juice, etc. in both PET or glass bottles.
Different models can satisfy various requirement of output from 1000B/H to 16000B/H.
It adopts hanging type conveying-bottle structure to make changing bottle model more convenient. The water bottle filling machine adopts advanced Mitsubishi programmable controller(PLC) to control the machine. After programed, then can start easy operation.

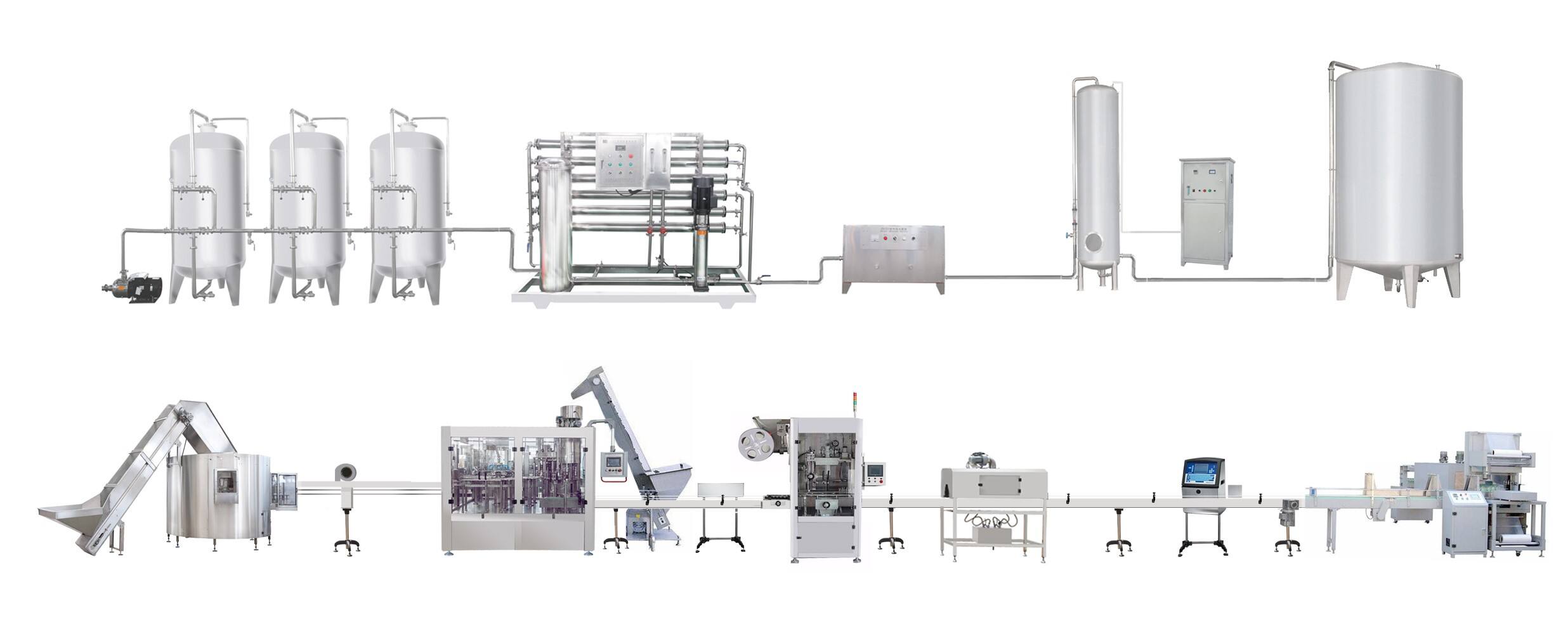

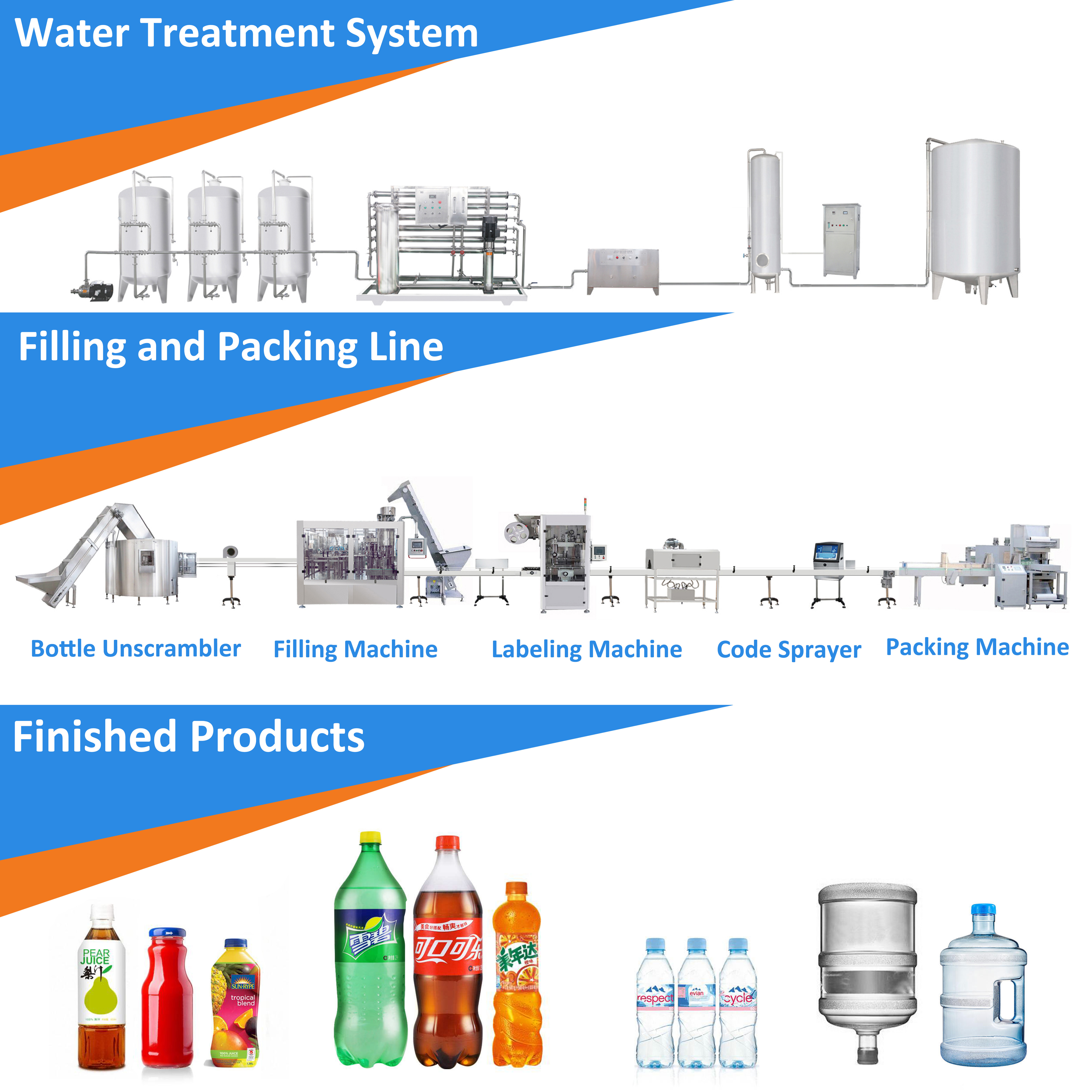

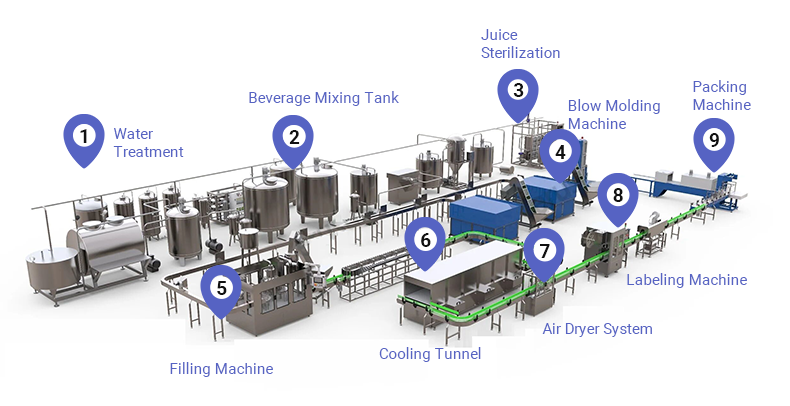

Water treatment system - RO system
Raw water tank→Water pump→Silica sand filter→Active carbon filter→Sodium ion exchanger → Precision filter→ Reverse Osmosis→UV-Sterilizer→Ozone Sterilizer →Finished Water tank
Juice mixing processing:
Mixing→ Sugar melting→ Homogenizer→ High-temperature sterilizer→Buffering→Storage

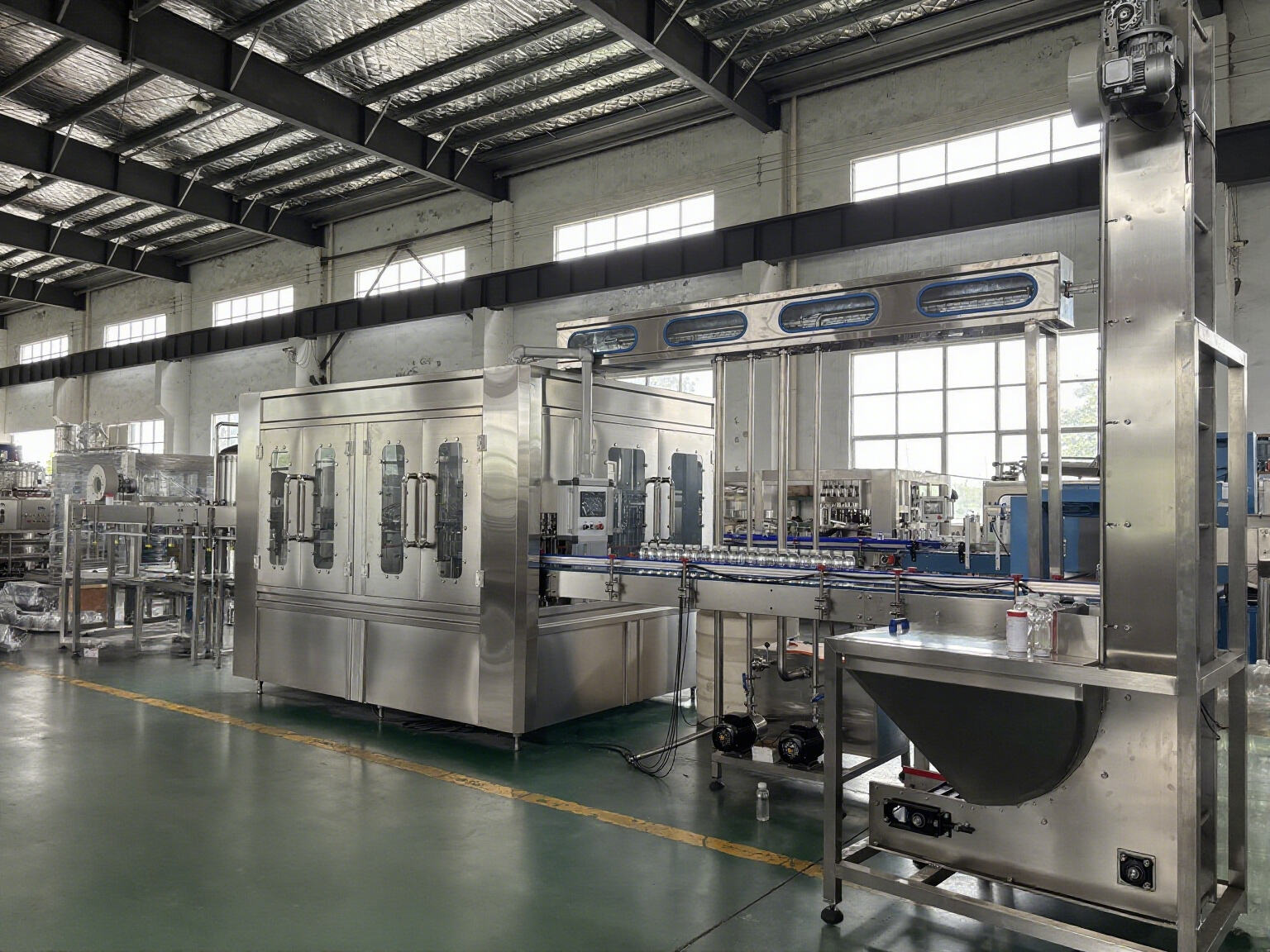

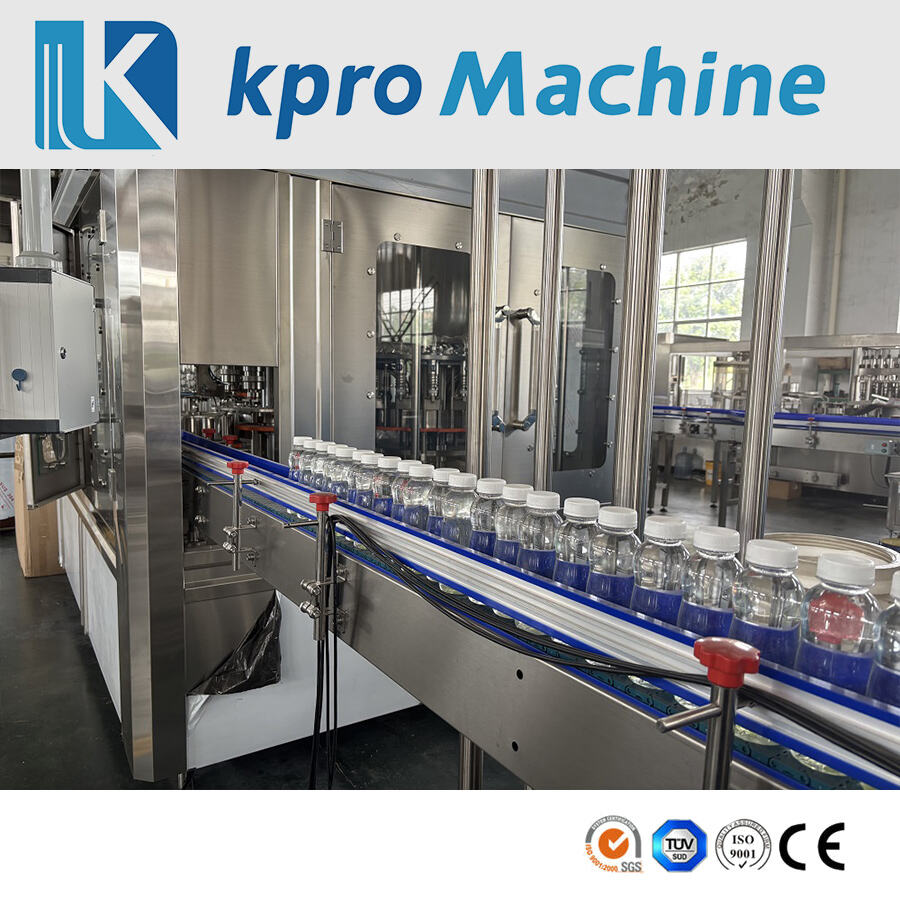

Filling and Packing Line
Washing, Filling, Capping → Conveyor →Light checker→ Labeling machine→Code sprayer→PE film packing machine→Stock
Bottle Making Machine
PET preforms → Bottle blow molding machine → Finished Bottles
1) The overall appearance is comfortable, and the window-type structure can be used to keep an eye on the movement of the machine. If there is a problem, the machine can be stopped and checked in time.
2) PLC controller, simple and easy to operate, designed for foreign friends, allowing customers to easily navigate.
3) The whole machine material is made of stainless steel 304/316, which is very strong and guarantees the quality.
4) High filling accuracy and small error, ensuring efficiency while ensuring efficiency.
5)Three-in-one filling, the finished product is short.
6) Fully automatic production, freeing hands, reducing labor required for production, saving costs and improving efficiency.
|
Model |
RCGF8-8-3 |
RCGF12-12-6 |
RCGF18-18-6 |
RCGF24-24-8 |
RCGF32-32-10 |
RCGF40-40-12 |
|
number of rinsing head |
8 |
12 |
18 |
24 |
32 |
40 |
|
number of filling head |
8 |
12 |
18 |
24 |
32 |
40 |
|
number of capping head |
3 |
6 |
6 |
8 |
10 |
12 |
|
rated production capacity(500ml)(BPH) |
1000-2000 |
2500-4000 |
6000-8000 |
8000-12000 |
12000-16000 |
16000-20000 |
|
installed capacity(KW) |
3 |
3.5 |
4 |
4.8 |
7.6 |
8.3 |
|
overall size(mm) L*W*H |
1900*1420*2000 |
2200*1600*2300 |
2450*1900*2300 |
2750*2180*2400 |
4000*2300*2300 |
4550*2650*2300 |
1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
2. Do you have any technical supports with your Plastic Bottle Juice Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.
