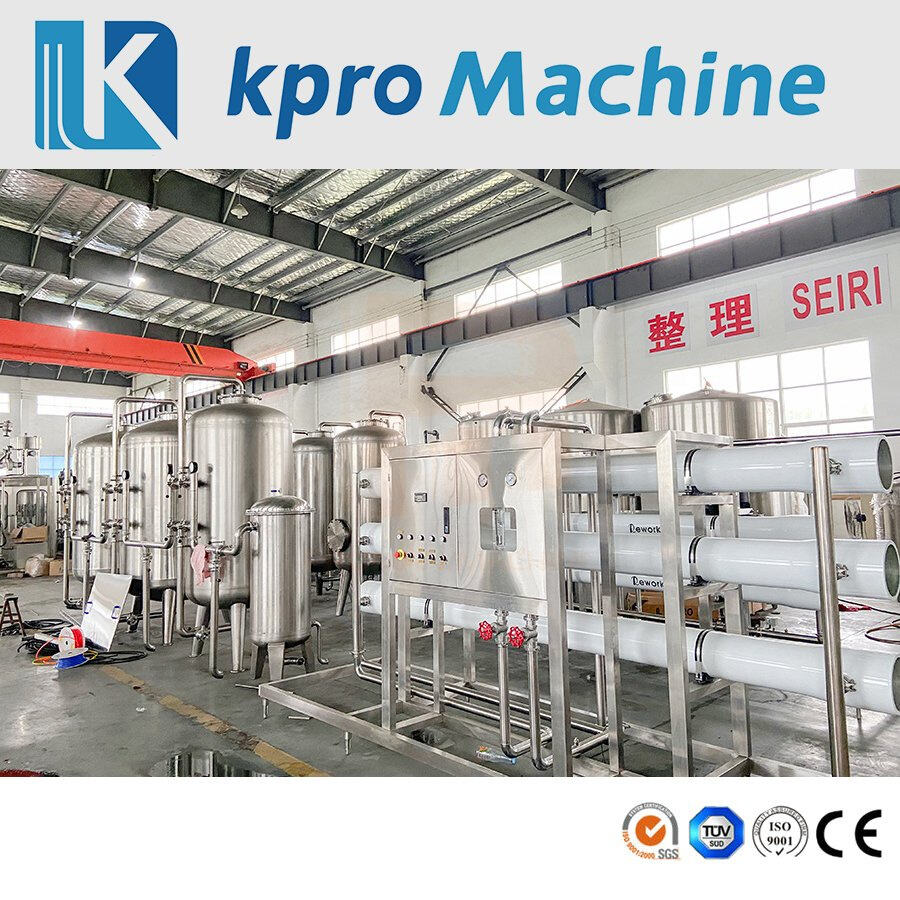

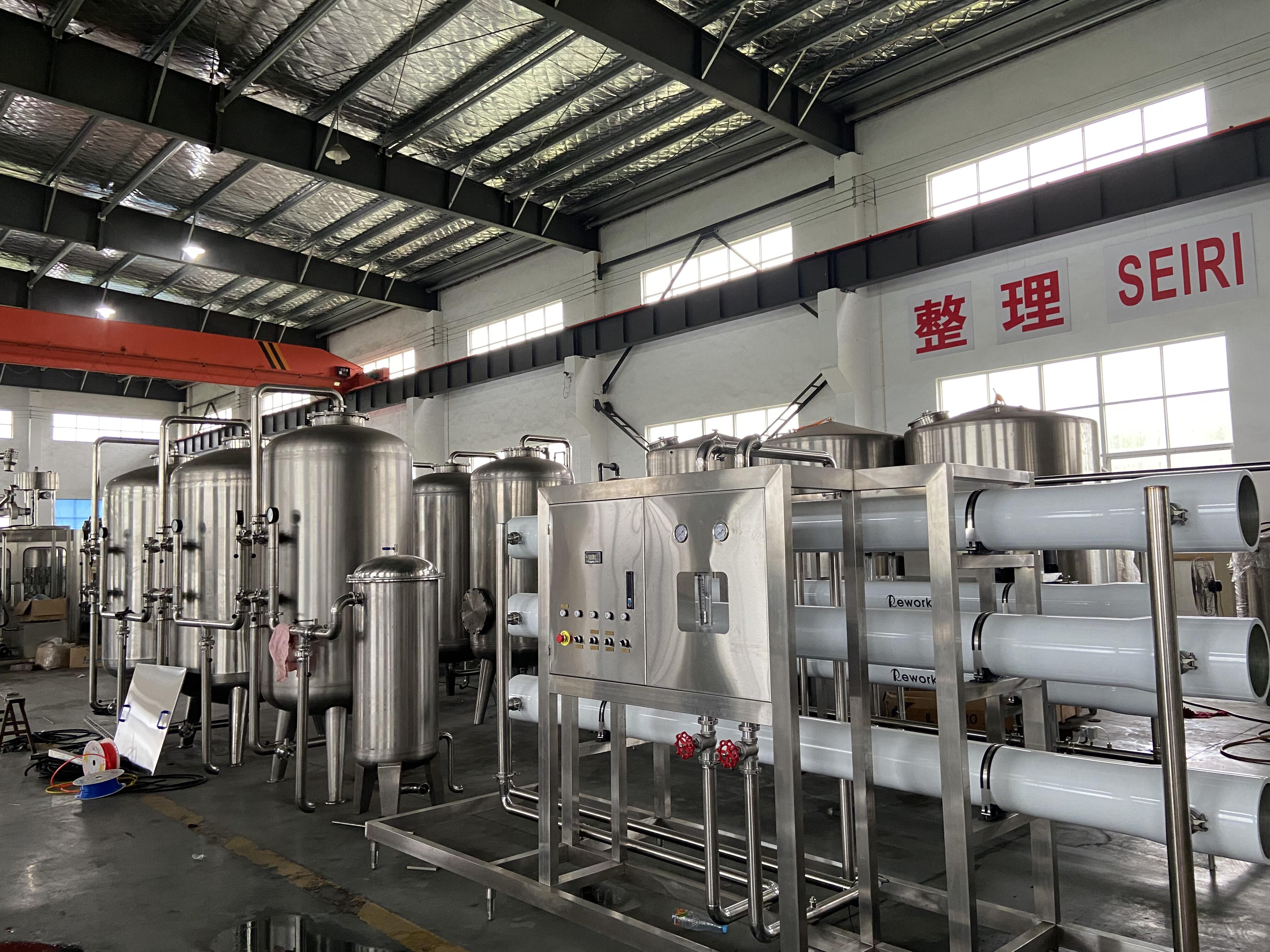

RO water treatment plant can treat tap water, well water, brackish water and mineral water. This water filter can be used for drinking water, bottled water and industrial. Water filter using the advanced skills of reverse osmosis to purifying water. The RO membrane of this water filter is American brand--Hydranautics, which is the best RO membrane brand in the world.

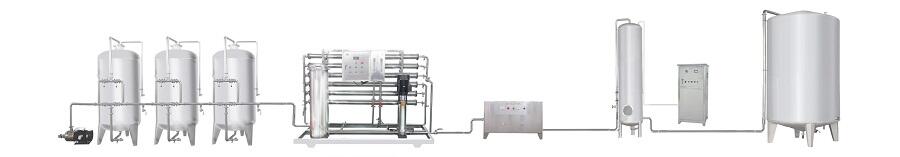

Raw Water tank→Silica sand filter→Active carbon filter→Sodium ion exchanger→Precision filter→Reverse Osmosis→Mixing Tower(UV Sterilize and Ozone Sterilize)→Water tank
Silica sand filter
It can remove the suspended solids and gluten particles in the water, thus reduce the turbidity of water.
Active carbon filter
It can remove the pigment, smell and a large number of biological organisms in the water
Sodium ion exchanger
It can remove calcium and magnesium ions in the water, so as to soften the water.
Precision filter
It can ensure that the granularity of the water into reverse osmosis membrane is less than 0.1um

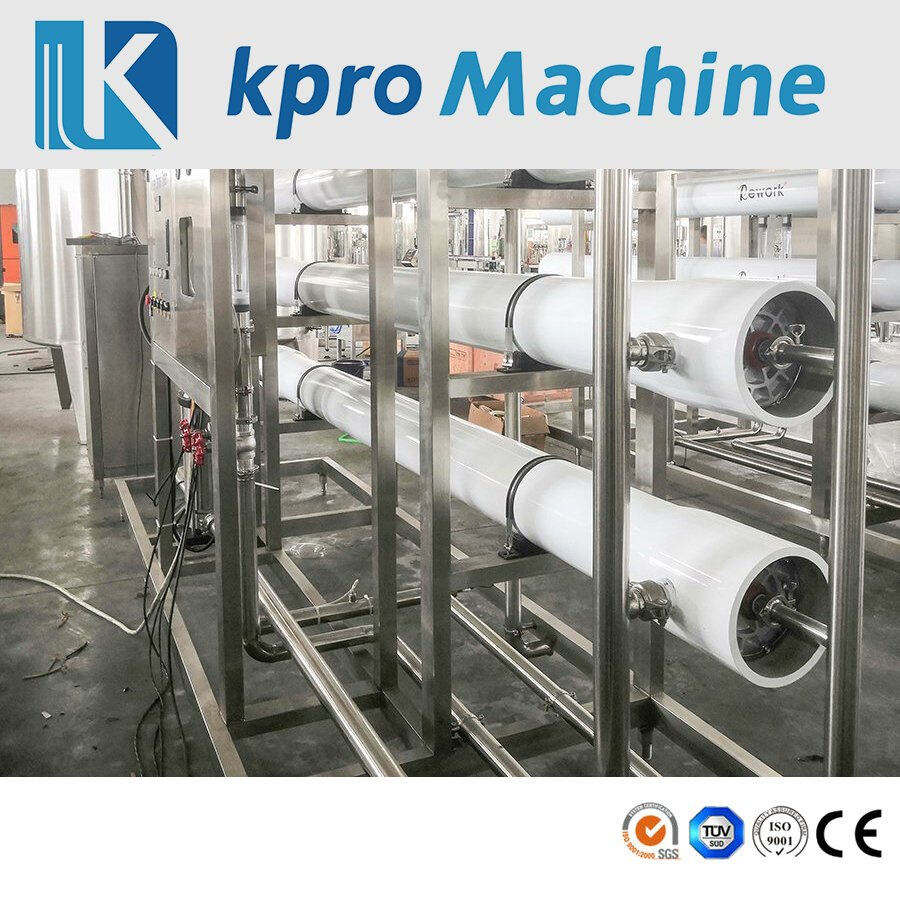

Reverse Osmosis
The Reverse Osmosis device is an equipment to purify the saline water with the action of pressure difference of semi-permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Difference materials have different osmotic pressures.The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid, microorganism, particles and organic materials, becoming the best first-choice choice equipment in the engineering of modern purified water, highly purified water and space water (super-purified water). The most highlighted features are low energy consumption, no pollution, simple technique, high-quality water and convenient operation and maintenance.
UV sterilizer
It uses the UV to kill some bacteria that may also pass through the reverse osmosis system.
Ozone sterilizer
Some bacteria may not be killed by UV, the sterilizer uses ozone to kill those bacteria.
1) Adopts imported RO membrane from America, which can remove 99.7% inorganic salt, heavy metal ion and completely get rid of colloid, microbiology organic materials, germ, protozoa, pathogens, bacteria, inorganic chemical and so on.
2) No need to add any chemicals, stable pure water quality, and no pollution drained, low produce cost.
3) Equipped with pre-treatment system, such as active carbon absorption filter and PP sediment filter.
4) 304 stainless steel rack and pipe accessories connection.

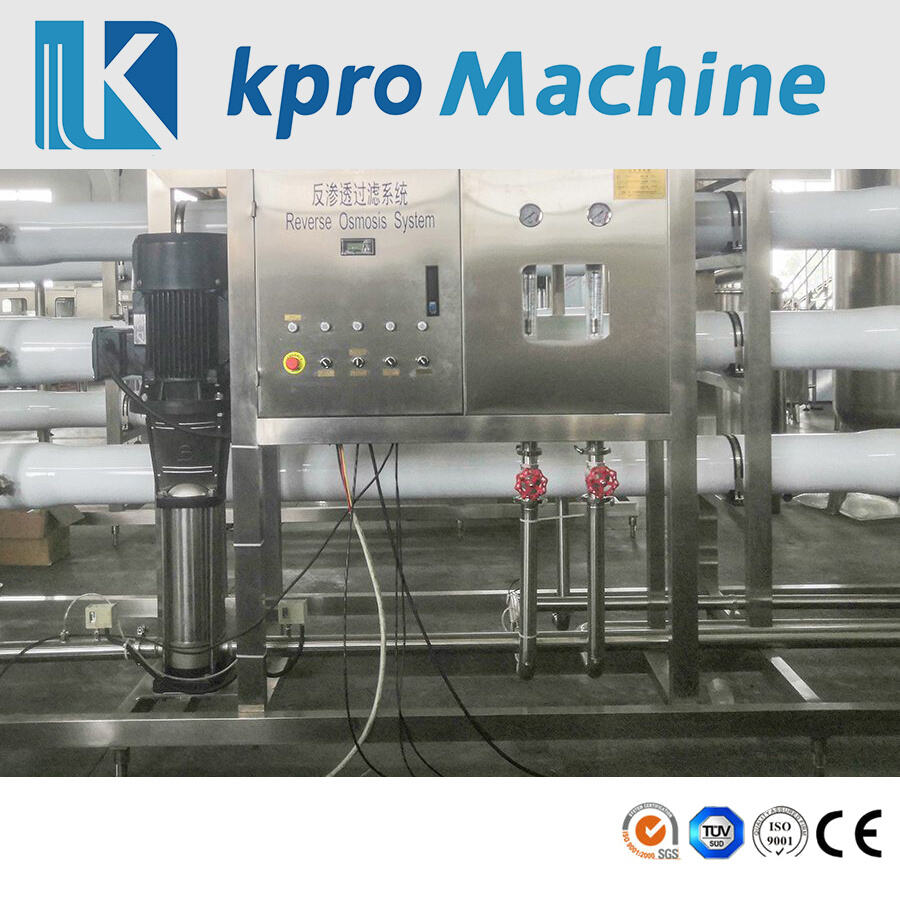

5) Equipped with auto pressure protection system and on -line monitor.
6) Automatically and manually wash RO membrane. Also the design of washing the RO membrane is by chemical solution (citric acid or sodium hydroxide optional).
7) The lifespan of the whole system is long, operation simple, the applicability is strong
|
Model |
RO-1000 |
RO-2000 |
RO-3000 |
RO-5000 |
RO-7000 |
RO-10000 |
|
Capacity(t/h) |
1 |
2 |
3 |
5 |
7 |
10 |
|
Power(kw) |
1.5 |
2.2 |
3 |
5.5 |
7.5 |
11 |
|
Desalt rate |
99.9% |
|||||
|
Rate of recovery |
50%-60% |
|||||
|
Items |
Commodity |
Origin /brand |
Quantity |
|
1 |
Raw Water Tank |
China |
1 Set |
|
2 |
Raw water pump 304 stainless steel |
China Nanfang |
1 Set |
|
3 |
Silica Sand Filter |
Kpro |
1 Set |
|
4 |
Activated Carbon Filter |
Kpro |
1 Set |
|
5 |
Sodium Ion Exchanger |
Kpro |
1 Set |
|
6 |
Micron Filter |
Kpro |
1 Set |
|
7 |

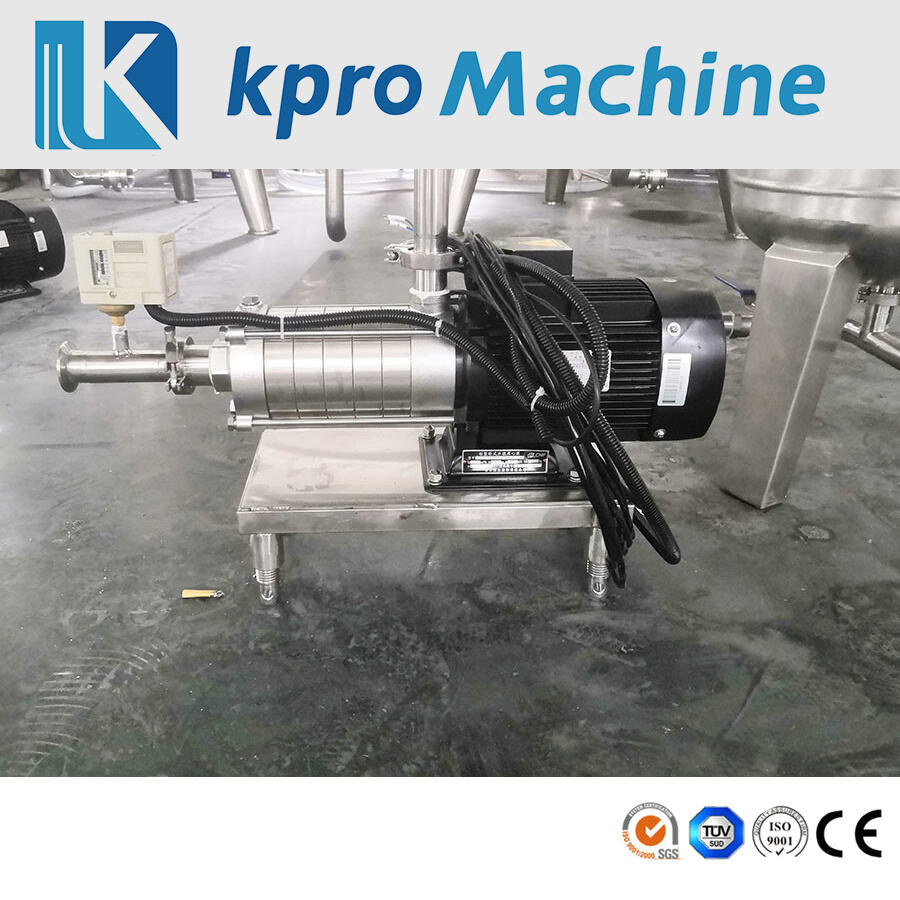

One-stage High Pressure Pump 304 stainless steel |
China Nanfang |
1 Set |
|
8 |
One-stage Reverse Osmosis Water Treatment System Production capacity: 2m3/h, Desalination rate: 97~99% |
1 Set |
|
|
9 |

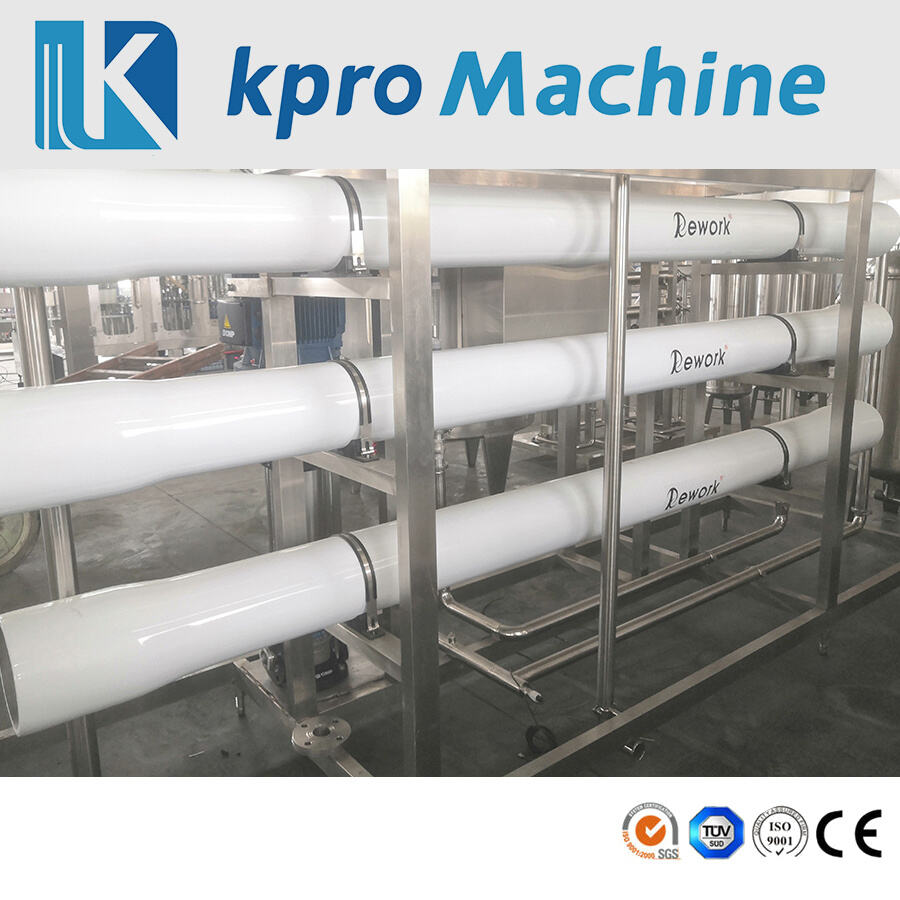

Membrane husing assembly 4040-1 Material: SS304 |
USA Origin Hydranautics |
8PCS |
|
10 |
PH Regulators Dosing system |
SEKO |
1 Set |
|
11 |
Ozone Sterilizer SUS 304 |
Kpro |
1 Set |
|
12 |
UV sterilizer SUS 304 |
Kpro |
1 Set |
|
13 |
Connection Fittings. Valves - Food Grade |
China |
1 Set |
|
14 |
Pressure gauge |
China |
1 Set |
|
15 |
Finish Water Tank |
China |
1 Set |
1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
2. Do you have any technical supports with your Plastic Bottle Water Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.
