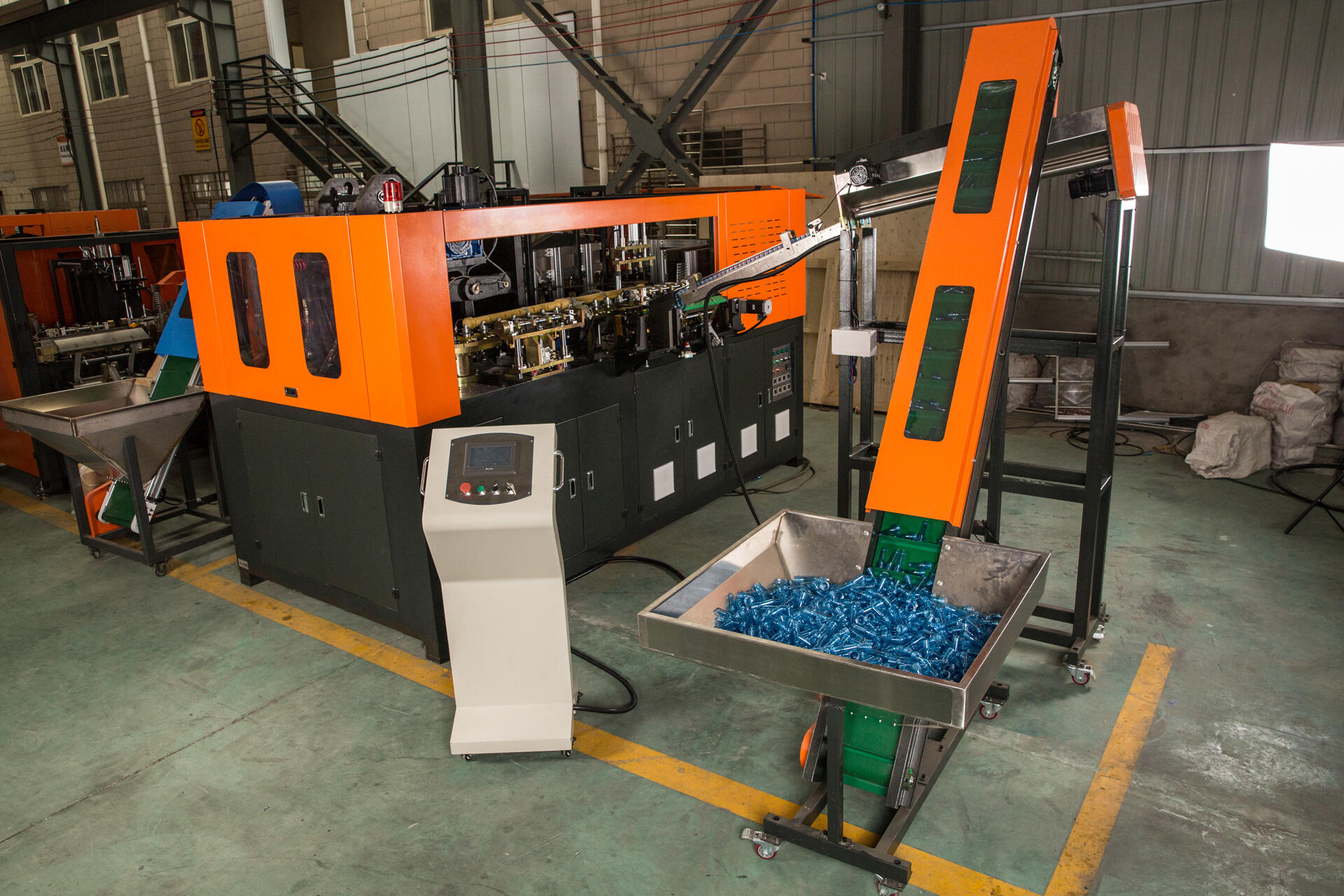

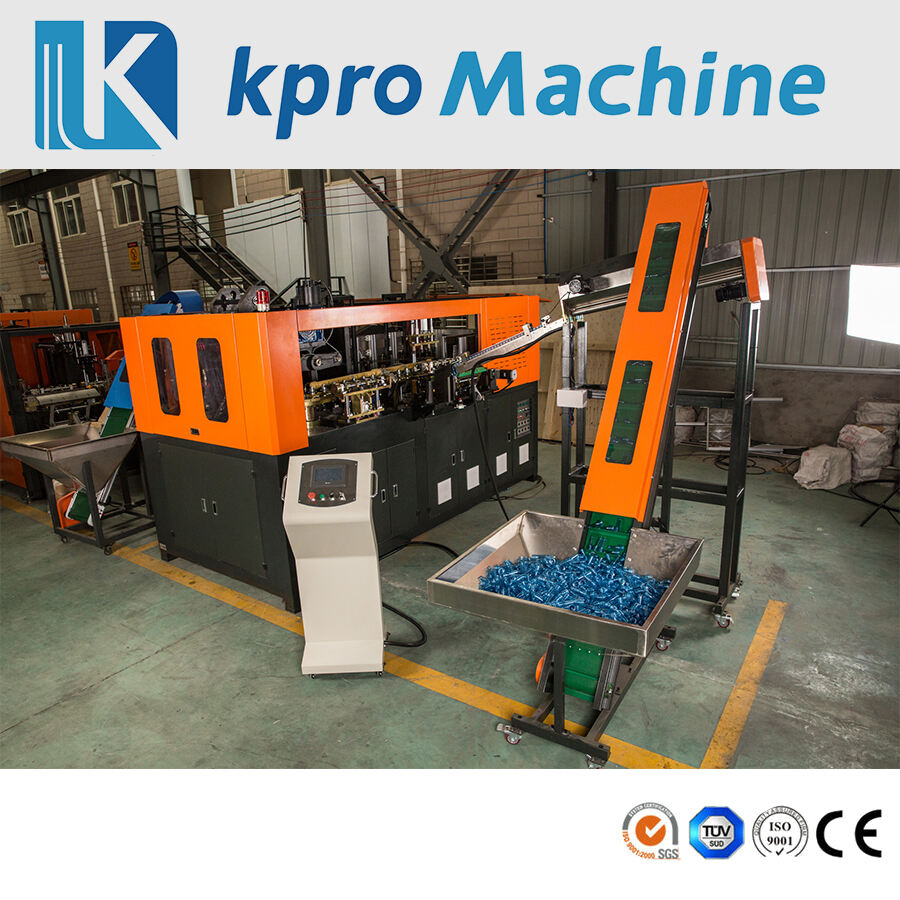

The PET bottle blowing machine plastic bottle machine is suitable for the production of 0.1-2.0L plastic containers and round and square bottles.

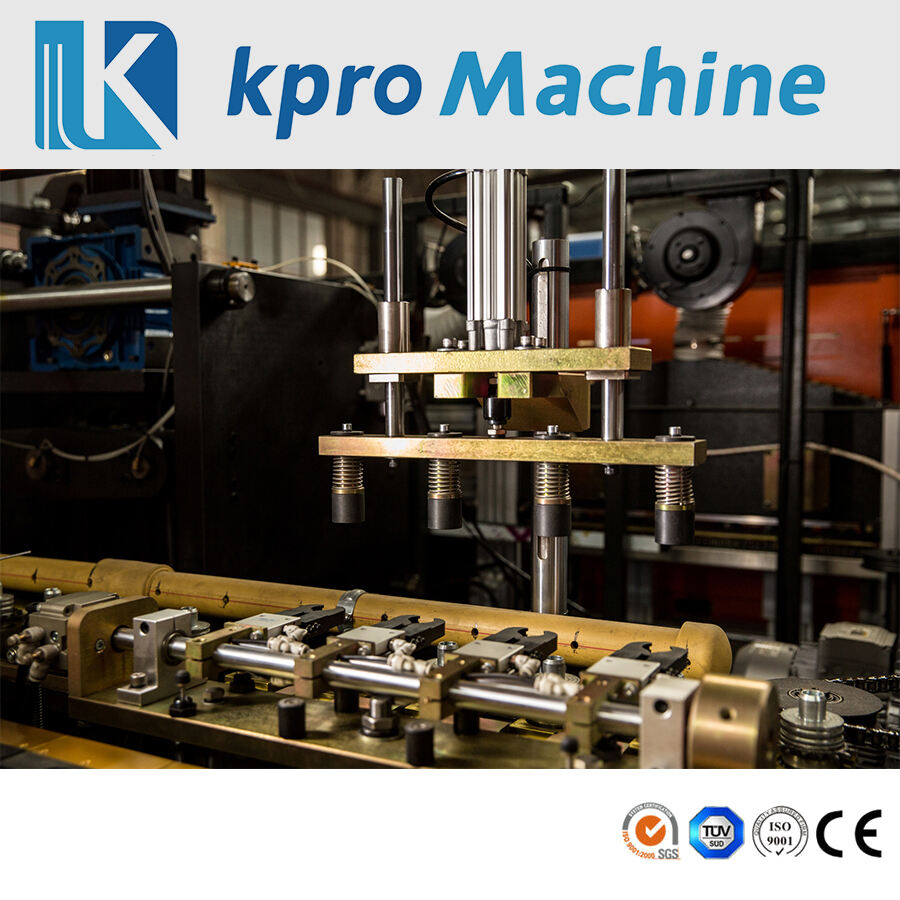

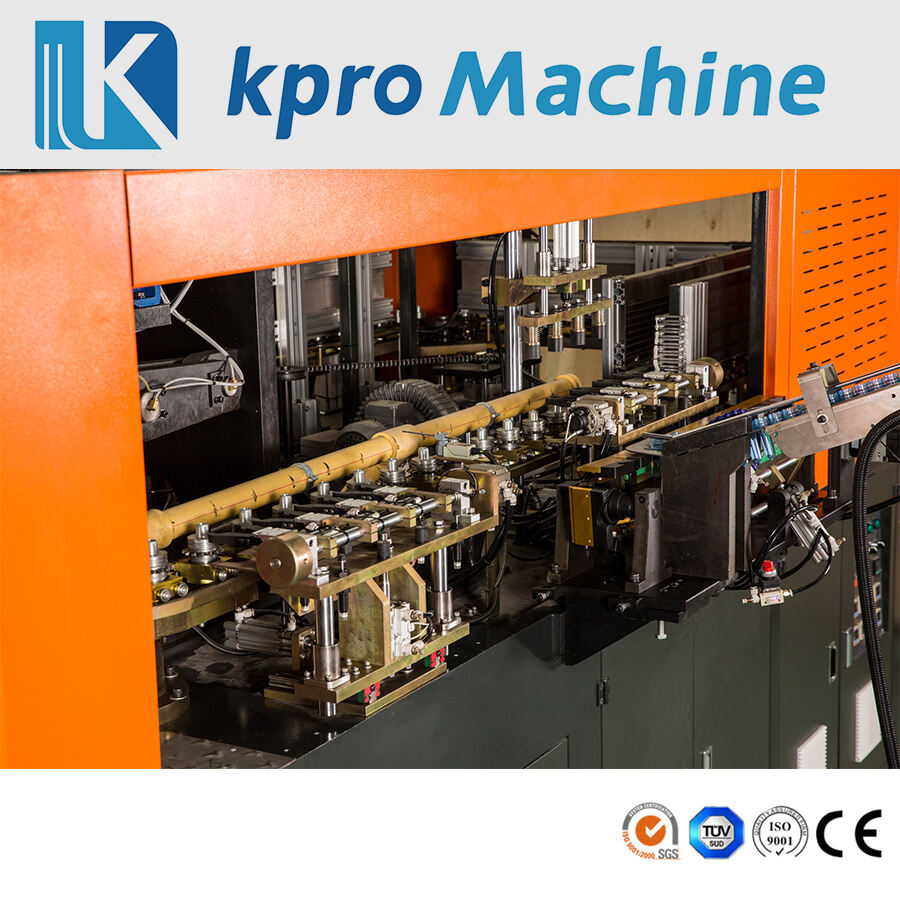

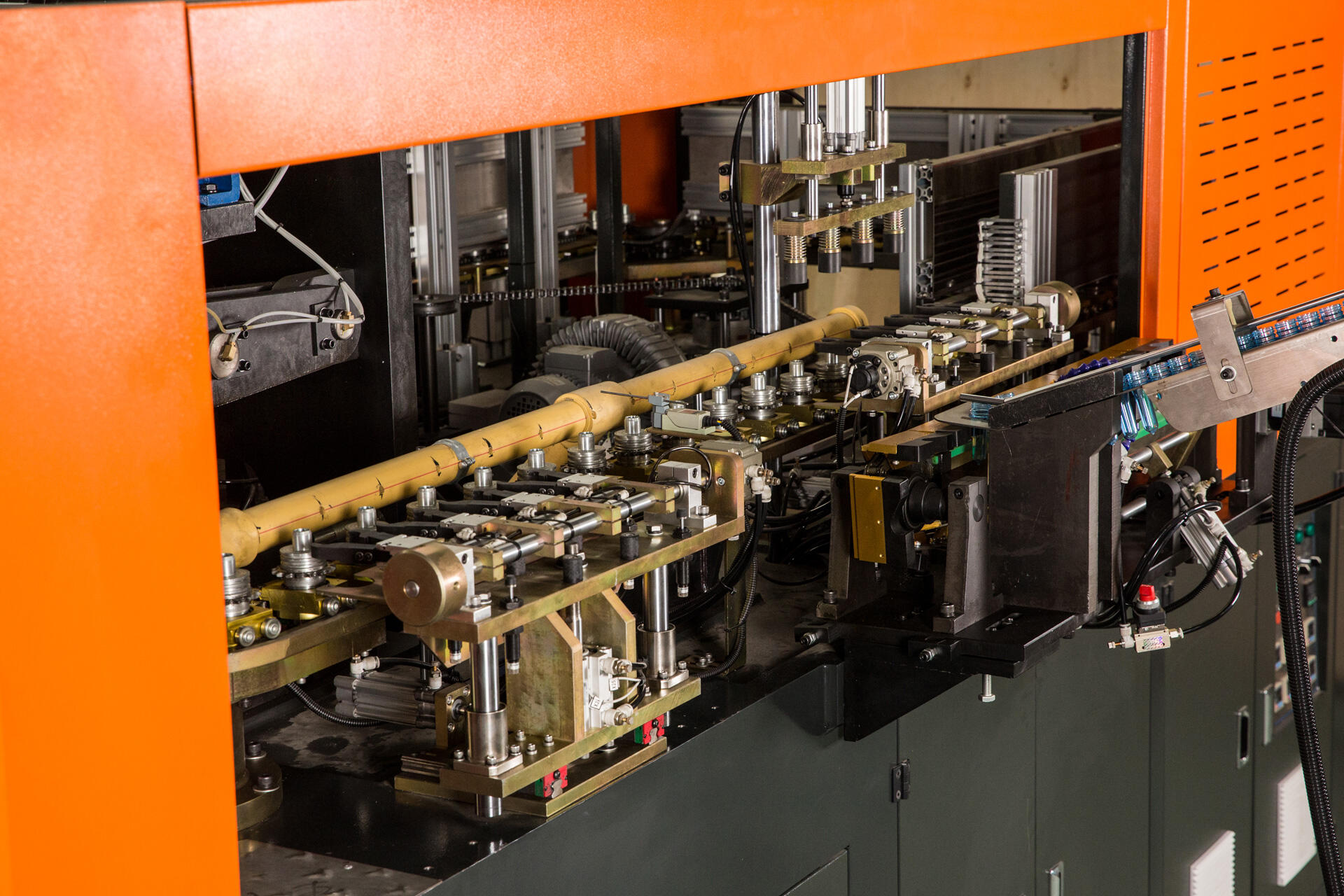

PM series pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine.
It has 4 cavities and the maximum capacity can reach 6000 bottles per hour.
It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers etc.
1.Automatic perform input and ready bottle output system.
2.Machine adopt with the overall structure of super-standard anti-vibration design, high-speed operation state of the machine will shake down to a minimum.
3.Machine adopts modular assembly method, greatly decrease the local amendments due to technological improvements when the machine is on processing.
4.The structure of machine oven adopt the international most advanced energy-saving technology of infrared radiation heating, temperature control with automatic negative feedback, closed-loop regulation model.
5.Automation controlling item adopts international high-end computer system, heating, collecting and measuring perform temperature with simulation input and output module.
6.Man-machine interface displays current production situation, available for on line switching, parameter modification and production accounting, with automatic alarm, automatic fault detection and diagnose.
7.Storing more than 7 kinds specification for making bottle.
8.Adopt latest international air pneumatic.
9.In order to save air, we choose high pressure blowing exhaust recovery system, which can save energy by 10-15%.
|
Model |
PM-A4 |
|
Productivity |
4000-6000 B/H |
|
Volume |
0.1-2 L |
|
Bottle Diameter |
≤105 mm |
|
Bottle Height |
≤330 mm |
|
Neck Diameter |
28-38 mm |
|
Cavity |
4 |
|
Rated power |
52 KW |
|
Really use power |
30 KW |
|
Size(L*W*H) |
4100x1600x1900 mm |
|
Weight |
4000 KG |
1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
2. Do you have any technical supports with your Plastic Bottle Water Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
