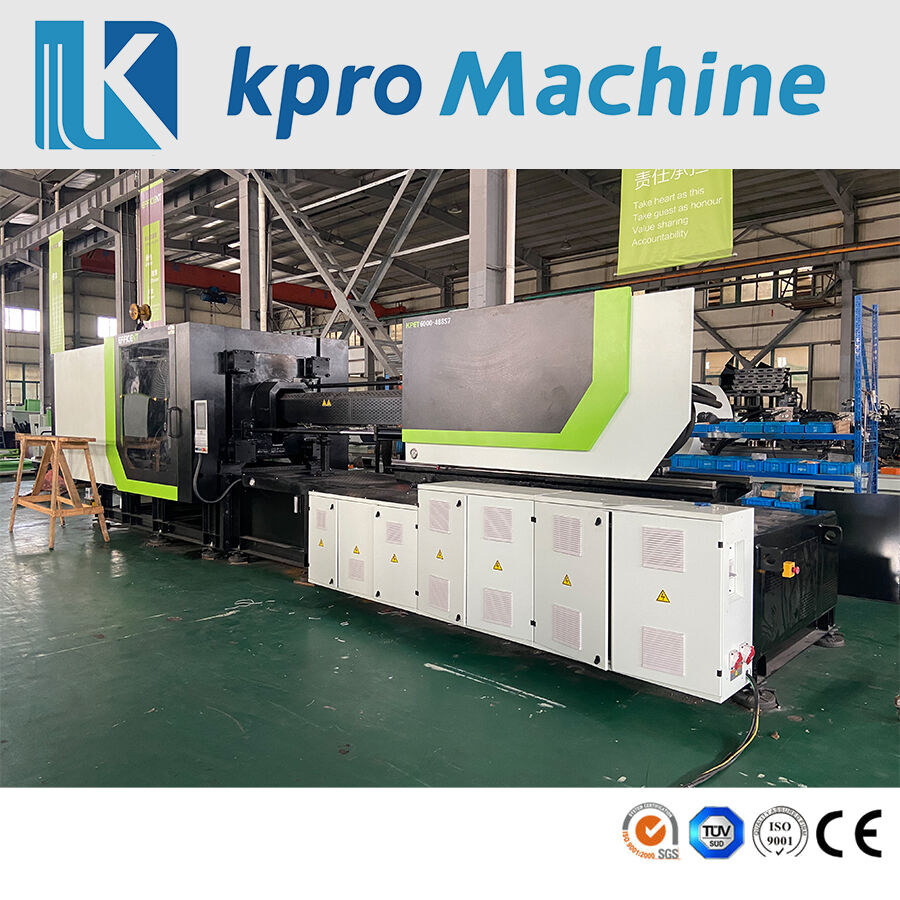

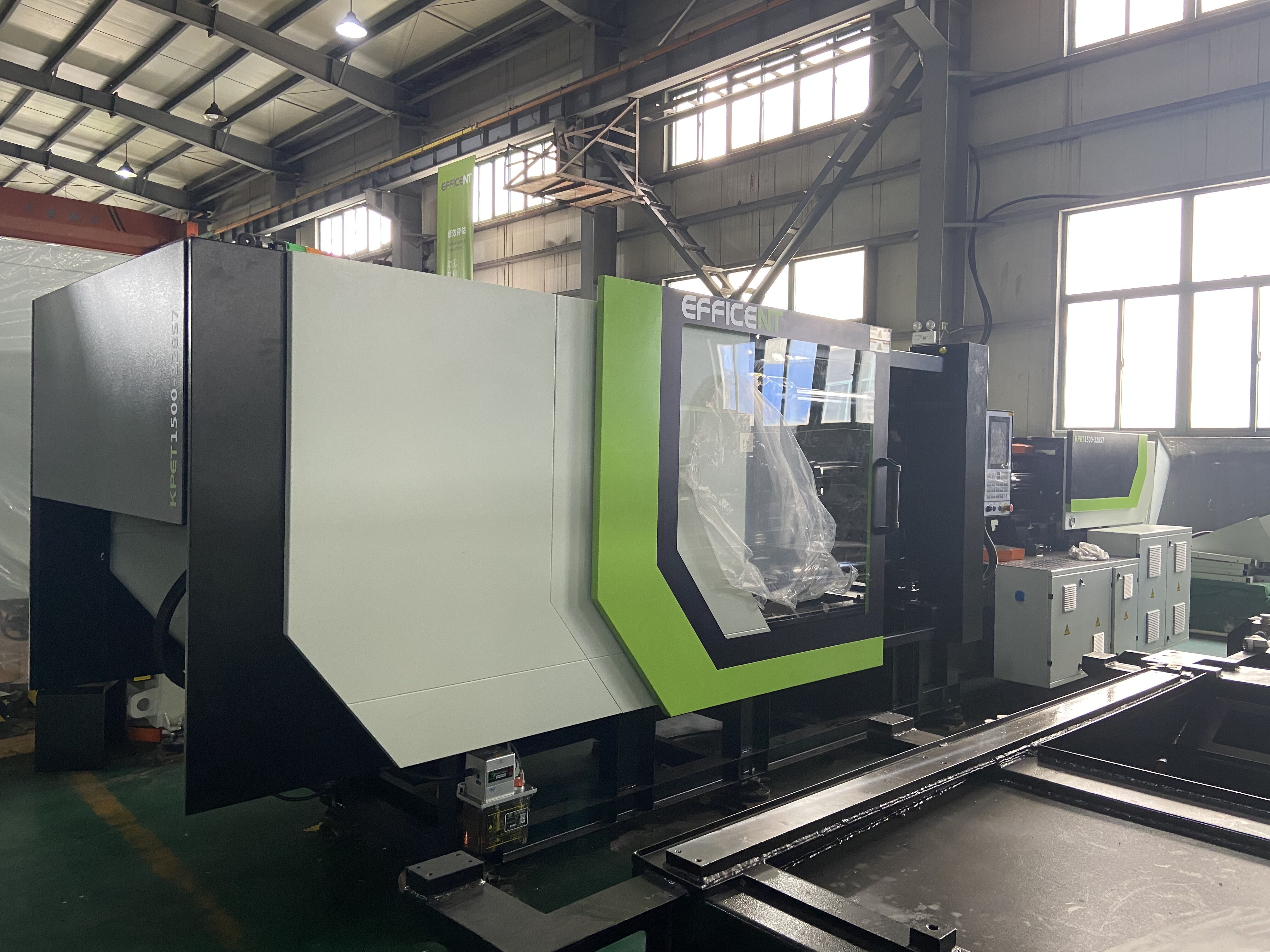

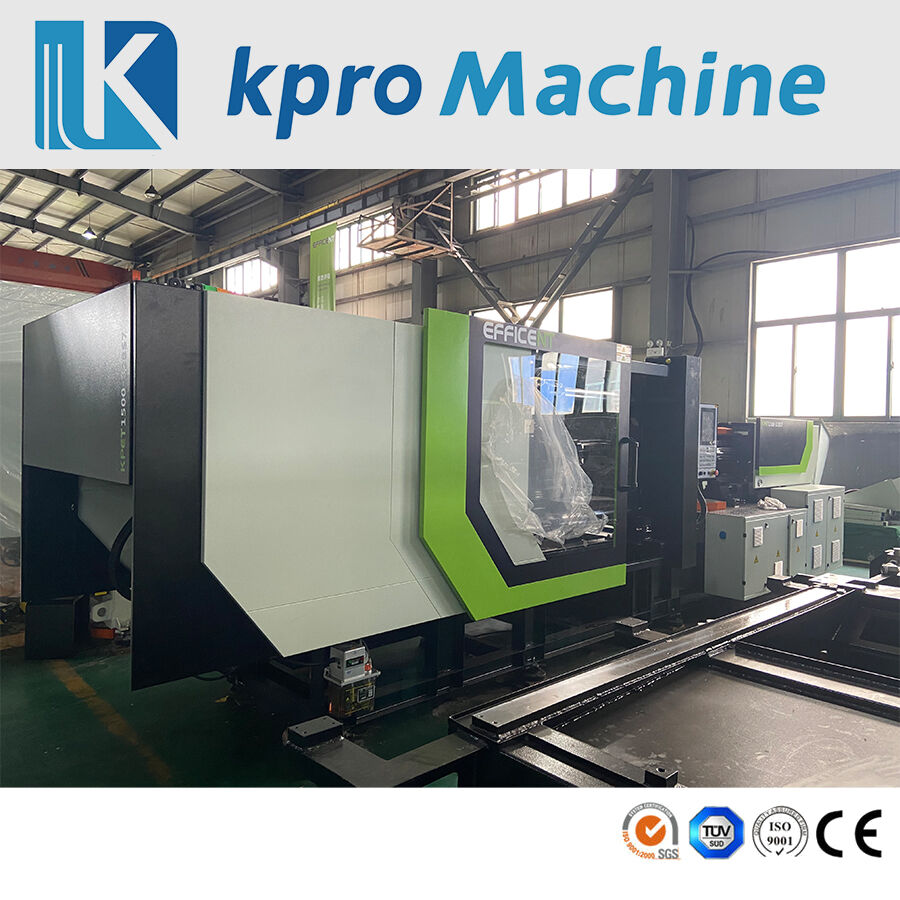

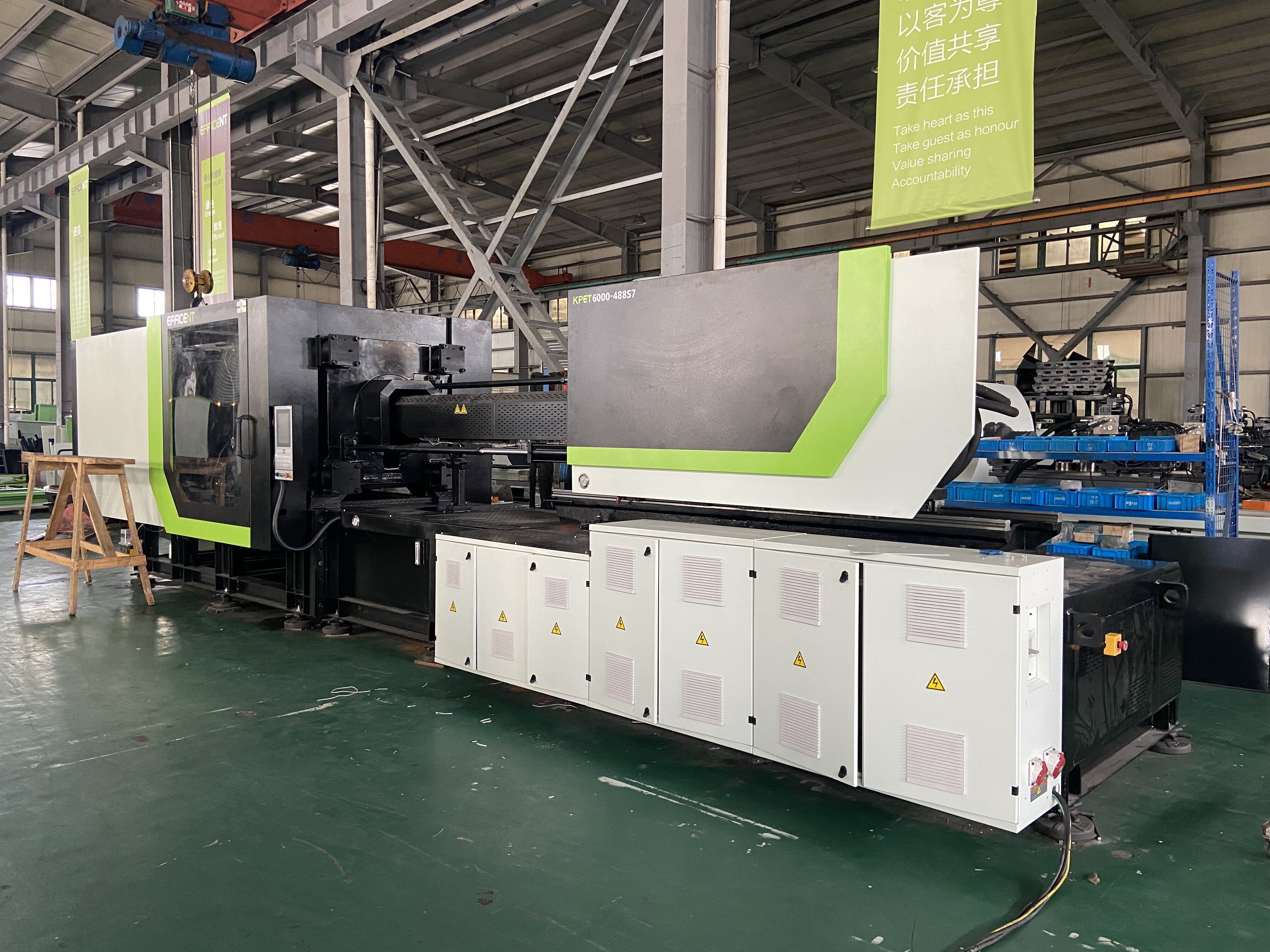

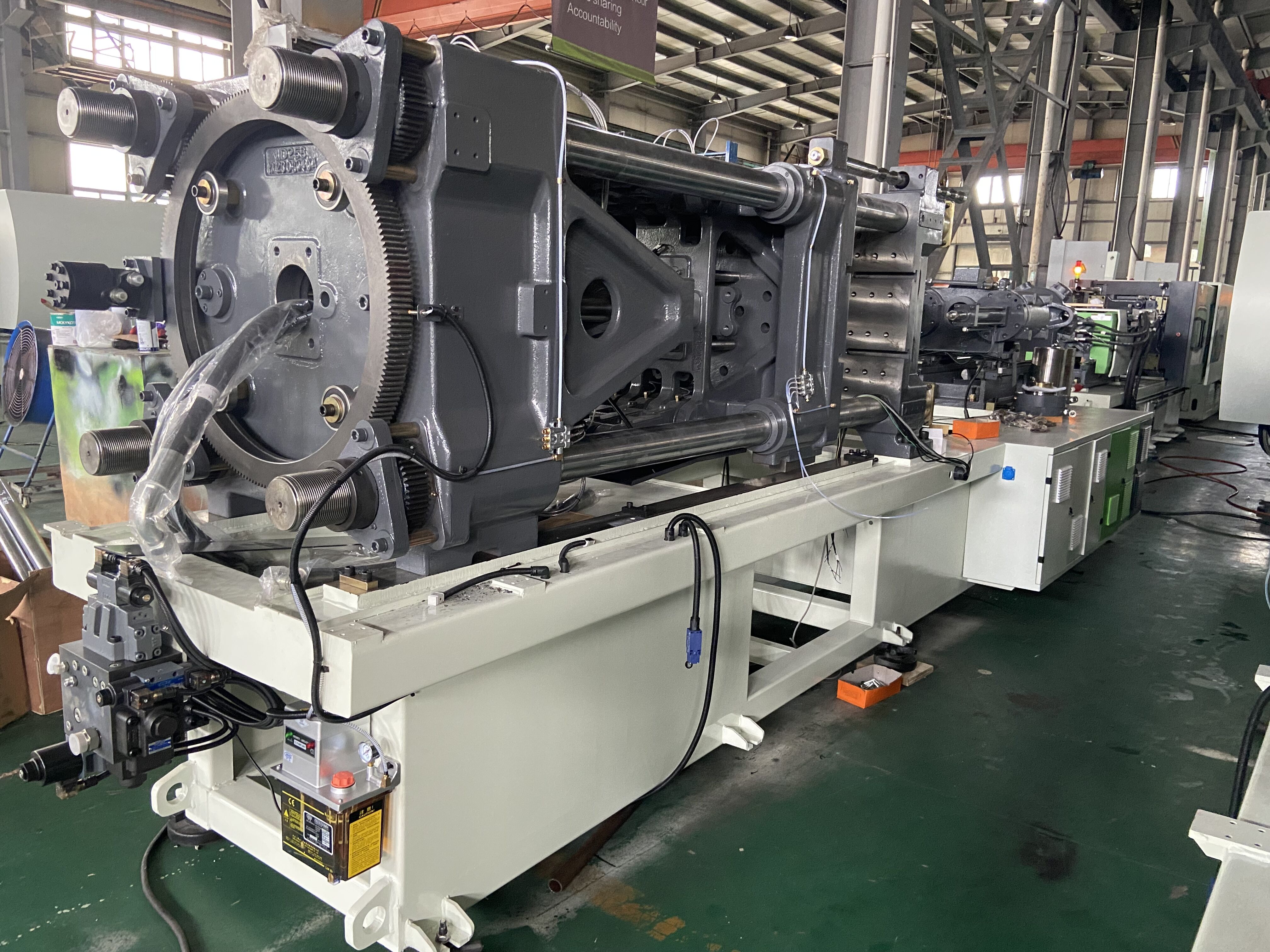

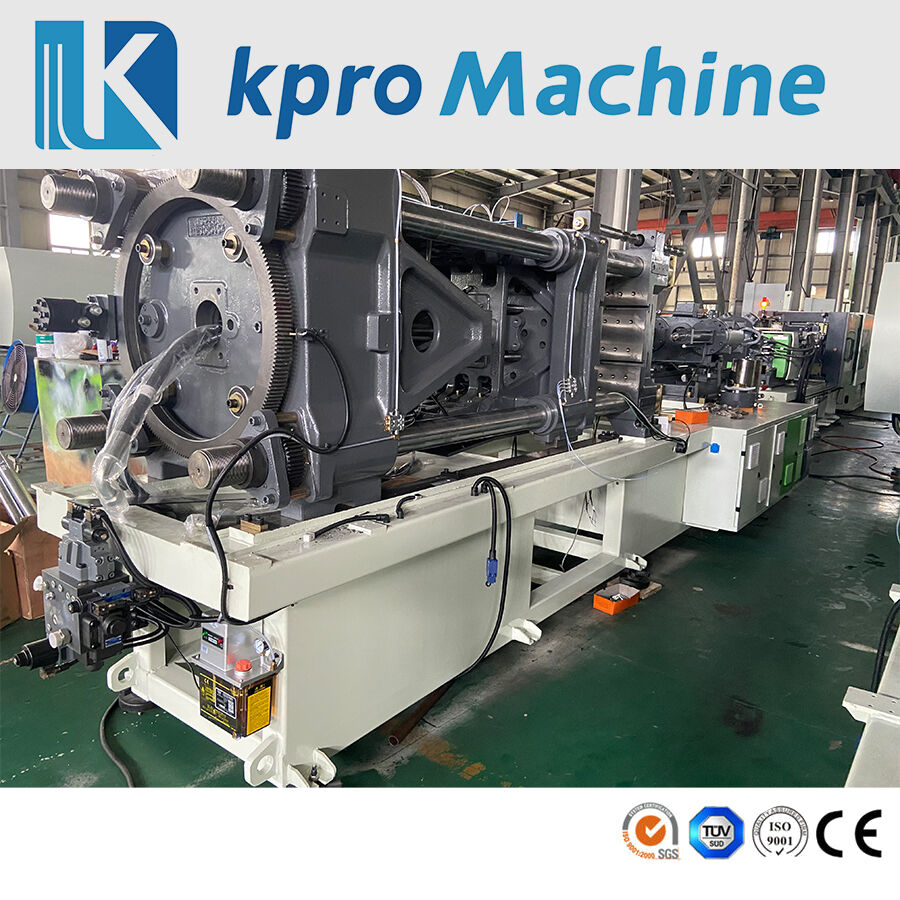

Our automatic plastic perform and cap injection molding machine adopts a thermal flow system and high-pressure injection molding to get high precision of bottle mouth, bottleneck and screw. It can inject all kinds of plastic parts such as bottle preform, engineering plastic, UPVC, PVC, PE pipes fitting, pomponents for automotive, household, eletronics, telecommunication, etc.
1. Even the mainframe has no height limit for the workshop to be placed due to its low fuselage.
2. The product can be automatically dropped occasions, do not need to use a manipulator can also achieve automatic molding.
3. Because of the low fuselage, it is convenient for feeding and maintenance.
4. The mold shall be installed by crane.
5. The molding products are easy to be collected and packed by the conveyor belt when multiple sets are arranged in parallel.
|
Item |
PM-KPET3100/488S7 |
|
screw diameter (mm) |
95 |
|
screw l/d ratio (l/d) |
25 |
|
theoretical shot volume (cm³) |
2586 |
|
shot weight (ps) (g) |
3103 |
|
injection pressure (mpa) |
105 |
|
injection rare (g/s) |
972 |
|
Max.Clamping force(kn) |
4880 |
|
Max.Opening stroke (mm) |
700 |
|
space between (mm) |
830*830 |
|
max mold thickness (mm) |
780 |
|
min mold thickness (mm) |
350 |
|
pump motor power (kw) |
72 |
|
heating power (kw) |
45.3 |
|
net weight |
18.9 |
|
machine outside size (mm) |
8900*2100*2200 |
1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
2. Do you have any technical supports with your Detergent Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.
