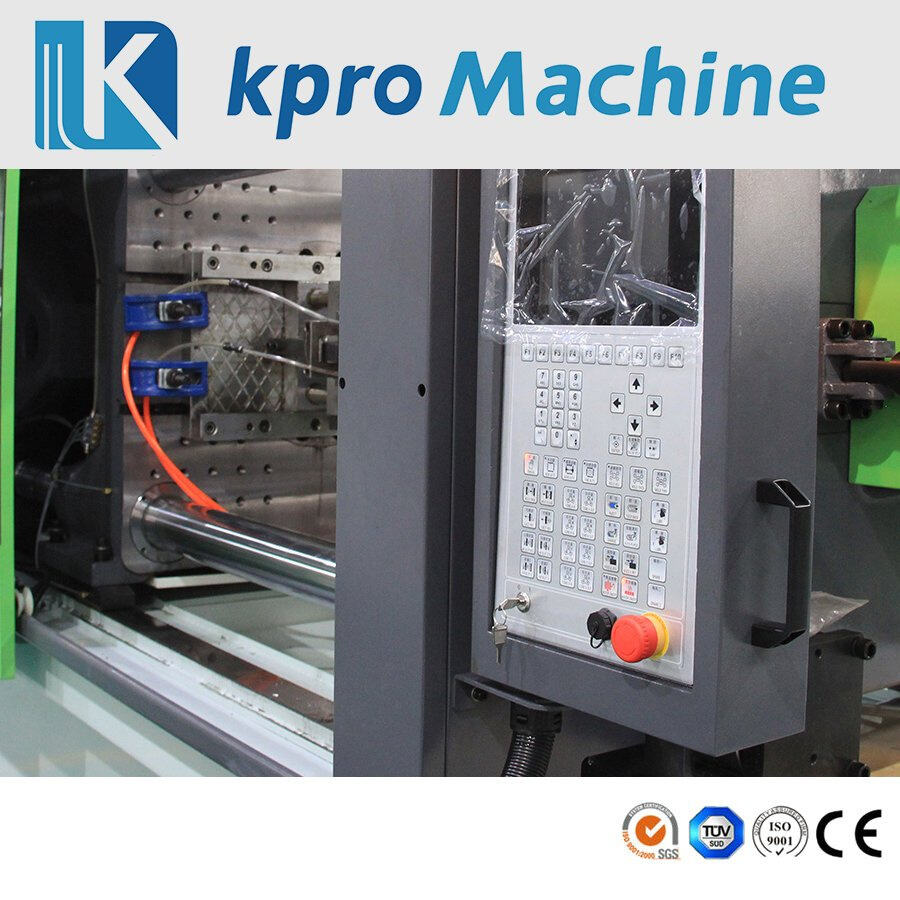

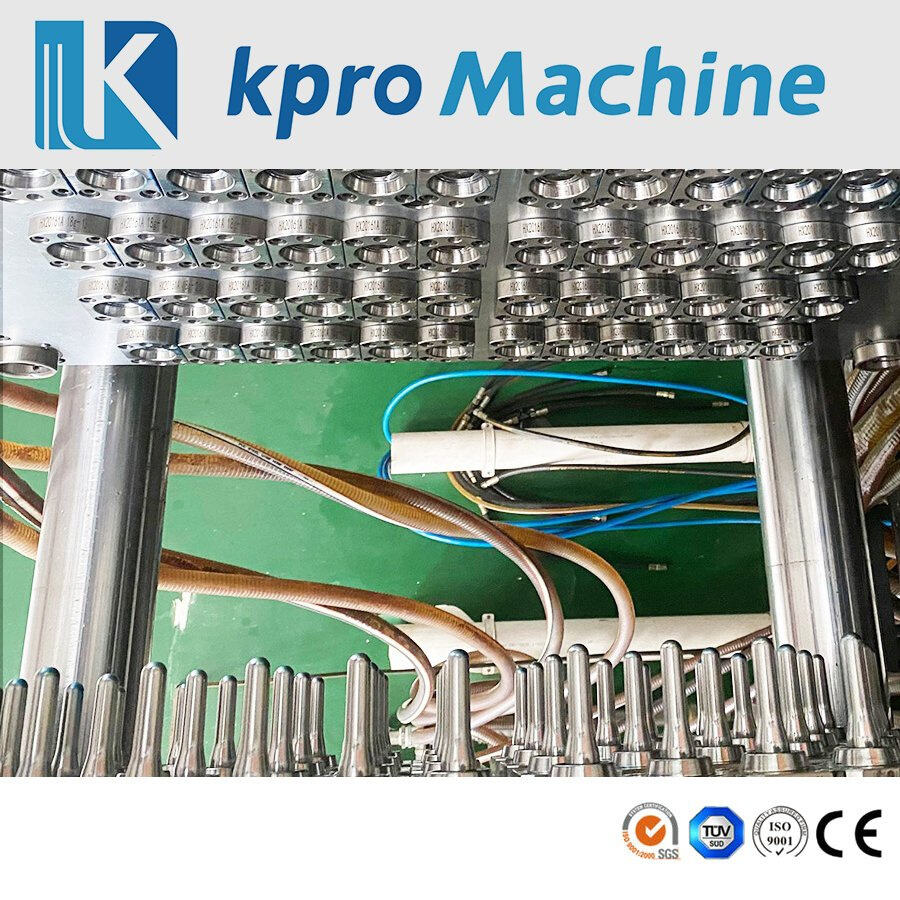

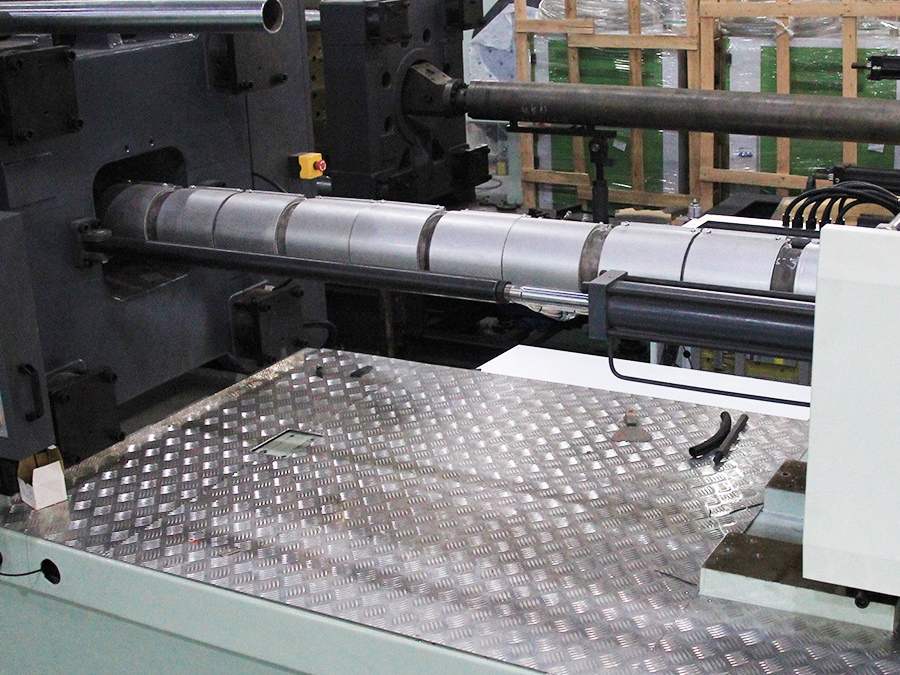

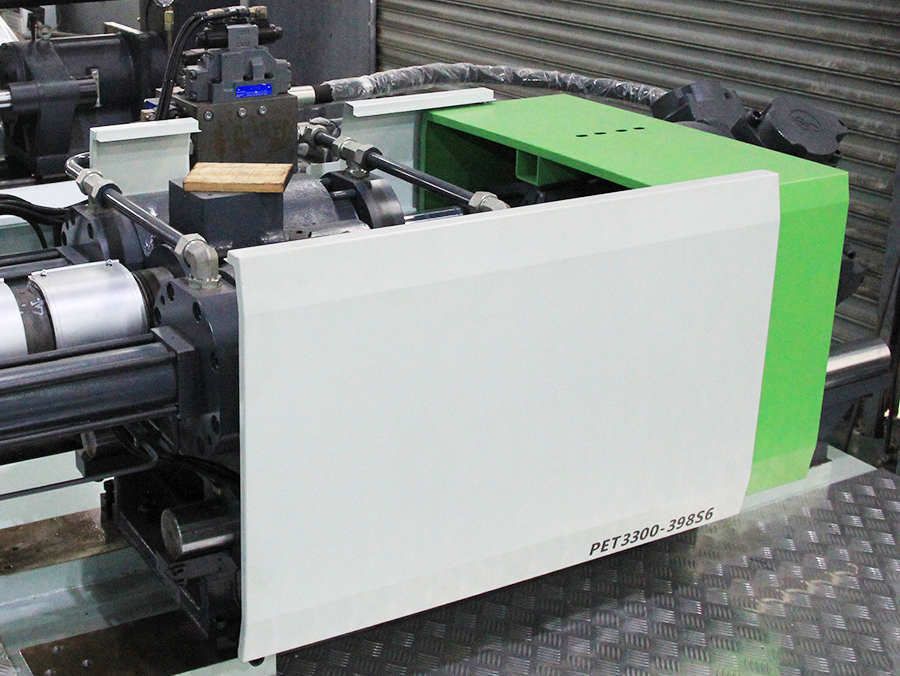

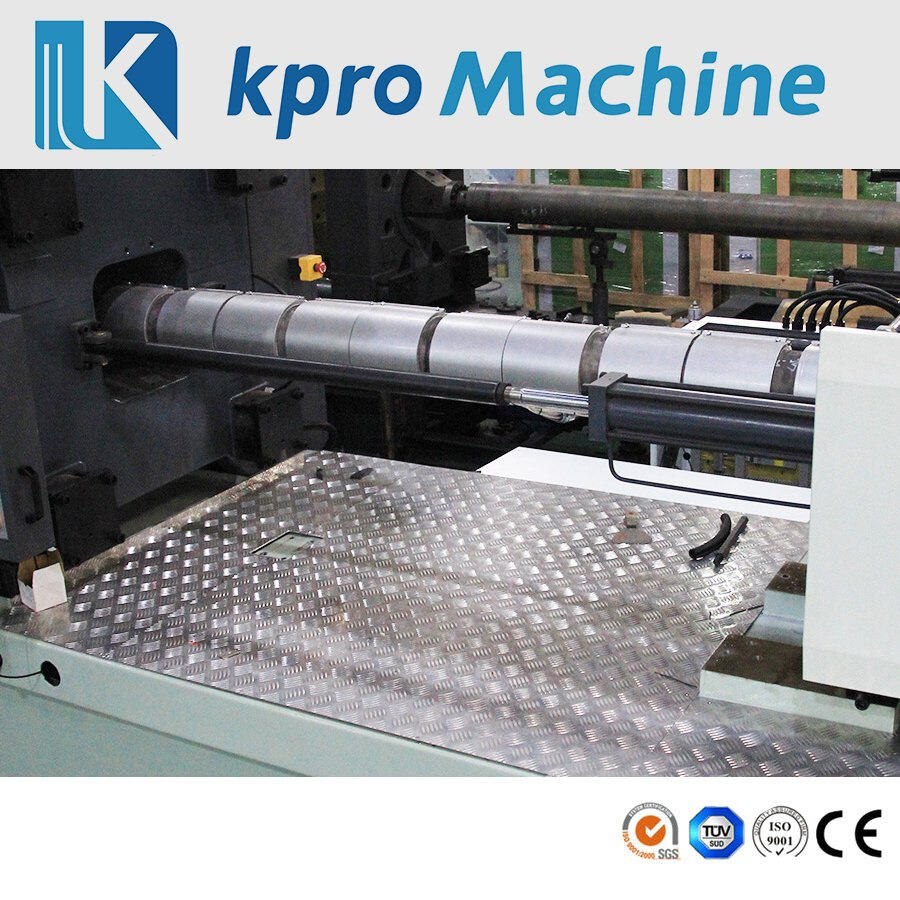

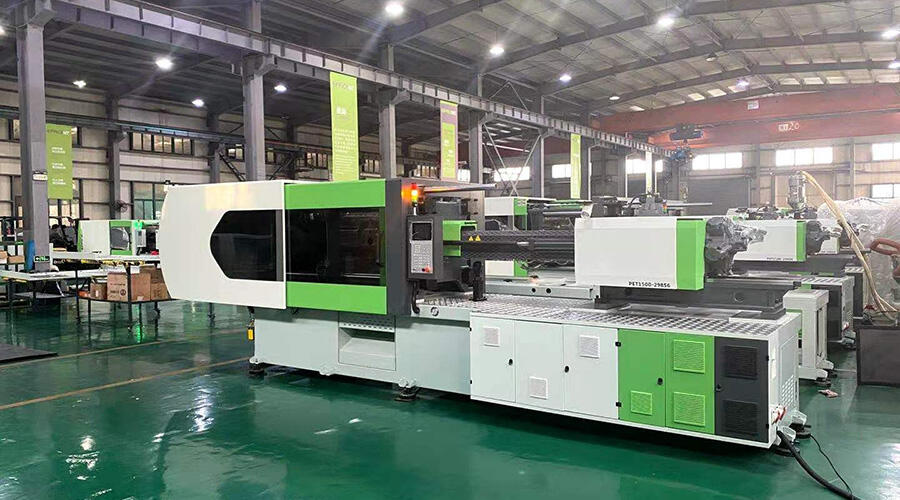

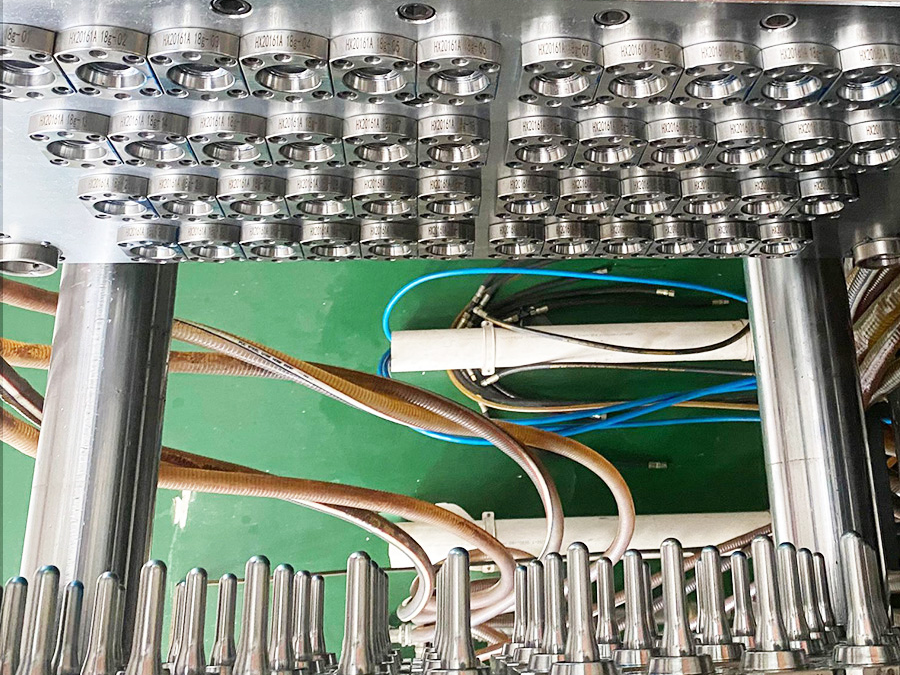

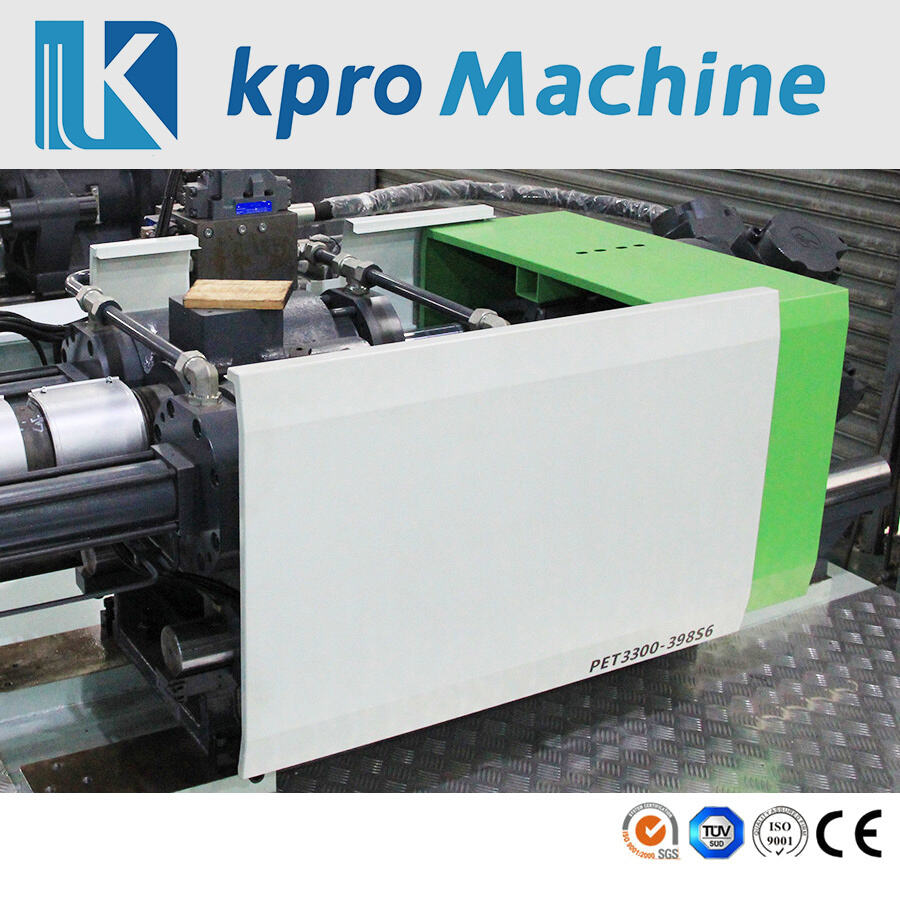

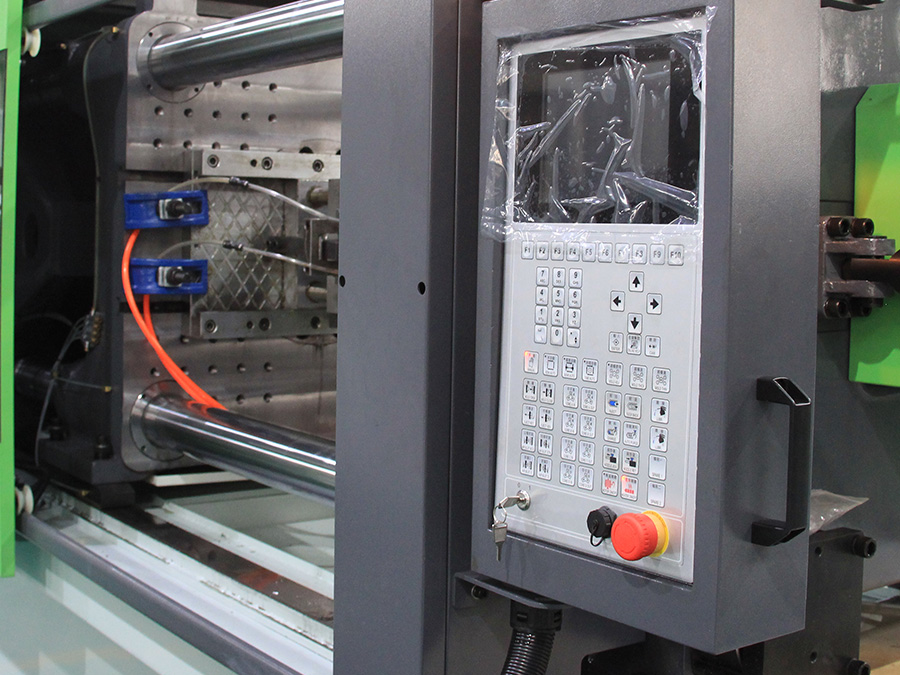

Our automatic plastic perform and cap injection molding machine adopts a thermal flow system and high-pressure injection molding to get high precision of bottle mouth, bottleneck and screw. It can inject all kinds of plastic parts such as bottle preform, engineering plastic, UPVC, PVC, PE pipes fitting, pomponents for automotive, household, eletronics, telecommunication, etc.
Advantages of Our OPP Labeling Machine:
1. Even the mainframe has no height limit for the workshop to be placed due to its low fuselage.
2. The product can be automatically dropped occasions, do not need to use a manipulator can also achieve automatic molding.
3. Because of the low fuselage, it is convenient for feeding and maintenance.
4. The mold shall be installed by crane.
5. The molding products are easy to be collected and packed by the conveyor belt when multiple sets are arranged in parallel.
|
Item |
PM-260 |
|
screw diameter (mm) |
55 |
|
screw l/d ratio (l/d) |
21 |
|
theoretical shot volume (cm³) |
653 |
|
shot weight (ps) (g) |
595 |
|
injection pressure (mpa) |
169 |
|
screw speed (rpm) |
180 |
|
Max.Clamping force(kn) |
2600 |
|
Max.Opening stroke (mm) |
540 |
|
space between (mm) |
580*580 |
|
max mold thickness (mm) |
600 |
|
min mold thickness (mm) |
230 |
|
pump motor power (kw) |
22 |
|
heating power (kw) |
16.8 |
|
net weight |
8.2 |
|
machine outside size (mm) |
6000*1700*2100 |
