Our PVC sleeve labeling machine is applied for labeling for many types of products, such as bottle water, bottle juice, bottle carbonated soft drink, shampoo, shower gel, edible oil in glass bottles, PET bottles, PE bottles, PP bottles, etc. Using the principle of shrinkage of PVC labels. Suitable for the medium production capacity commodity's labeling.
1. Made of stainless steel and high quality aluminum alloy, the reasonable, intact frame, it is easy to adjust.
2. Don't need feet bolt, easy to move suitable for different place.

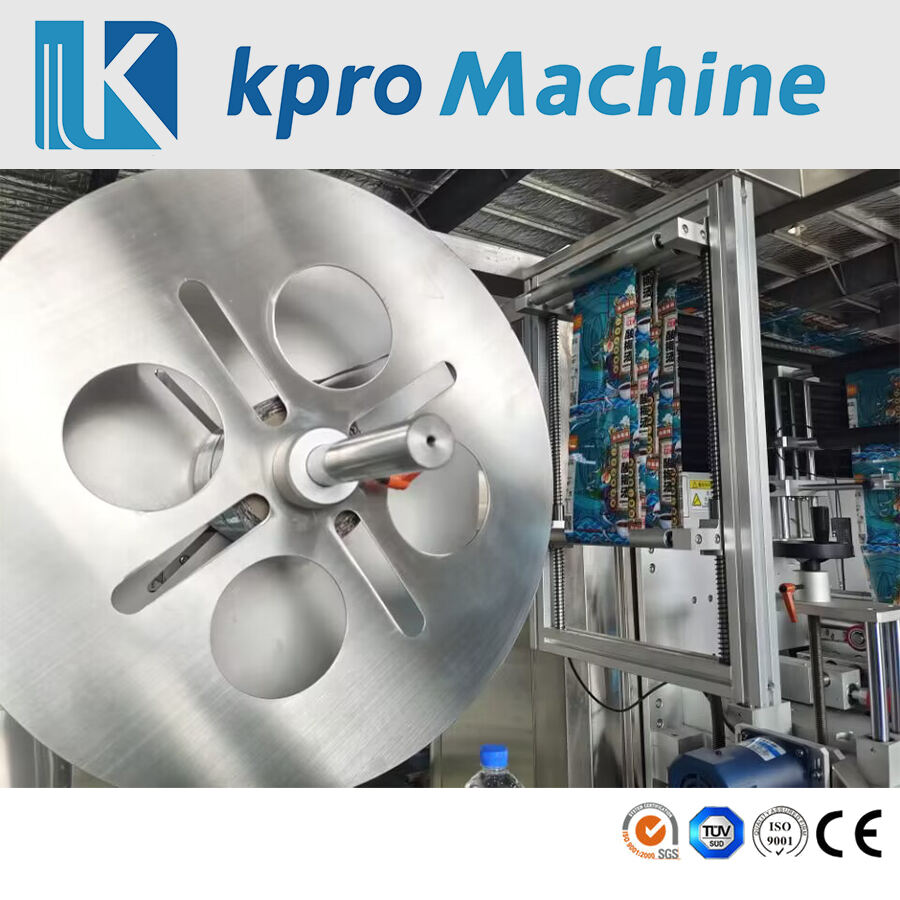

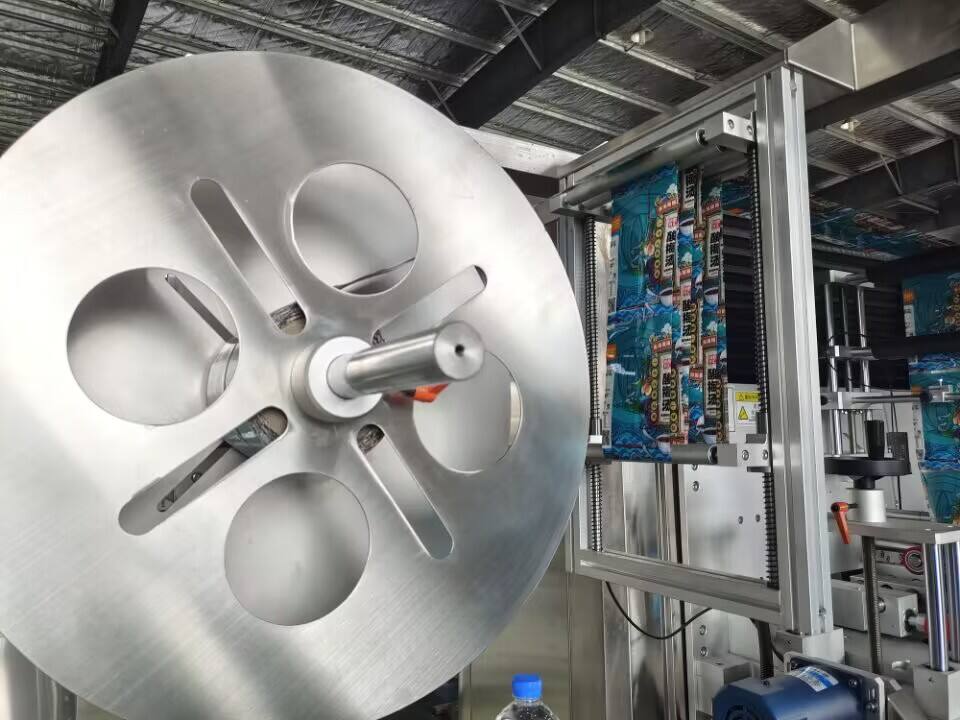

3. The shrinkable film roll with adjustable locking gear can be adjusted according to different roll 5'-10'
4. The applicable bottle is square bottle and round bottle
5. Without tools, the driven machinery can be adjusted to meet different bottle size.
6. The inserting label ways is particular, i.e. inserting label, it is reasonable and convenient.
7. Full automatic feeder, the flat shrinking and tension are adjusted together.
8. It is assured to low error that there is inspection of rolling label cut.
9. Particular blade design, blade base can be change by free, changing blade quickly and conveniently.
10. It is easy to change the central clamping device without any tools.
11. Oriental rolling label device can be lifting synchronal.

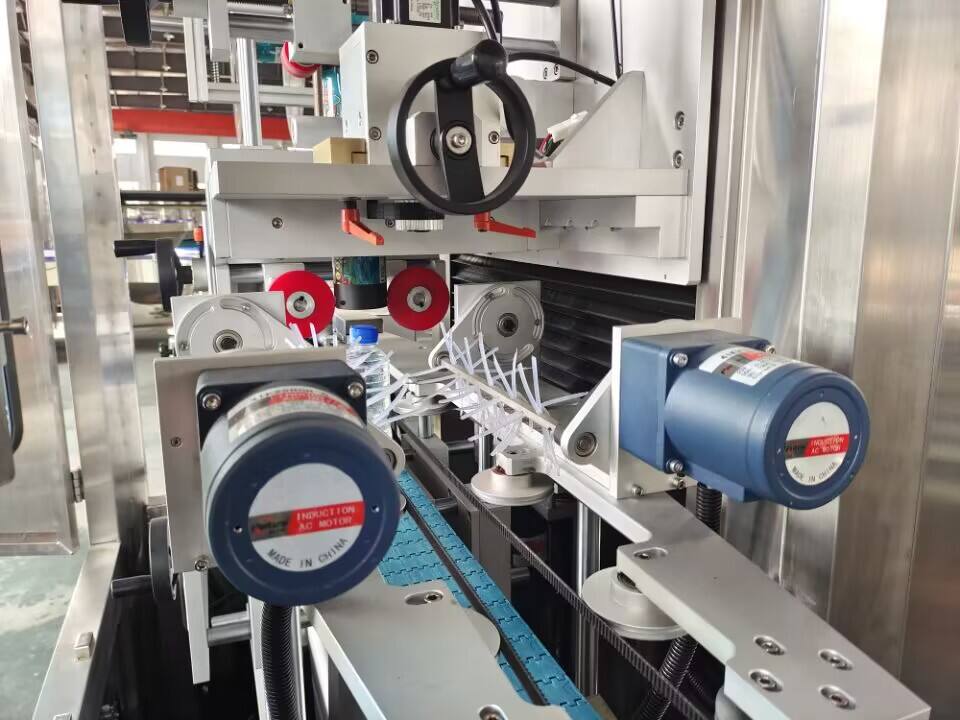

12. The separating bottle screw, oriental belt and conveyor are adjusted synchronal.
13. Adopting ANCHUAN servo motor made in JAPAN and sensitive photo electricity, to insure the precision of cutting label.
14. Stainless steel electric controller, adopting Mitsubishi PLC made in Japan.
15. Adopting advanced man-machine automatic controlling technology, main component adopts famous brand.
|
Model |
SPC-150 |
|
Main engine size(mm) |
2000*1000*2000 |
|
Production rate(limitation:b/min) |
150 |
|
Main engine power(KW) |
2.5 |
|
Shrink power(KW) |
18 |
|
Label length(mm) |
40-180 |
|
Label thickness(mm) |
0.03-0.13 |
|
Label material |
PVP PET PS |
|
Bottle/can height(mm) |
30-280 |
|
Bottle/can diameter(mm) |
50-125 |
|
Round, square, elliptic rectangular |
Round, square, elliptic rectangular |
1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
2. Do you have any technical supports with your Plastic Bottle Water Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.
